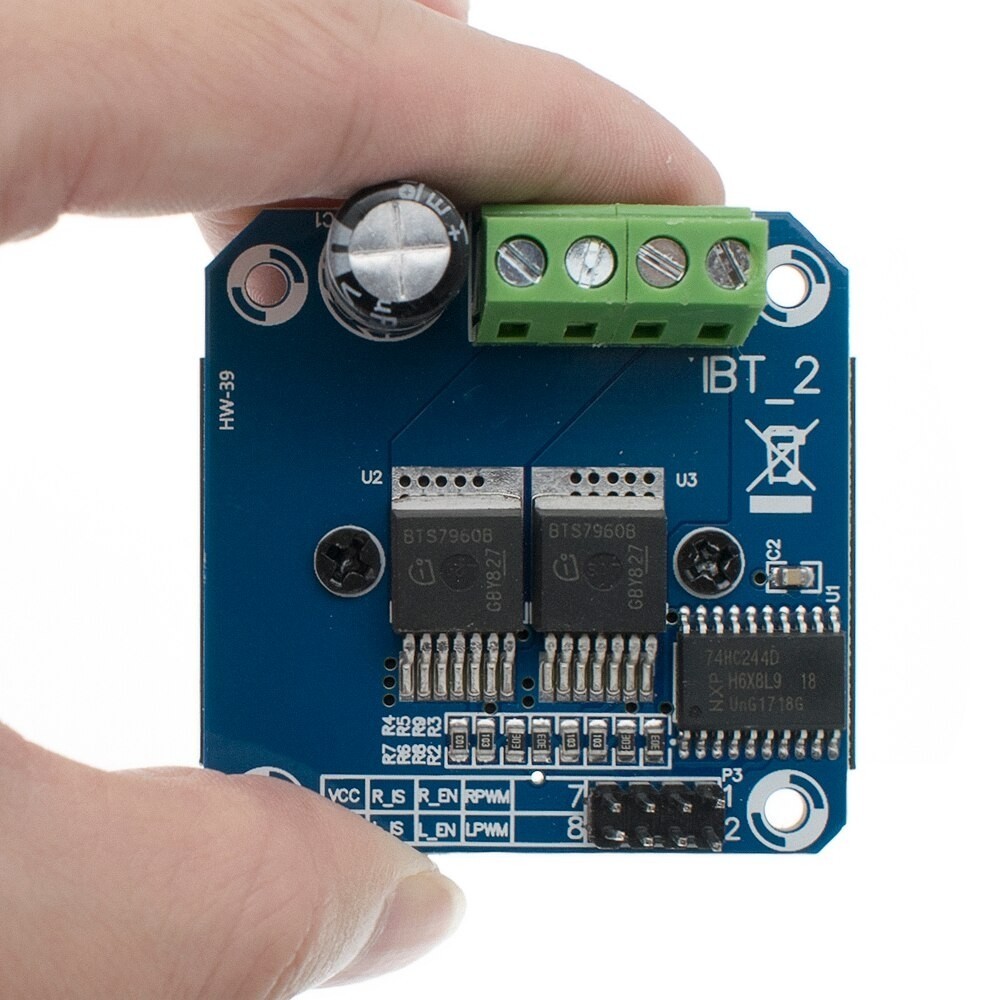

BTS7960B H - bridge, and a high - power motor driver Module Overview:
This driver USES Infineon chips BTS7960 composed of high - power drive full H - bridge driver module with thermal over - current protection, the Double BTS7960 H - bridge, driver circuit, with a strong drive and style, effectively isolating the microcontroller and motor driver!43 a High - current
The Features:
Double BTS7960 large current (A) 43 H bridge driver;
5 v isolate with MCU, and effectively protect the MCU;
5 v power indicator on board;
Voltage indication of motor driver output end;
Can solder heat sink;


Just need four lines from MCU to driver module (GND. 5 v. The PWM1. PWM2);
The isolation chip 5 V power supply (can share with MCU 5 V).
Size: 4 * 5 * 1.2 cm;
Able to reverse the motor forward, two PWM input frequency up to 25 KHZ.
Two heat flow passing through the an error signal output;
Isolated chip 5 v power supply (can be Shared with the MCU 5 v), can also use the on - board 5 v supply;
The supply voltage of 5.5 V to 27 V.

Package list:
BTS7960B motor driver X 1
Sch, PID program sent by Email
