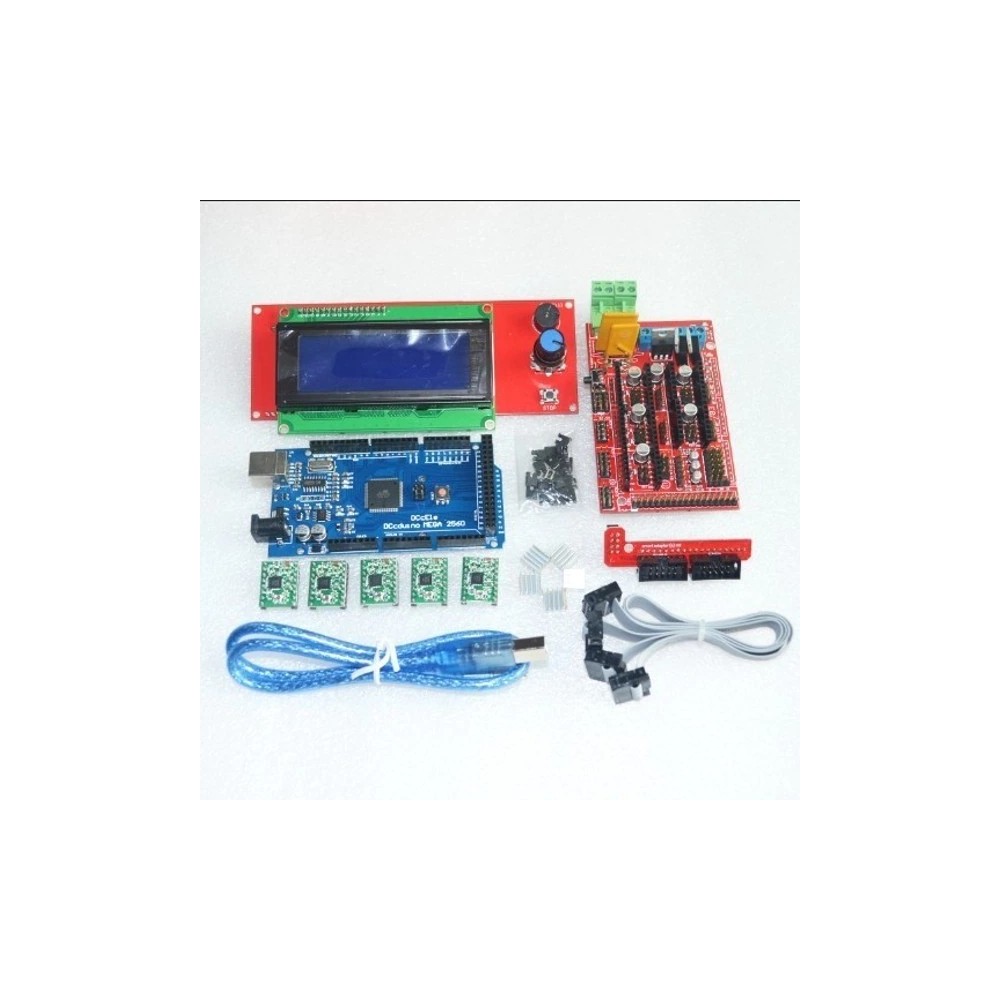

1db Mega 2560 R3 1db RAMPS 1.4 vezérlő 5db A4988 Stepper meghajtó modul /RAMPS 1.4 2004 LCD vezérlő 3D nyomtató készlethez
1pcs Mega 2560 R3 1pcs RAMPS 1.4 Controller 5pcs A4988 Stepper Driver Module /RAMPS 1.4 2004 LCD control for 3D Printer kit
It is relatively simple to wire up the RAMPS. Just add the extruder heating coil wire to D10, the thermistor to the two T0 pins on middle right right, and wire up the steppers and endstops. From left to right, wire all of the stepper motor's wires as red, blue, green, and black or red, green, yellow, blue into the pins next to the Pololus. When you connect the wires to the endstops (if you are using 3 endstops, plug them into the MIN (-) slots), make sure you match the labels.

4000121154116 - simplerob
