4db 50kg-os testterhelési cella súlymérő érzékelő ellenállás húzódás félhíd érzékelő 34x34mm
4pcs 50kg Body Load Cell Weighing Sensor Resistance Strain Half-bridge Sensor 34x34mm

Specification:
Brand new
Size: approx.34*34mm
Widely used in weight scales.
When measuring, the correct force is applied to the outer side of the strain E-shaped beam portion of the sensor (i.e., a strain gauge affixed to the middle, with a beam of white plastic cover arm) and the outside edges to form a shear force in the opposite direction, i.e., in the middle of strain beam bending necessary changes can occur under stress, strain beam side by another force can not have a barrier.
Three methods to use:
Using a sensor with external resistors full bridge measurement range of a sensor range: 50kg. Higher requirements for external resistor.
The use of only two full-bridge sensors measuring range is the range of the two sensors and: 50kg*2 = 100kg.
The use of four full-bridge sensors measuring range is the range of four sensors and: 50kg*4 = 200kg.
Package included:

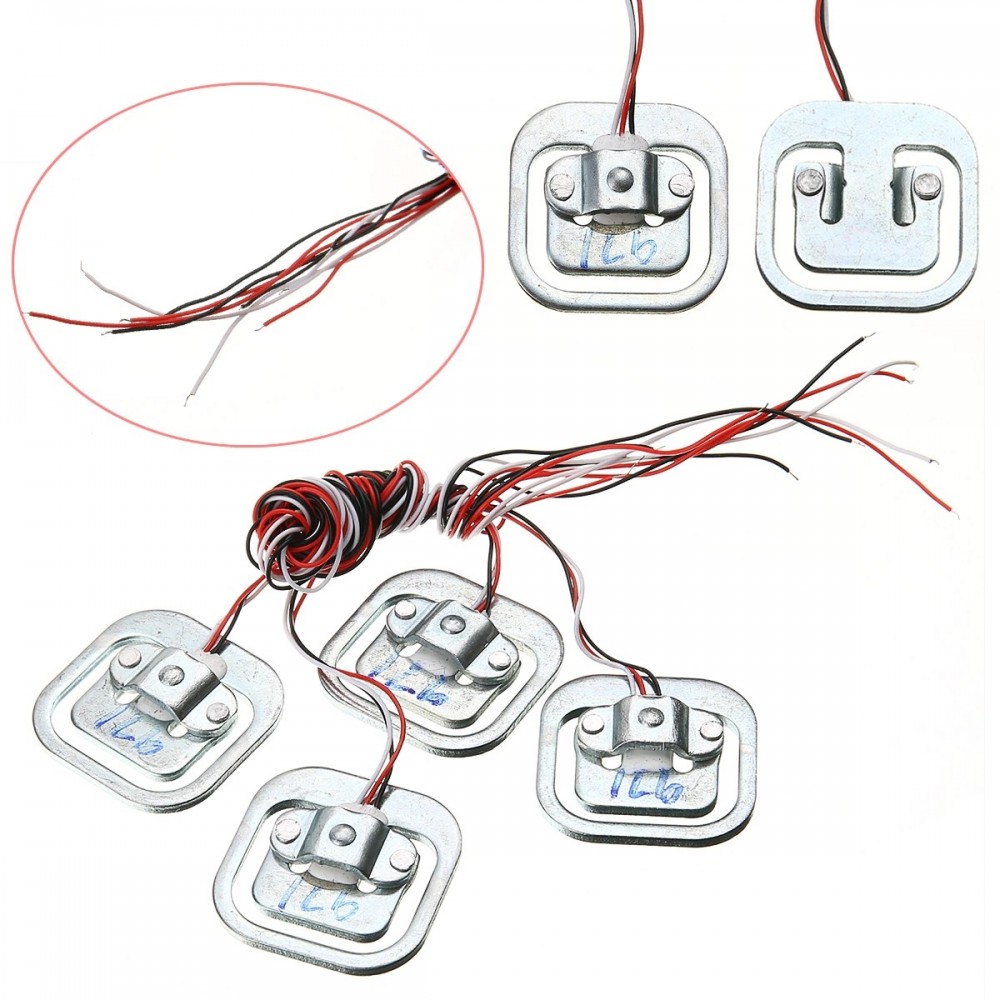

4pcs x body load cell weighing sensor
Note:
Please allow 1-3mm errors due to manual measurement.
Item color displayed in photos may be showing slightly different on your computer monitor since monitors are not calibrated same.
