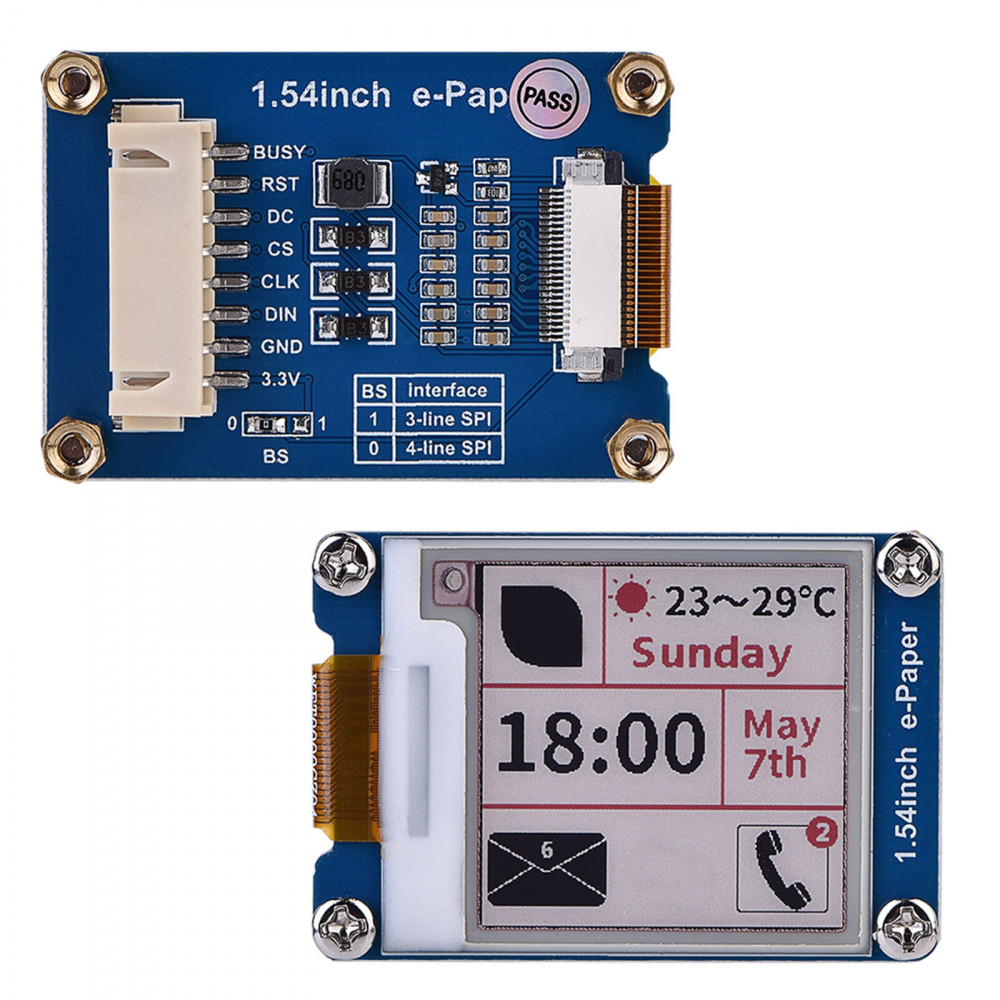

No backlight E-Ink Screen Module E-Ink Display Module for /Nucleo
Description:This E-Ink display module, 1.54inch, 200x200 resolution, with embedded controller, communicating via SPI interface, supports red, , and white three-color display. Due to the advantages like ultra low power consumption, wide viewing angle, great effect under sunlight, it is an choice for applications such as shelf label, industrial instrument, and so on.
Features:
No backlight, keeps displaying last content for a long time even when power down.
Ultra low power consumption, basically power is only required for refreshing.
SPI interface, for connecting with controller boards like /Nucleo, etc.
Comes with development resources and manual (examples for /STM32).
Specifications:Operating voltage: 3.3V
Interface: 3-wire SPI, 4-wire SPI
Outline dimension: 48mm x 33mm / 1.9" x 1.3"
Display size: 27.6mm x 27.6mm / 1.1" x 1.1"
Dot pitch: 0.138 x 0.138
Resolution: 200 x 200
Display color: red, , white
level: 2
power: 26.4mW(typ.)
Standby power: < 0.017mW
Viewing angle: > 170°
Package weight: 30g
Interfaces:VCC: 3.3V
GND: Ground
DIN: SPI MOSI pin
CLK: SPI SCK pin
CS: SPI chip selection, low active
DC: Data/ selection (high for data, low for ): External reset, low active
BUSY: Busy status output, low active
Package List:1 x 1.54inch e-Paper Module (B)
1 x XH2.54 8Pin Cable (20cm / 7.9in)
Note: If you want more tutorials and instructions about this product, please contact us, we will send related information to you.
Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
