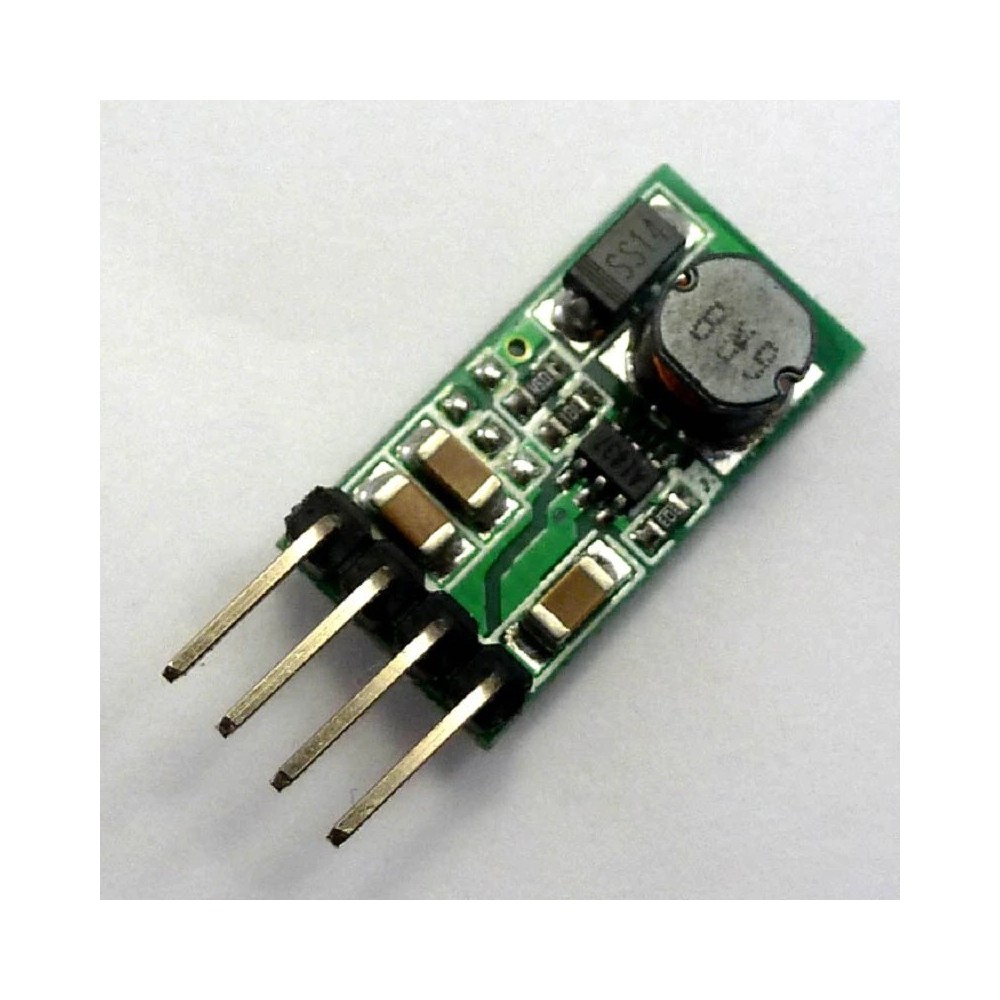

mini DC-DC 1,2A 5V-12V Fokozatos áram mód PWM átalakító DC feszültség inverter

Product Name : mini DC-DC 1.2A 5V to 12V Step-Up Current Mode PWM Converter DC Voltage Inverter

Packing list:
1 PCS 5W 3V-6V TO 12V  Boost Step-UP Voltage Regulator Module



Description:

Input voltage 2.8~6V, output 12V (deviation -5% )
Maximum input current :  1.2A
Long-term work Current : 1A
Conversion efficiency : 80-90%
Start Voltage 2.8V, Output Current 50MA
INPUT 3V 1A;    OUTPUT  12V 220MA
INPUT 3.3V 1A;  OUTPUT  12V 250MA
INPUT 3.7V 1A;  OUTPUT  12V 280MA
INPUT 4.5V 1A;  OUTPUT  12V 340MA
INPUT 5V 1A;    OUTPUT  12V 370MA
INPUT 6V 1A;    OUTPUT  12V 450MA

DC-DC Boost module working frequency 1.0MHZ.
Operating ambient temperature : -40~ 85 Degrees Celsius
2.54mm pin pitch,Arduiuo UNO DUE Breadboard FPGA/CPLD Development Board friendly.
Excluding Pin Size 20.5mm x 10.16mm x 5.6mm(Very small)
Weight : about 1.4g(Very light)
Applications:
MCU Development Board,FPGA/CPLD UNO MEGA2560 DUE 8051 AVR C8051 etc
PLC Modbus RS485
VCR
PDA
LED Lighting
12V Relay board
Wireless communication equipment
315M 433M Wireless remote controller
Attention :
This is a DC-DC voltage converter module,Must be noted when using:
1 Input voltage can not be greater than the maximum input range
2 Output power can not be greater than the maximum load for a long time
3 Input power must be greater than the output power, because the power consumption of the module itself
