DC DC Boost Step UP konverter 1,5 3 V 3,7 V 4,5 V–5 V feszültségszabályozó Tápegység modul 18650 Li-ion akkumulátorhoz


Product Name:   DC DC Boost Step UP Converter 1.5 3V 3.7V 4.5V to 5V Voltage Regulator Power supply Module for 18650 Li-ion battery



Packing list:

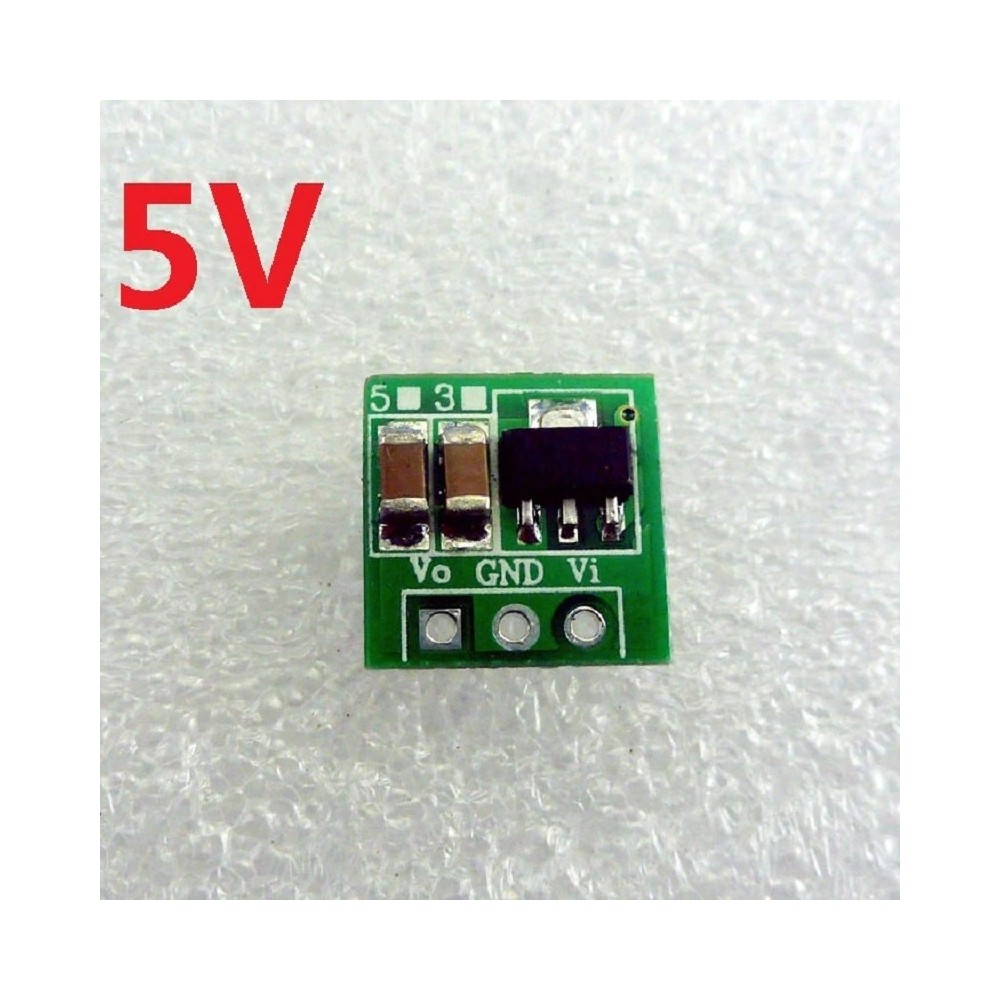

1 PCS 0.9V-5V TO 5V  Boost  Power supply Module


Description:
Input voltage 0.9~ 5V,output 5V
Maximum output current: 480 MA,

Start Voltage 0.8V, Output Current 7MA

INPUT 1-1.5V,     OUTPUT 5V 40-100MA;
INPUT 1.5-2V,      OUTPUT 5V 100-150MA;
INPUT 2-3V,         OUTPUT 5V 150-380MA;
INPUT above 3V,  OUTPUT 5V 380-480MA;

DC-DC Boost module working frequency 150KHZ. efficiency <85% (Recommended high efficiency version).
2.54mm pin pitch.
Excluding Pin Size 11mm x 10.5mm x 7.5mm(Very small).
Weight : about 1g( Very light)
Applications:

Battery powered equipment
Wireless Module,NRF24L01 CC1101 CC2500 etc.
Development Board,FPGA/CPLD UNO MEGA2560 PRO MINI 8051 C8051 AVR STC etc
Camera, Video camera
VCR
PDA
LED Lighting
Wireless communication equipment
MP3/MP4 player
Audio equipment
Attention :

This is a DC-DC voltage converter module,Must be noted when using:
1 Input voltage can not be greater than the maximum input range
2 Output power can not be greater than the maximum load for a long time
3 Input power must be greater than the output power, because the power consumption of the module itself



Q & A:
Q : Why output voltage is less than the nominal voltage
A : Input power supply power is too low.Test the input voltage with a multimeter, a t this time of the input voltage is very low
