DC 5V 9V 12V 24V 4CH Bluetooth-kompatibilis relé Android app Vezeték nélküli távirányító Smart Home Motor LED autós hozzáféréshez
DC 5V 9V 12V 24V 4CH Bluetooth-compatible Relay Android app Wireless Remote Controller for Smart Home Motor LED Car Access


Typical applications:



Home lighting system

Remote control switch

Remote locking

Garage door remote control

Smart Home / Home Automation

DC 5-24V LED lighting

Fluorescent lamp

AC DC Motor

Fluorescent lamp

Automotive electronics

Industrial automation and control

Access Control System

Security Monitoring






1 DC 6-25V control circuit,Wiring diagram below. ''LOAD'' may be LED lights, fans, motors and
other DC 6-25V equipment



2 DC 5V control circuit,Wiring diagram below. ''LOAD'' may be LED lights, fans, toy car and
other DC 5V equipment


3 DC 1-100V OR AC 85-265V control circuit,Wiring diagram below. ''LOAD'' may be LED lights, fans, motors and other DC AC equipment









4 All kinds of motor reversing control: DC 1-100V or AC 85-265V DC/AC Motor









Product Name:
DC 5V 9V 12V 24V 4CH Bluetooth Relay Android app Wireless Remote Controller for Smart Home Motor LED Car Access Control System







Package inlcuded:

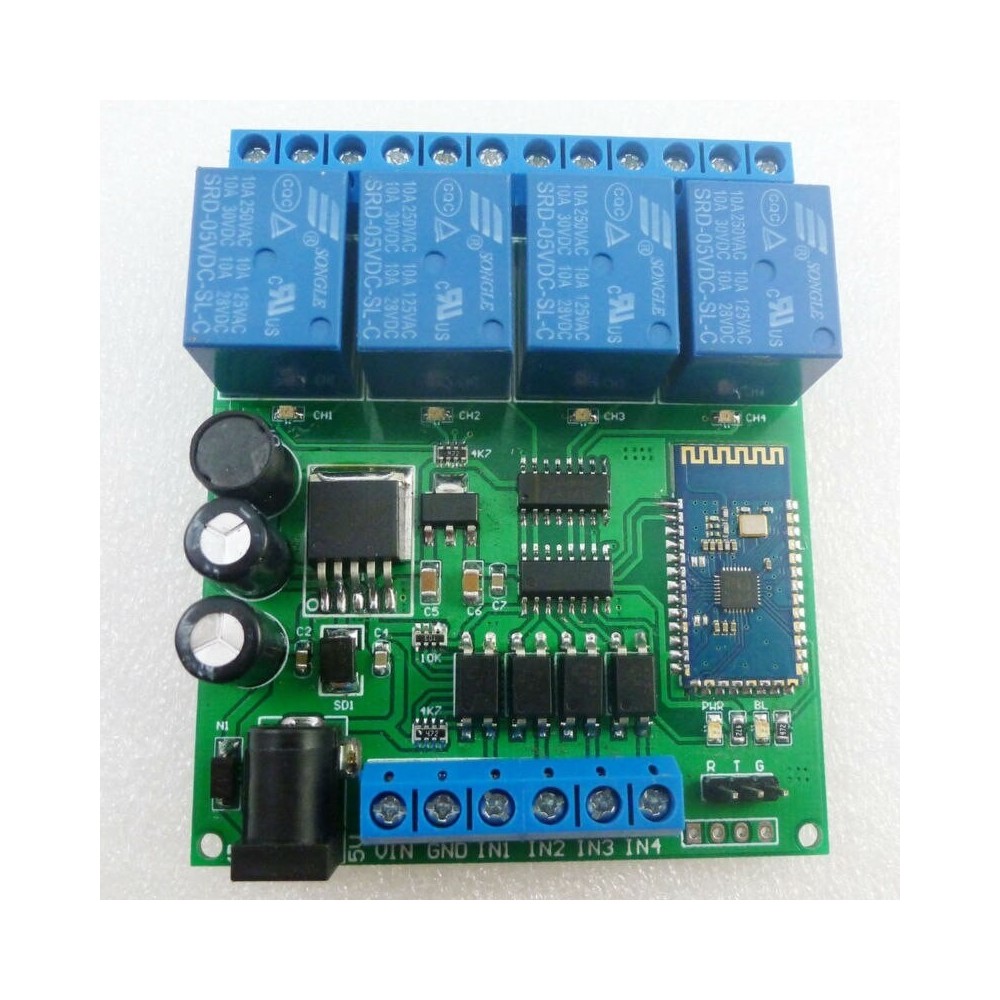

1 pcs DC 5-24V 4 Channel   Android


Bluetooth Relay Module





Description:


1 Operating voltage: power supply 1,DC 6.5-25V; power supply 2,DC 5V



2 Operating Current: Standby current (all relays closed) 13MA, 1 relay open 44MA, 2 relays open 76MA, 3 relays open 107MA, 4 relays open 139MA



3: send commands via Android Bluetooth APP control relay turned on and off (we provide Bluetooth APP, you can also use your own APP to control relays, sending commands to control)



4 ''Momentary'' ''Self-locking'' ''Interlock'' ''open'' ''close'' 5 Commands



5 External trigger input, opto-isolated switch, low pulse inputs.



6
You can modify the Bluetooth name and PIN(Access Password) through AT commands,

For details, see file '' Bluetooth parameter modification''



7 size 80*67*19mm



8 Weight : 73g



NOTE:

Only for Android OS, does not support the Apple OS








For more information, please contact me
