Below item is powered by Canton-Power Ltd .

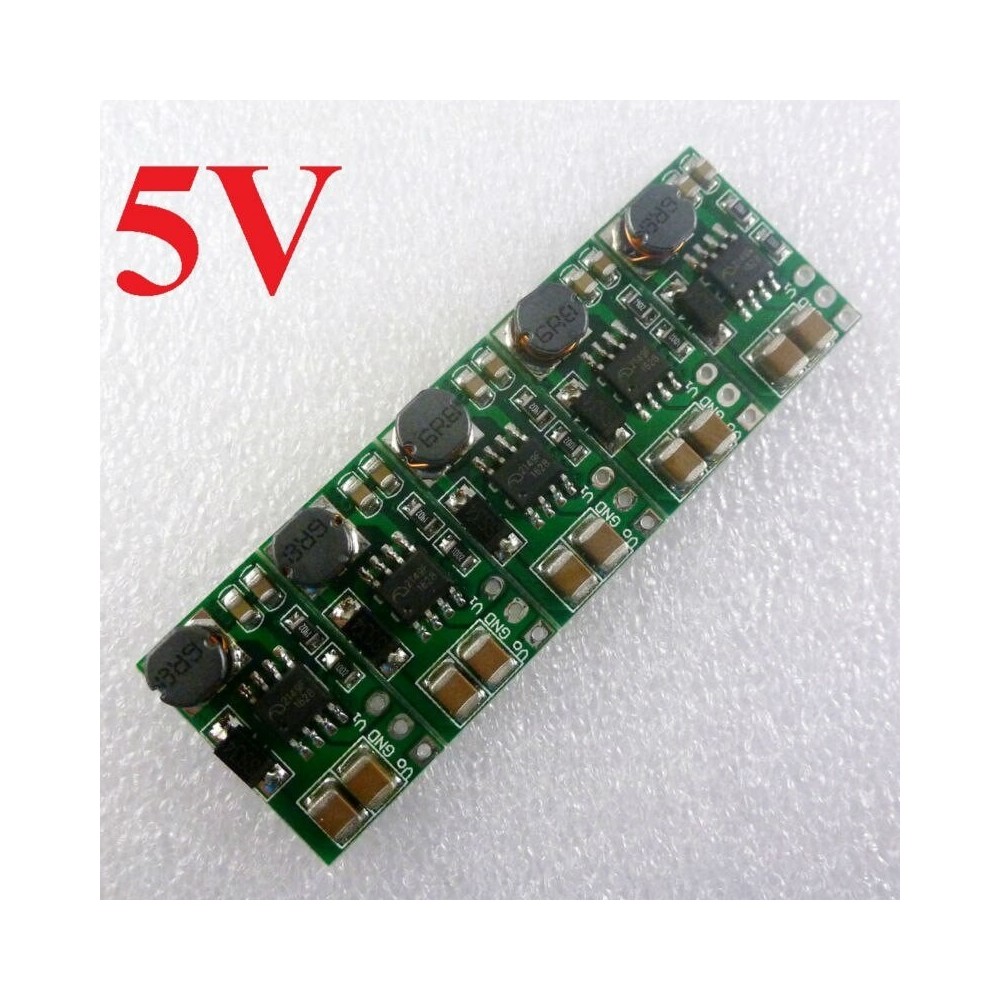

Product Name:   5PCS DD0606SB_5V 1-5V 3.3V 3.7V to 5V DC DC Boost Step up Converter Module Voltage Regulator Board

Packing list:

5 PCS DD0606SB_5V 1V-5V TO 5V DC DC Boost Converter Module


Description:
Input voltage DC 1 ~ 5V, output DC 5V( -5% )

DC DC Boost Converter Module working frequency 1MHZ.efficiency 66% -88% .

Operating temperature range : -25~ 85 Degrees Celsius

Storage temperature range : -45~ 125 Degrees Celsius

2.54mm pin pitch,MCU Development Board Breadboard friendly.

Excluding Pin Size : 21.3mm x 12.5mm x 5.7mm(Very small)

Weight : 1.65g(Very light)



Applications
Battery powered equipment
Breadboard Power Supply
ARM STM32 FPGA CPLD Board
Small power motors
Camera, Video camera
Toy car
power bank
Phone PDA
LED Lighting
Wireless communication equipment
Audio equipment


Attention :

This is a DC-DC voltage converter module,Must be noted when using:
1 Input voltage can not be greater than the maximum input range
2 Output power can not be greater than the maximum load for a long time
3 Input power must be greater than the output power, because the power consumption of the module itself

Q & A:

Q : Why output voltage is less than the nominal voltage
A : Input power supply power is too low.Test the input voltage with a multimeter,a t this time of the input voltage is very low
