30 W DC DC átalakító 3,3 V 3,7 V 5 V 6 V - 9 V Step Up Boost UPS tápegység modul

Product Name: 30W DC DC Converter 3.3V 3.7V 5V 6V to 9V Step Up Boost UPS Power Supply Module



Packing list:
1 pcs Voltage Converter Boost module (input 2.5-6.8V, output 9V ±5 %   ) ;
1 pcs  Plastic shell


Description:
Module Properties: non-isolated step-up BOOST module

Input voltage DC 2.5-6.8V, output DC 9V
Maximum output current: 3.5A
Start Voltage: 1.5V
Input 3.3V           Output Current 9V 0.6A
Input 3.7V           Output Current 9V 1.2A
Input 5V             Output Current 9V 2.5A
Input above 6V   Output Current 9V 3.5A



Conversion Efficiency: 80-90% (Typical)
Operating Temperature:Industrial main chip
Short circuit protection:No.(Please Install fuses or protection circuits at Input port)
Input Reverse Polarity Protection: No.Please Series diode at the input port

Size:50(L)*25(W)*9(H)mm


Note :

This is a DC-DC voltage converter module,Must be noted when using:
1 Input voltage can not be greater than the maximum input range
2 Output power can not be greater than the maximum load for a long time
3 Input power must be greater than the output power, because the power consumption of the module itself

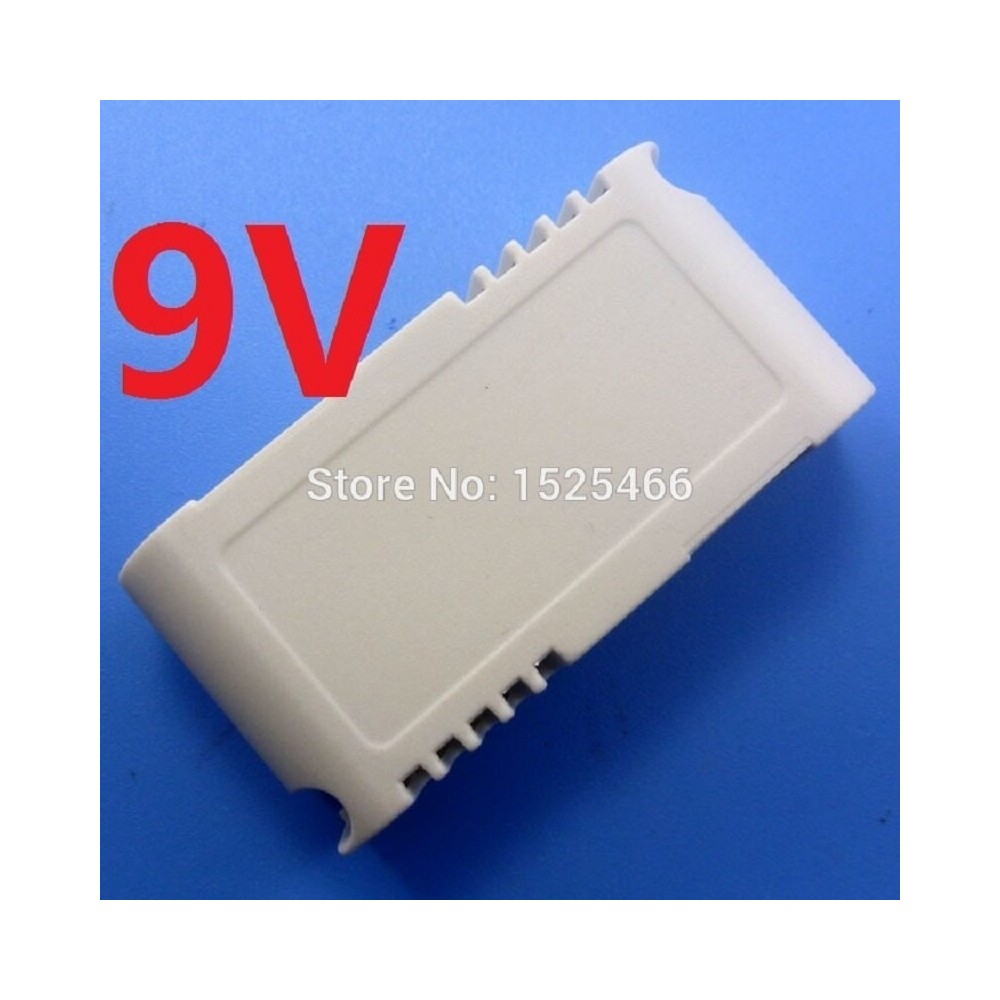

Power supply Plastic shell:
Enclosure Material: PC
Outside diameter : 42 x 40 x 21
Inside diameter  : 39 x 37 x 19

Applications:
Battery powered equipment
Wirel s mouse,Wireless keyboard
Network equipment,Router
Camera,Video camera
VCR
PDA
LED Lighting
Wireless communication equipment
MP3/MP4 player
Audio equipment
LED MOTOR
Wifi Router
