10 W-os töltő- és kisütőkártya DC-DC átalakító, fokozó modul Töltő 4,5-6,5 V Boost-out 9 V Wifi Ethernet router UPS


Product Name:      10W Charger & Discharger Board DC-DC Converter Step-up Module Charge-in 4.5-6.5V Boost-out 9V for Wifi Ethernet router UPS diy


Packing list:

1 PCS DD04CVSB_9V 1.1A 2 in 1 charge and boost modules 9V Output



Description:

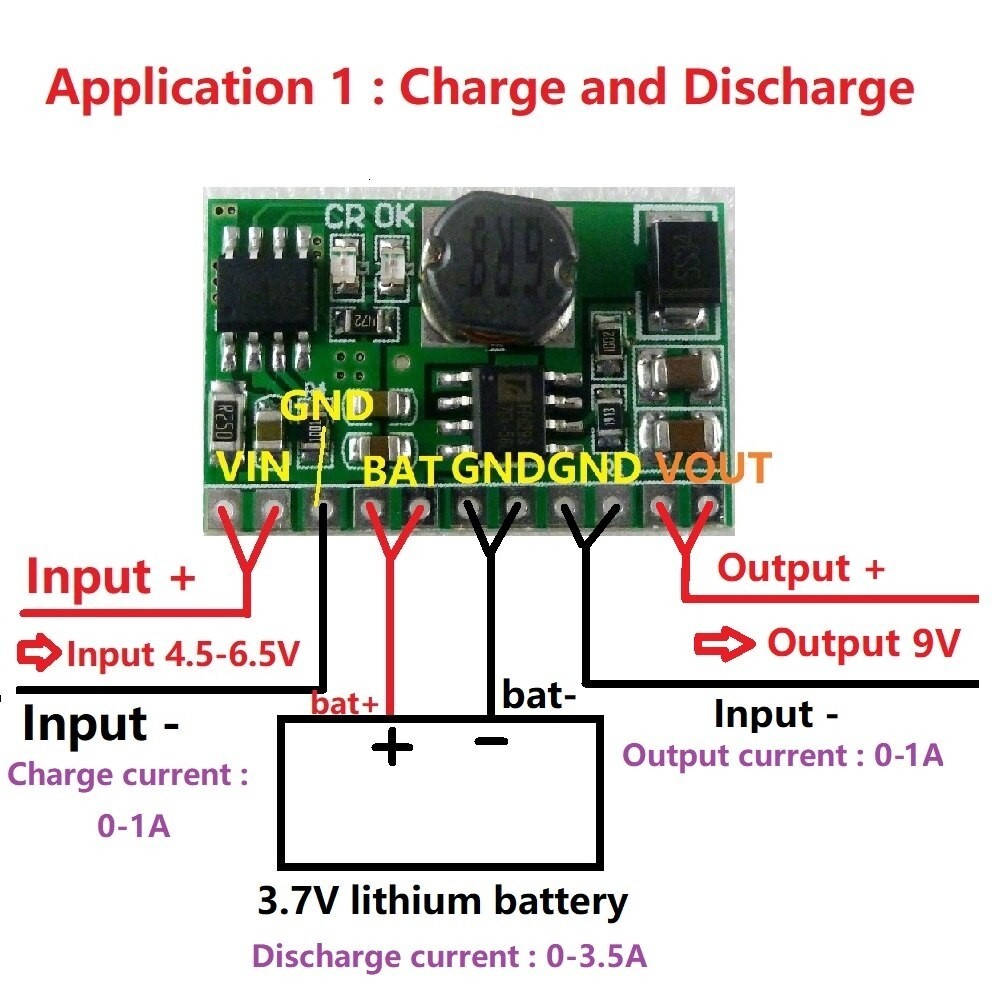

10W charge and Discharger(boost) modules

Charge voltage :  DC 5V (  4.6V-6.5V  )
Charging current : 0-1A
Full charge voltage : 4.2V -2% .
Led indicator : "OK" LED is fully charged OR battery failure status indicator;
                        "CR" LED is charge status indicator

Discharge current : 0-3.5A;
Discharge quiescent current : 200uA
Discharge conversion efficiency : 79% -90%

Output current    : 0-1.1A(9V);

Operating ambient temperature :  -40° to 85°
Storage temperature :  -65° to 125°

Size: 28 x 18 x 6.3mm
Weight : 2.7g

Note :
1 This module without lithium battery over-discharge protection,
Matching protection board Click here to buy

2 In order to achieve more than 5W, Make sure that the lithium battery has sufficient capacity and sufficient output current
Applications:
Battery powered equipment
Lithium Battery 18650 14500
Mobile phone diy
UPS power supply equipment diy
Solar charging
MP3/MP4 player
Audio equipment
Video equipment
Portable Devices
Bluetooth Wifi Applications
Electric toys
WIFI router
