2db 1.2A 5V 6V 9V 12V – 3.3V DC DC konverter Step Down Buck szabályozókártya esp8266 WIFI Bluetooth-kompatibilis Zigbee modulhoz
2pcs1.2A 5V 6V 9V 12V to 3.3V DC DC Converter Step Down Buck Regulator Board for esp8266 WIFI Bluetooth-compatible Zigbee Module

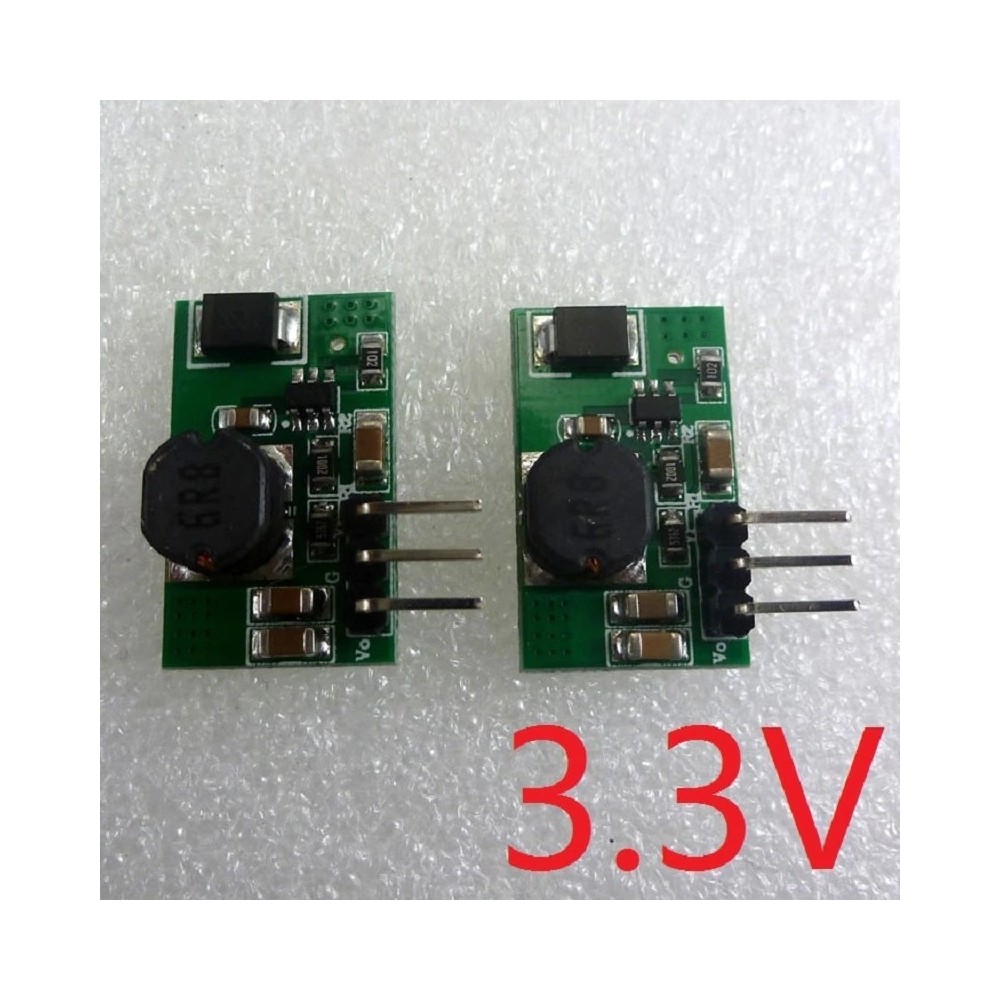

Product Name : 2pcs 1.2A 5V 6V 9V 12V to 3.3V DC DC Converter Step Down Buck Regulator Board for esp8266 WIFI Bluetooth Zigbee Module
Packing list:
2 PCS mini 1200mA DC DC Converter Step Down 5V-23V to 3.3V
Description:
Input voltage 4.75~23V,output 3.3V
Maximum output current 1200mA,Short time maximum output current 2000mA
DC-DC Step-Down Converter module working frequency 1.4MHz. efficiency is 78-92% .
2.54mm pin pitch, Arduiuo Breadboard MCU Development Board friendly
Excluding Pin Size 22.5mm x 13.5mm x 6.5mm( small)
Weight : about 2.2g( Very light)
Applications:
Breadboard PCB
3.3V LED Lighting
3.3V Motor
esp8266
WIFI Bluetooth Zigbee Module
Wireless Module:Nrf24l01 CC1101 CC2500 CC2530 Zigbee
Smart home / home automation
Distributed Power Systems
Battery Charger
Pre-Regulator for Linear Regulators
DSL Modems
Attention :
This is a DC-DC voltage converter module,Must be noted when using:
1 Input voltage can not be greater than the maximum input range
2 Output power can not be greater than the maximum load for a long time
3 Input power must be greater than the output power, because the power consumption of the module itself
