2db dc dc konverter fokozó boost modul 5v-12v Arduino Breadboard Relay LED 315M 433M vezeték nélküli távirányítóhoz

Product Name : 2pcs dc dc converter step up boost module 5v to 12v for Arduino Breadboard Relay LED 315M 433M Wireless remote control

  Packing list:
2pcs dc dc converter step up boost module 5v to 12v


Description:

Input voltage 3~6V, output 12V (deviation -5% )
Maximum input current :  1.2A
Long-term work Current : 1A
Conversion efficiency : 80-90%

Start Voltage 2.8V, Output Current 50MA

INPUT 3V 1A;    OUTPUT  12V 220MA
INPUT 3.3V 1A;  OUTPUT  12V 250MA
INPUT 3.7V 1A;  OUTPUT  12V 280MA
INPUT 4.5V 1A;  OUTPUT  12V 340MA
INPUT 5V 1A;    OUTPUT  12V 370MA
INPUT 6V 1A;    OUTPUT  12V 450MA

DC-DC Boost module working frequency 1.0MHZ.
Operating ambient temperature : -25~ 85 Degrees Celsius

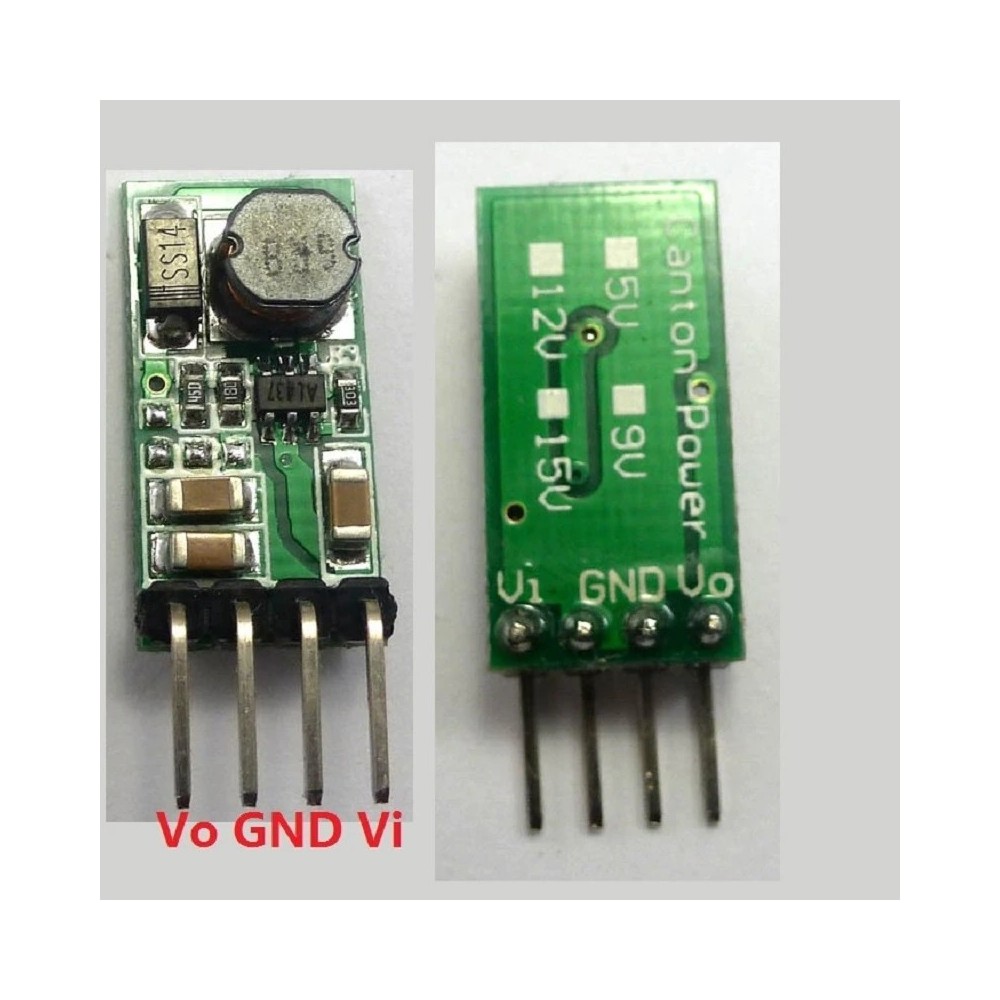

2.54mm pin pitch,Arduiuo UNO MEGA2560 DUE Breadboard FPGA/CPLD AVR  Development Board friendly.

Excluding Pin Size 20.5mm x 10.16mm x 5.6mm(Very small)

Weight : about 1.4g(Very light)

Applications:

12V wifi router
MCU Development Board,FPGA/CPLD UNO MEGA2560 DUE 8051 AVR STM32 etc
PLC Modbus RS485
LED Lighting
12V Relay board
Wireless communication equipment
315M 433M Wireless remote controller

Attention :

This is a DC-DC voltage converter module,Must be noted when using:
1 Input voltage can not be greater than the maximum input range
2 Output power can not be greater than the maximum load for a long time
3 Input power must be greater than the output power, because the power consumption of the module itself
