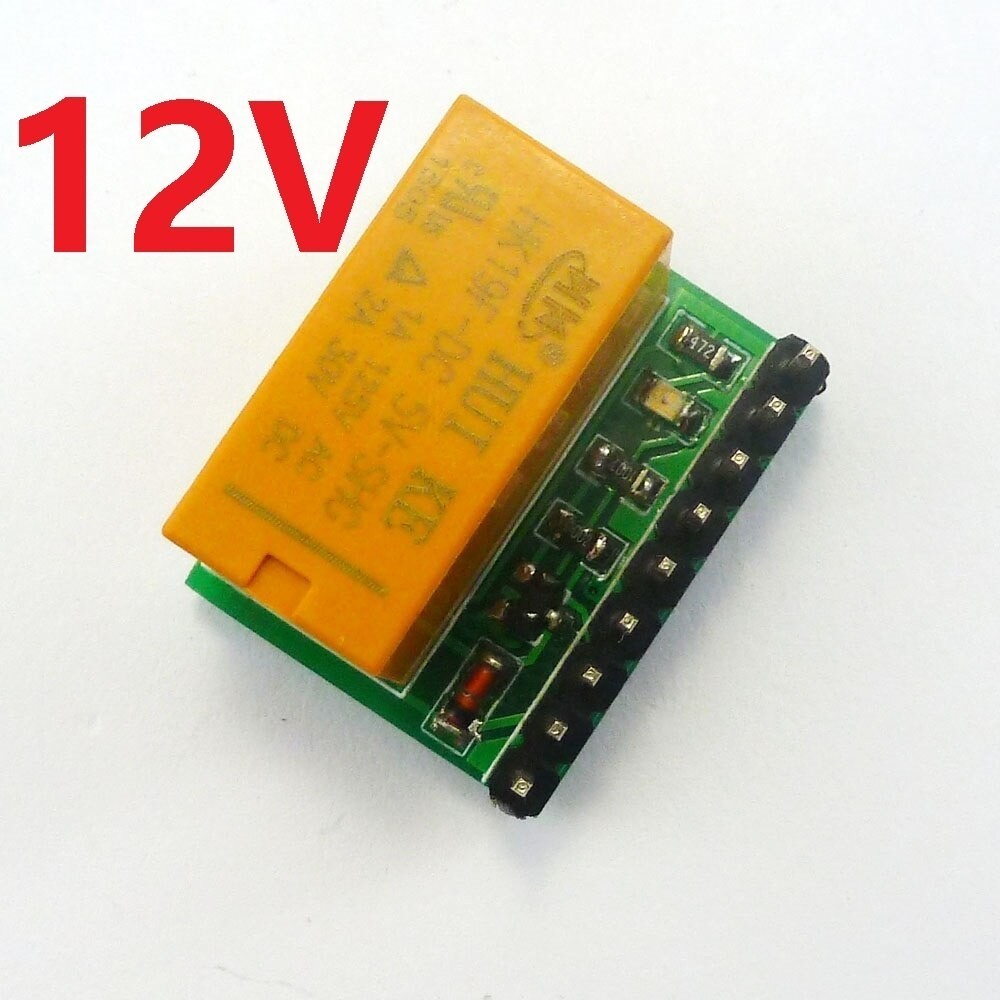

DC 12V DPDT jelrelé kártya kétcsatornás választókapcsoló Modul sztereó audio motorhoz Polaritás megfordító PLC

Typical applications:
Automotive electronics
Audio and video equipment
Motor Polarity reversal
LED
Smart Home
Emergency lighting

Arduiuo uno/mega2560 Code
//******************************************************//

const int DPDT_control = 2;     // the number of the DPDT_control pin

void setup() {

  // initialize the DPDT_control pin as an output:
  pinMode(DPDT_control, OUTPUT);
}

void loop() {

    digitalWrite(DPDT_control, HIGH);//DTDT relay activation

    delay(1000);

    digitalWrite(DPDT_control, LOW);//DTDT relay inactive

    delay(1000);

}
//******************************************************//

Product Name : DC 12V DPDT Signal Relay Board Dual Channel selector switch Module for Stereo Audio Motor Polarity reversal PLC

Packing list:

1 PCS DR21C01 1 Channel DC 12V DPDT Relay Module


Description:

DR21C01 12VDC 1 Channel DPDT Relay Board

Operating Voltage : DC 12V
Operating Current(Relay ON): 15MA
Standby Current(Relay OFF) : <1MA

Input control signal voltage:
                     0V - 0.6V Low stage (relay is OFF),
                     0.6V – 2.4V (unknown state).
                     2.4V - 24V High state (relay is ON).
Input control signal high state current:
                     2.4V: 0.15mA
                     5V: 0.4mA
                     12V: 1.2mA
                     20V: 2mA

Relay Load : 1A 125VAC;2A 30VDC


Size   : 22.86x18x14
Weight :7g



Schematic:
