2,5A állandó áramú és állandó feszültségű modul DC-DC Buck átalakító 8-32V-ról 2-30V-ra LED-motor-meghajtóhoz

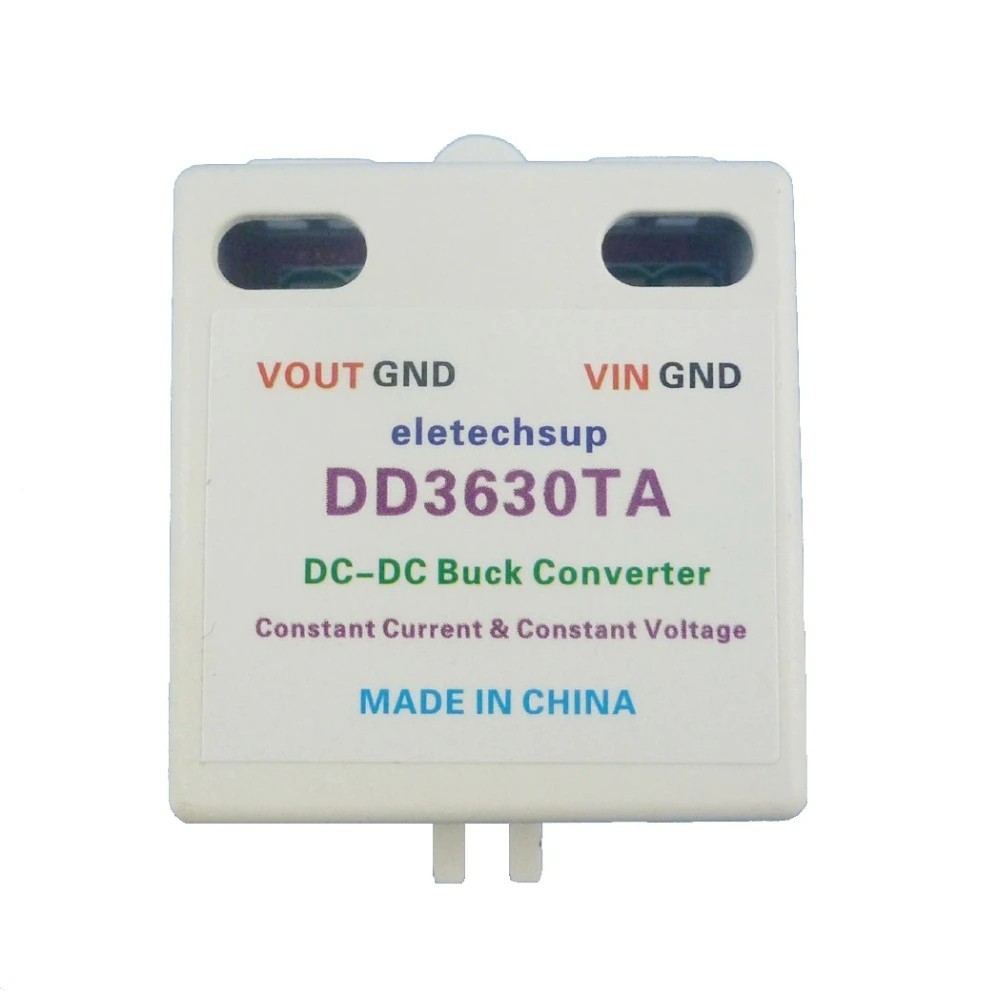

Product Name :  2.5A Constant current & Constant voltage Module DC-DC Buck Converter 8-32V to 2-30V for LED Motor Driver

Packing list:

1 PCS  2.5A DC-DC  Constant current & Constant voltage Module



Description:

Input voltage DC 8~32V,Output Voltage  DC 2~30V adjustable;

Constant current adjustable: 0.2-2.5A

Maximum output current 2.5A(Maximum output power 15W)

DC-DC Step-Down Converter module,Constant current and constant voltage output.

Quiescent current: about 2.1mA

Overtemperature shutdown, Under-Voltage Lockout (UVLO), and short circuit protection.

Operating Temperature :–40°C to 85°C

Module Size : 33mm x 33mm x 14mm
Shell Size : 40mm x 40mm x 20mm

Module Weight ： 9g
Shell  Weight ： 10g

Adjustable resistance description:

V_adj : Adjustable voltage output DC 2-30V(Input Voltgae > Output Voltage),
            Increase voltage clockwise and reduce voltage counterclockwise.

C_adj : Adjustable current output 0.2-2.5A(Input Power > Output Power),
            Increase current clockwise and reduce current counterclockwise.




Attention :

This is a DC-DC voltage converter module,Must be noted when using:
1 Input voltage can not be greater than the maximum input range
2 Output power can not be greater than the maximum load for a long time
3 Input power must be greater than the output power, because the power consumption of the module itself


Applications:

MCU ARM STM32 CPU FPGA/CPLD
CCTV camera
Wireless Module:Nrf24l01 CC1101 CC2500 CC2530 Zigbee
Smart home / home automation
Distributed Power Systems
Battery Charger
Pre-Regulator for Linear Regulators
Relay/Motor drive
LED drive


Typical application 1: Normal load(LED/Charger/Networking Equipment etc.)

Typical application 2: Inductive load(Motor/Relay etc.)
