&quot Kicsi és könnyű&quot DC/DC 0,8-5V - DC 5V Step UP Boost Voltage Converter tápegység modul DC-DC in 1.5V 2.5V 3V 3.3V

Product Name:  "Small and light" DC/DC 0.8-5V to DC 5V Step UP Boost Voltage Converter Power Supply Module DC-DC in 1.5V 2.5V 3V 3.3V 3.7V 4.5V



Packing list:

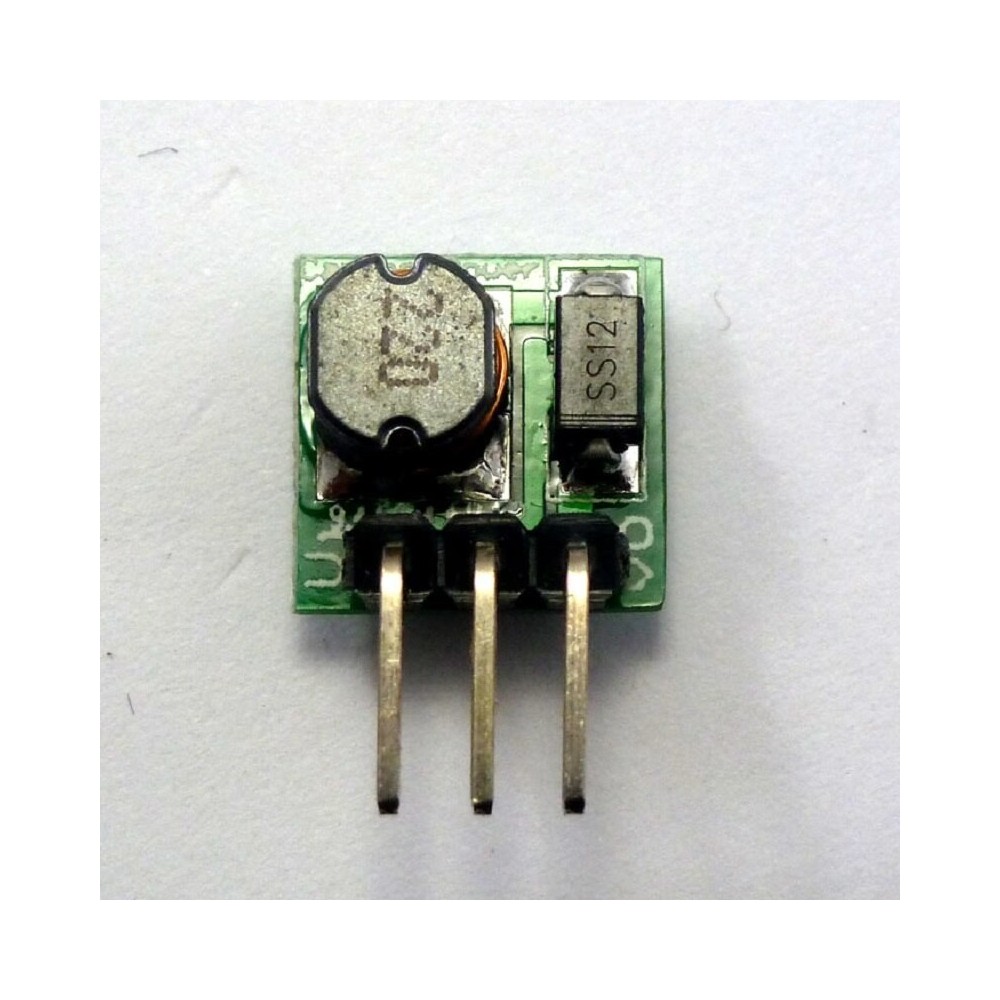

1 PCS 0.9V-5V TO 5V Step-UP  PFM Voltage Converter Module



Description:
Input voltage 0.9 ~ 5V, output 5V
Maximum output current: 500 MA,

Start Voltage 0.9V, Output Current 10MA

INPUT 1-1.5V,      OUTPUT 5V 50-110MA;
INPUT 1.5-2V,      OUTPUT 5V 110-160MA;
INPUT 2-3V,         OUTPUT 5V 160-400MA;
INPUT above 3V,  OUTPUT 5V 400-500MA;

DC-DC Boost module working frequency 180KHZ. efficiency <85% (Recommended high efficiency version).
Operating ambient temperature : -25~ 85 Degrees Celsius
Excluding Pin Size 11mm x 10.5mm x 7.5mm(Very small), 2.54mm pin pitch

 Applications:
Battery powered equipment
Wirels Module,NRF24L01 CC1101 CC2500 etc.
Development Board,FPGA/CPLD UNO MEGA2560 DUE 8051 AVR STC etc
Camera, Video camera
VCR
PDA
LED Lighting
Wireless communication equipment
MP3/MP4 player
Audio equipment

Attention :

This is a DC-DC voltage converter module,Must be noted when using:
1 Input voltage can not be greater than the maximum input range
2 Output power can not be greater than the maximum load for a long time
3 Input power must be greater than the output power, because the power consumption of the module itself
