OPEN-SMART Rich Sensor Module Kit C Atmega328P kártyával MP3 RTC NTC LCD IR hőmérséklet-érintő modul, Arduino kompatibilis
OPEN-SMART Rich Sensor Module Kit C with Atmega328P Board MP3 RTC NTC LCD IR Temperature Touch Module Compatible for Arduino
NOTE: You can go to our google drive to watch the video and download the documents.
This is a rich multifunctional kit compatible for Arduino.

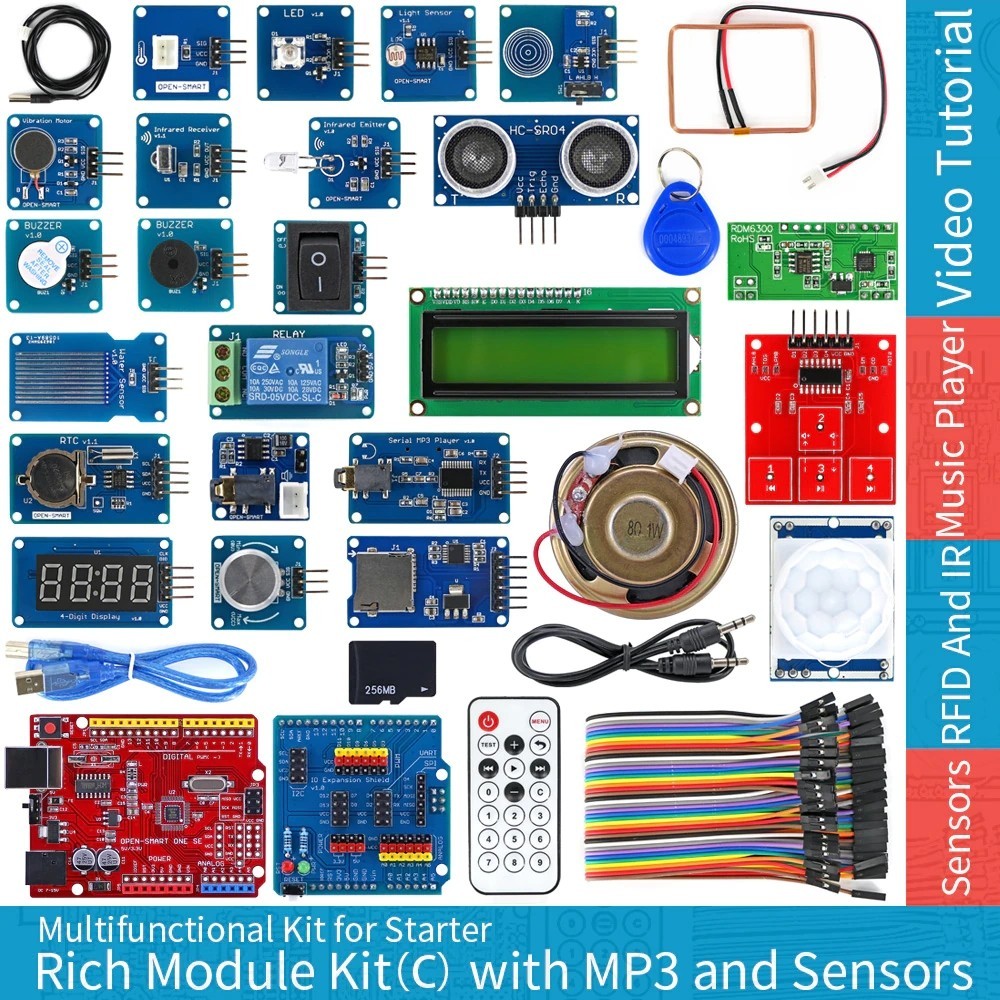

The kit include a Rich OPEN-SMART board and 9 sensor module, 3 display module and other accessories.
You can use the kit to do many projects such as Speak Clock / Speak Temperature / Clock display / Infrared Remote Control / Touch Control MP3 / MP3 Player / Ultrasonic Distance Measurement.
Features:
- Use the compatible bootloader.
- The program, expansion shields, IDE is compatible for Arduino.
- Peripheral modules are rich in type, rich library, simple sketch codes, easy functions to use.
- Use through hole mount type B USB connector, consistent for Board, ruggedness and long service life.
- You can burn the program with the type A male to type B male cable.
- Onboard 500mA resettable fuse to protect power supply from the USB port and the DC jack at the same time.
- USB interface driver chip: CH340G, compatible with win7, win8, linux, MAC OS.
- Microcontroller: Atmel ATmega328P
- Working voltage: 5V
- IO logic voltage: 5V
- Working current: 500mA (Max)
- Digital I/O Pins: 14 (of which 6 provide PWM output)
- Flash Memory: 32 KB of which 2 KB used by bootloader
- SRAM: 2KB
- EEPROM: 1KB
- Clock Speed: 16 MHz.

Please Note That (Note: After you buy the product, the documents can be send, Please contact us)
