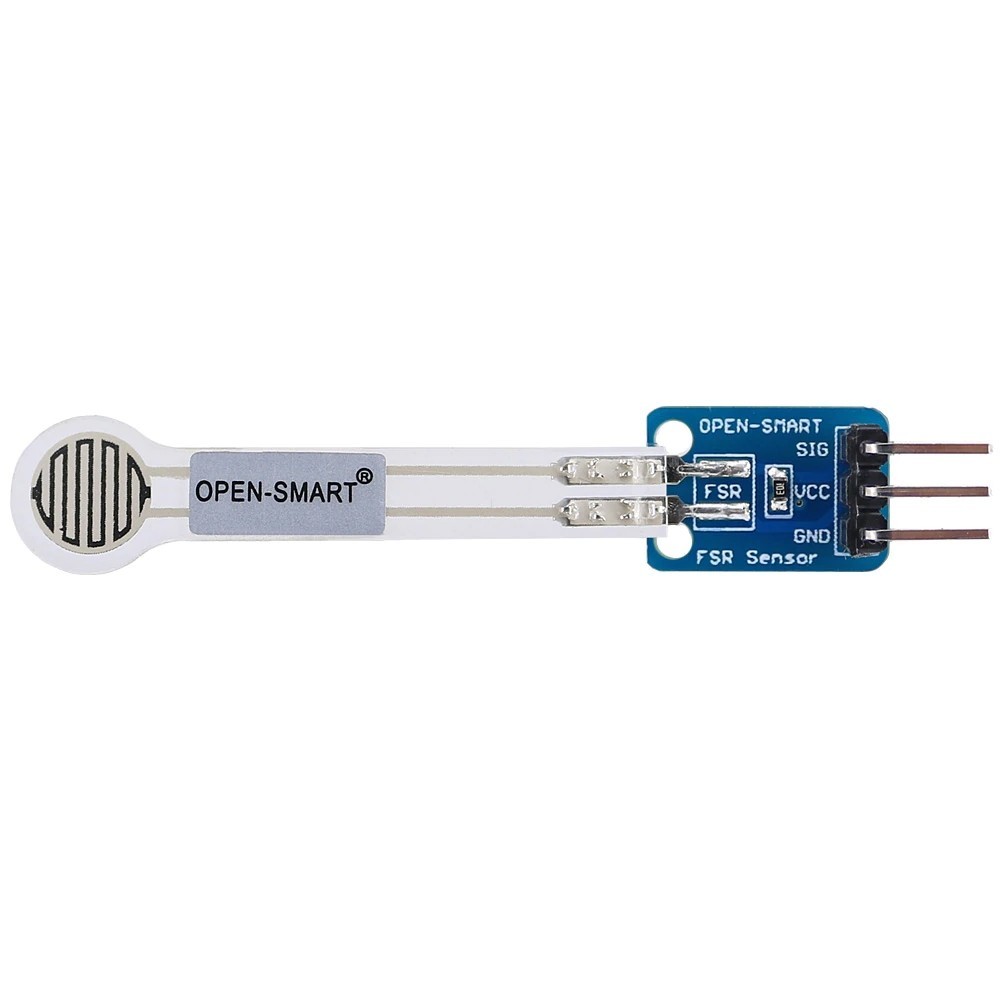

Film Force Sensitive Ellenállás 50N / 5kg FSR érzékelő modul Alacsony költség Könnyen használható Nyomás
Film Force Sensitive Ellenállás 50N / 5kg FSR érzékelő modul Alacsony költség Könnyen használható Nyomás
522 Ft
58,5% megtakarítás
1 258 Ft
Nincs adó
Description
FSRs are basically a resistor that changes its resistive value (in ohms Ω) depending on how much it is pressed.
The FSR is made of 2 layers separated by a spacer. The more on presses, the more of those Active Element dots touch the semiconductor and that makes the resistance go down.
FSR sensor module consists of thin film pressure resistor and 10k ohm resistor in series, the greater the pressure in the sensing area, the higher the output voltage. Even if you touch it the with your fingers, the output will change and induction is very sensitive.
Features:
- Working Voltage VCC: 5.5 VDC(MAX)
- Working Current: 1 mA(MAX)
- Pressure Scale: 0-50N
- Response time: < 10ms
- Recovery Time: < 40ms
- Sensing area diameter: 9mm
- Total length of the FSR resistor: 40mm
Photos
Part List (Schematics and program can be sent ,Please contact us)
1 x Module
Please Note That (Note: After you buy the product, the documents can be send, Please contact us)
FSRs are basically a resistor that changes its resistive value (in ohms Ω) depending on how much it is pressed.
The FSR is made of 2 layers separated by a spacer. The more on presses, the more of those Active Element dots touch the semiconductor and that makes the resistance go down.
FSR sensor module consists of thin film pressure resistor and 10k ohm resistor in series, the greater the pressure in the sensing area, the higher the output voltage. Even if you touch it the with your fingers, the output will change and induction is very sensitive.
Features:
- Working Voltage VCC: 5.5 VDC(MAX)
- Working Current: 1 mA(MAX)
- Pressure Scale: 0-50N
- Response time: < 10ms
- Recovery Time: < 40ms
- Sensing area diameter: 9mm
- Total length of the FSR resistor: 40mm
Photos
Part List (Schematics and program can be sent ,Please contact us)
1 x Module
Please Note That (Note: After you buy the product, the documents can be send, Please contact us)
