600 mA-es L293DD kettős motoros meghajtó modul Smart Car Kit teljes áthidaló meghajtóhoz Arduino-hoz
600mA L293DD Dual Motor Driver Module for Smart Car Kit Full-bridge Driver for Arduino
Description
The motor driver can control up to two DC motors at a constant current of 600mAh (1.2A peak). Two input signals (IN1 and IN2) can be used to control the motor in one of four function modes - CW, CCW, short-brake, and stop.
The two motor outputs (A and B) can be separately controlled, the speed of each motor is controlled via a PWM input signal with a frequency up to 5KHz.
The motor and the external power supply interfaces use the XH2.54-2P socket instead of the traditional green screw terminal, easy to use, and you can avoid screwing.
Note: However, when using the board at currents up to 0.6A, it may be necessary to improve thermal performance with a heat-sink.
Features:
- Driver Chip: L293DD
- Power supply voltage: VM=30V max
- Logic voltage: VCC=4.5-30V
- Output current: Iout=0.6A(average) / 1.2A (peak)
- CW/CCW/short brake/stop motor control modes
- Built-in thermal shutdown circuit and low voltage detecting circuit
- All pins breakout to 2.54mm spaced pins, and it can be plugged onto the breadboard.
- Input connector: pin headers with 2.54mm pitch
- Output connector: XH2.54-2P socket
- Filtering capacitors on both supply lines
- Great for DIY and smart car projects

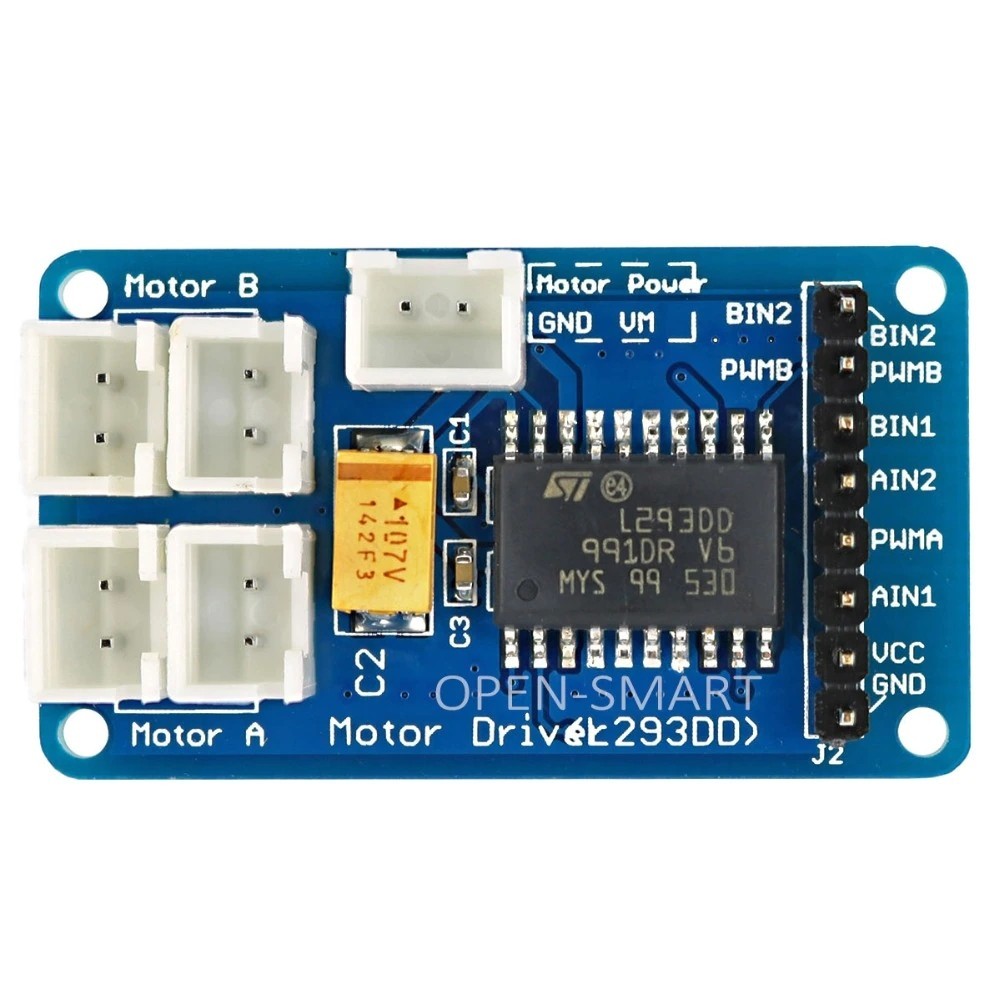

Photos
Part List (Schematics and program can be sent via e-mail,Please contact us)
1 x  Module

Please Note That (Note: After you buy the product, the documents can be send, Please contact us)
