OPEN-SMART 0,96 hüvelykes I2C interfész fehér színű OLED kijelző Breakout Module 128*64 Arduinohoz
OPEN-SMART 0.96 inch I2C Interface White Color OLED Display Breakout Module 128*64 for Arduino
Features

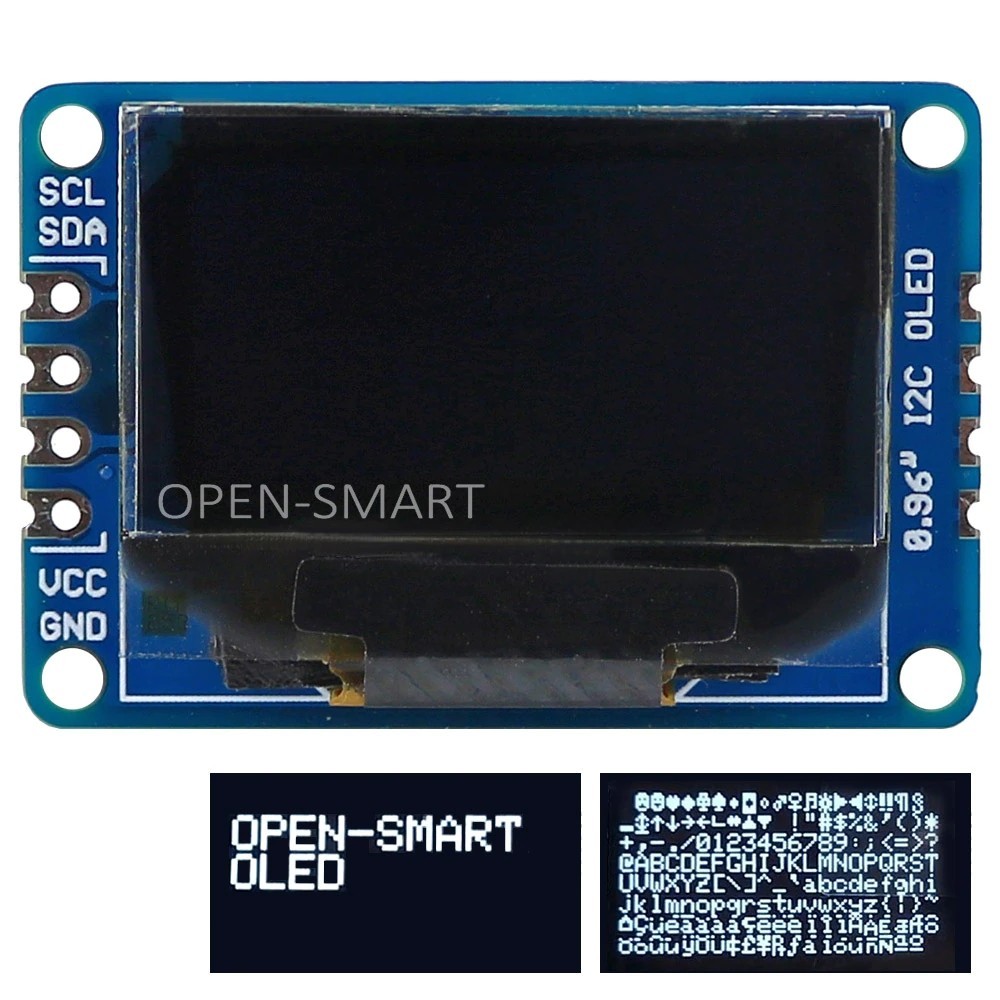

This is an OLED monochrome 128x64 dot matrix display module with I2C Interface. Comparing to LCD, OLED screens are way more competitive, which has a number of advantages such as high brightness, self-emission, high contrast ratio, wide viewing angle, wide temperature range, and low power consumption.
You can solder it onto experiment PCB or your own design PCB easily  with the help of the SMD pins.
Features:
- Can use it directly to display characters, graphics
- Compatibility: Because the logic level is 3.3V 5V compatible, it is compatible for Arduino.
- Interface: I2C
- Logic level: 5V or 3.3V (onboard 3.3V level converter circuit)
- Resolution: 128*64
- Angle of view: >160 degree
- Display color: White
- Display dimension: 0.96inch
- Driver IC: SSD1306
- Operating voltage: 3.2 – 5.5V
- IO Port Package: Both SMD and PAD are available, and the pin pitch is 2.54mm.
- Application: smart watch, MP3, thermometer, instruments, DIY projects, etc.
Photos

Part List (Schematics and program can be sent , Please contact us)
1 x Module

Please Note That (Note: After you buy the product, the documents can be send, Please contact us)
