BK8000L Bluetooth-kompatibilis sztereó audió zenelejátszó modul Audio Jack Breakout kártyával Vevő hangszóró erősítőhöz barkácsolás
BK8000L Bluetooth-compatible Stereo Audio Music Player Module with Audio Jack Breakout board Receiver for Speaker amplifier DIY
Description
This module is specifically designed for Bluetooth-compatible speaker products. Just supply power for the module and plug your speakers headphone cable into the headphone socket onboard so that you can DIY a speaker.
When pairing, you do not need a password to connect to module.
This module also leads out available pins of BK8000L, so you can add a microphone and buttons to make a headset to achieve Bluetooth-compatible call.
AT command functions such as: disconnect, answer calls, reject calls, volume increase, volume reduction, play previous song, play next song, etc.
Features:
- 2.1 EDR compliant.
- A2DP v1.2, AVRCP v1.0 and HFP v1.5 profile.
- Integrated stereo ADC and stereo DAC.
- Operating voltage: 4-12V (onboard 3.3V regulator circuit)
- Operating current: 65mA (max)
- Onboard 3.5mm dual channel headphone jack
- Onboard XH2.54mm-2P interface for power supply
- Name: BK8000L

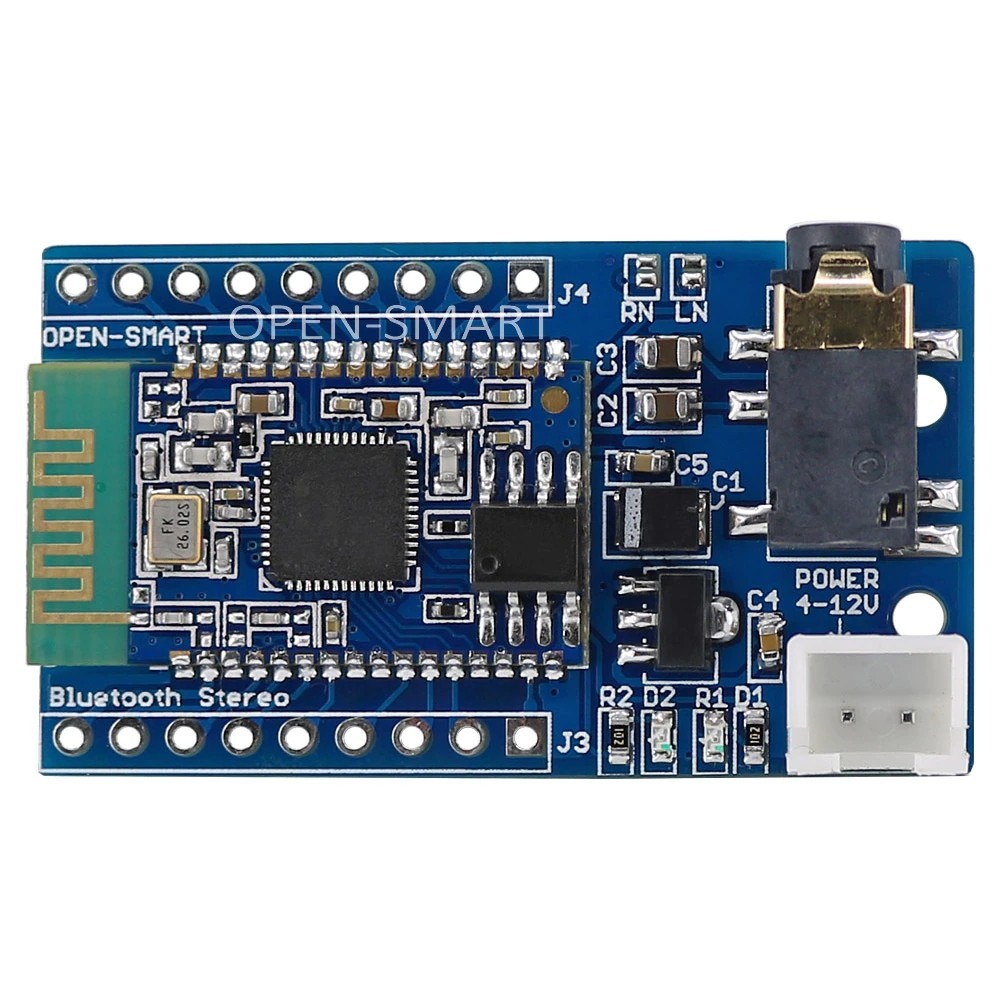

Photos

Part List (Schematics and program can be sent,Please contact us)

1 x Board


Please Note That (Note: After you buy the product, the documents can be send, Please contact us)
