SMD 3 – 12V–12V 0,5A Step-up Boost Converter tápegység modul Power Step-up szabályozó modul barkácsolás kompatibilis Arduino-val
SMD 3 - 12V to 12V 0.5A Step-up Boost Converter Power Supply Module Power Step-up Regulator Module DIY compatible for Arduino
Description
This is a mini DC-DC step-up power module and it output fixed 12V. Using a low temperature drift 0.1% accuracy of the precision resistor, even if the board temperature rise a lot, resistance of the resistor changes less, so it does not affect the output voltage.
The greater the input voltage, the greater the ability to output current.
Can be directly soldered on the surface of experiment PCB board, easy to solder for everyone.
It is compatible for Arduino.
And it is great for smart car, phone charger, portable charger and other items.
 Features:
- Module type: Non-isolated step-up module (boost);
- Pins package: Both SMD and 2.54mm pin headers are available;
- Input voltage: 3V-12VDC
- Output voltage: 12VDC ± 2%
- No-load current: less than 500uA
- Output current: 0.8A(MAX) @input voltage is 5V
- Continuous Current: 0.5A(MAX) @input voltage is 5V
- Conversion efficiency: 90% (MAX)
- Switching frequency: 1.2MHz Typical
- On-board high-capacity X7R capacitors that can enhance the stability.
- Great for DIY projects

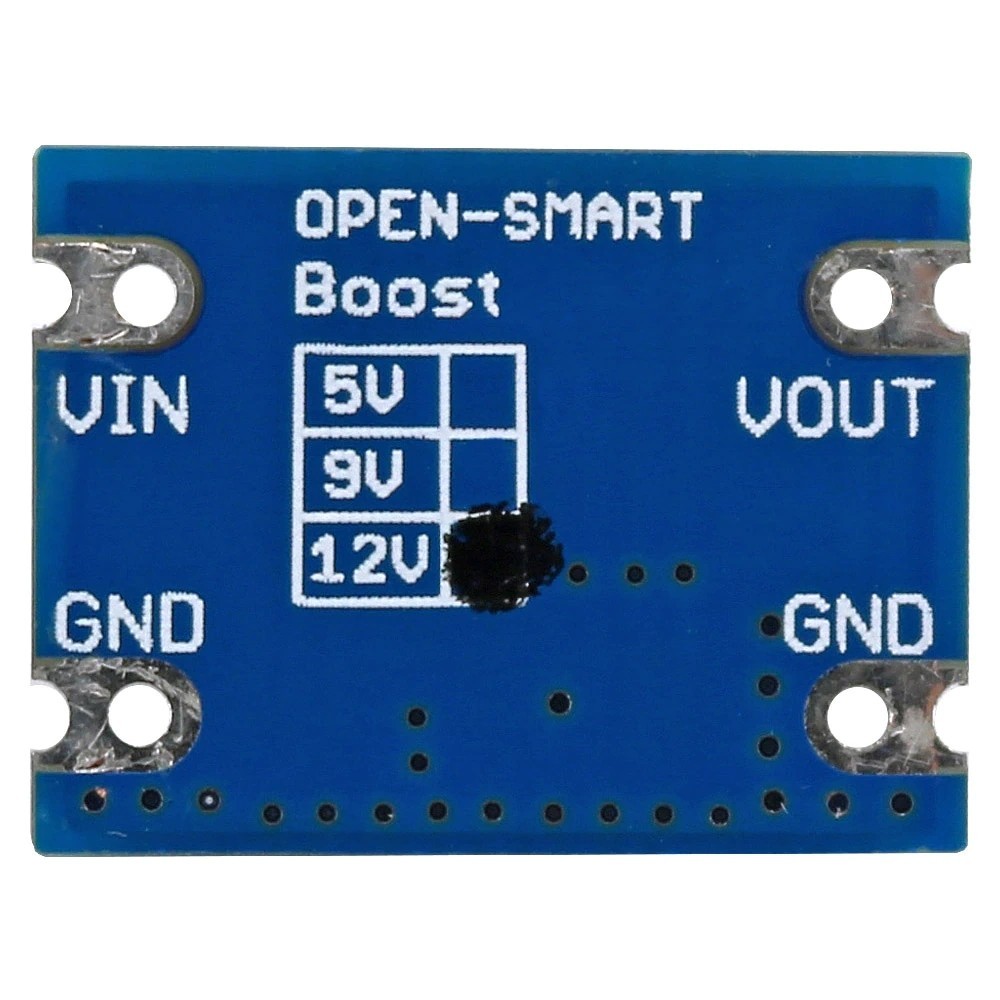

Photos

Part List (Schematics and program can be sent via e-mail,Please contact us)
1 x  Module

Please Note That (Note: After you buy the product, the documents can be send, Please contact us)
