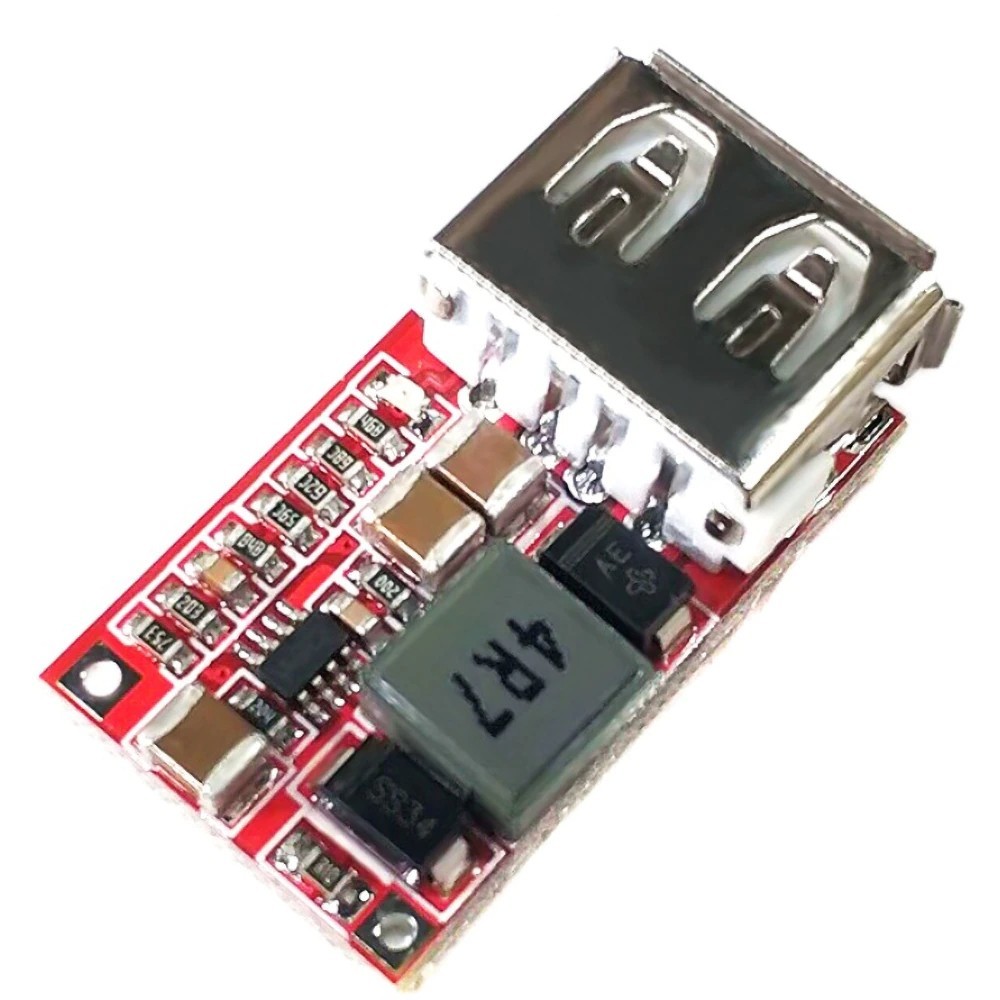

Hatékonyság 97,5% -os DC-DC leépíthető modul 6-24V12V24V – 5V3A autós USB mobiltelefon-töltő
148 Ft40% megtakarítás
247 Ft
Nincs adó
QS-1205CBUL-3A power module Module parameters Module nature: non-isolated step-down module (BUCK) synchronous rectification Input voltage: DC 6-24V Output voltage: 5.1-5.2V (you can choose between 3.3-6V, the default delivery is 5.1V-5.2) Output current: Maximum 3A (please pay attention to heat dissipation at full load), no special heat dissipation is required for the actual test input 12V output within 2A. Conversion efficiency: up to 97.5% (6.5 to 5V 0.7A) (tested value after shorting reverse connection protection and fuse) Switching frequency: 500KHz Output ripple: about 10mV (12V to 5V3A) 20M bandwidth Output indication: the output voltage indicator is red Working temperature: industrial grade (-40℃ to 85℃) (the higher the ambient temperature, the smaller the output power) Output overvoltage protection: Yes, input 1.5A fuse, output 5V, 300W TVS tube clamp protection. Full load temperature rise: 30℃ Quiescent current: 0.85 mA Load regulation rate: ±1% Voltage adjustment rate: ±0.5% Dynamic response speed: 5% 200uS Output short-circuit protection: Yes, please do not short-circuit for a long time Input reverse connection protection: Yes, input has reverse connection protection diode Connection method: welding Input method: welding Output mode: short head crimping USB Size: 26.4(L)*15(W)*7.4(H) mm
Hatékonyság 97,5% -os DC-DC leépíthető modul 6-24V12V24V – 5V3A autós USB mobiltelefon-töltő Efficiency 97.5% DC-DC step-down module 6-24V12V24V to 5V3A car USB mobile phone charger QS-1205CBUL-3A power module Module parameters Module nature: non-isolated step-down module (BUCK) synchronous rectification Input voltage: DC 6-24V Output voltage: 5.1-5.2V (you can choose between 3.3-6V, the default delivery is 5.1V-5.2) Output current: Maximum 3A (please pay attention to heat dissipation at full load), no special heat dissipation is required for the actual test input 12V output within 2A. Conversion efficiency: up to 97.5% (6.5 to 5V 0.7A) (tested value after shorting reverse connection protection and fuse) Switching frequency: 500KHz Output ripple: about 10mV (12V to 5V3A) 20M bandwidth Output indication: the output voltage indicator is red Working temperature: industrial grade (-40℃ to 85℃) (the higher the ambient temperature, the smaller the output power) Output overvoltage protection: Yes, input 1.5A fuse, output 5V, 300W TVS tube clamp protection. Full load temperature rise: 30℃ Quiescent current: 0.85 mA Load regulation rate: ±1% Voltage adjustment rate: ±0.5% Dynamic response speed: 5% 200uS Output short-circuit protection: Yes, please do not short-circuit for a long time Input reverse connection protection: Yes, input has reverse connection protection diode Connection method: welding Input method: welding Output mode: short head crimping USB Size: 26.4(L)*15(W)*7.4(H) mm 1005003542983533 - fullstar
QS-1205CBUL-3A power module Module parameters Module nature: non-isolated step-down module (BUCK) synchronous rectification Input voltage: DC 6-24V Output voltage: 5.1-5.2V (you can choose between 3.3-6V, the default delivery is 5.1V-5.2) Output current: Maximum 3A (please pay attention to heat dissipation at full load), no special heat dissipation is required for the actual test input 12V output within 2A. Conversion efficiency: up to 97.5% (6.5 to 5V 0.7A) (tested value after shorting reverse connection protection and fuse) Switching frequency: 500KHz Output ripple: about 10mV (12V to 5V3A) 20M bandwidth Output indication: the output voltage indicator is red Working temperature: industrial grade (-40℃ to 85℃) (the higher the ambient temperature, the smaller the output power) Output overvoltage protection: Yes, input 1.5A fuse, output 5V, 300W TVS tube clamp protection. Full load temperature rise: 30℃ Quiescent current: 0.85 mA Load regulation rate: ±1% Voltage adjustment rate: ±0.5% Dynamic response speed: 5% 200uS Output short-circuit protection: Yes, please do not short-circuit for a long time Input reverse connection protection: Yes, input has reverse connection protection diode Connection method: welding Input method: welding Output mode: short head crimping USB Size: 26.4(L)*15(W)*7.4(H) mm
