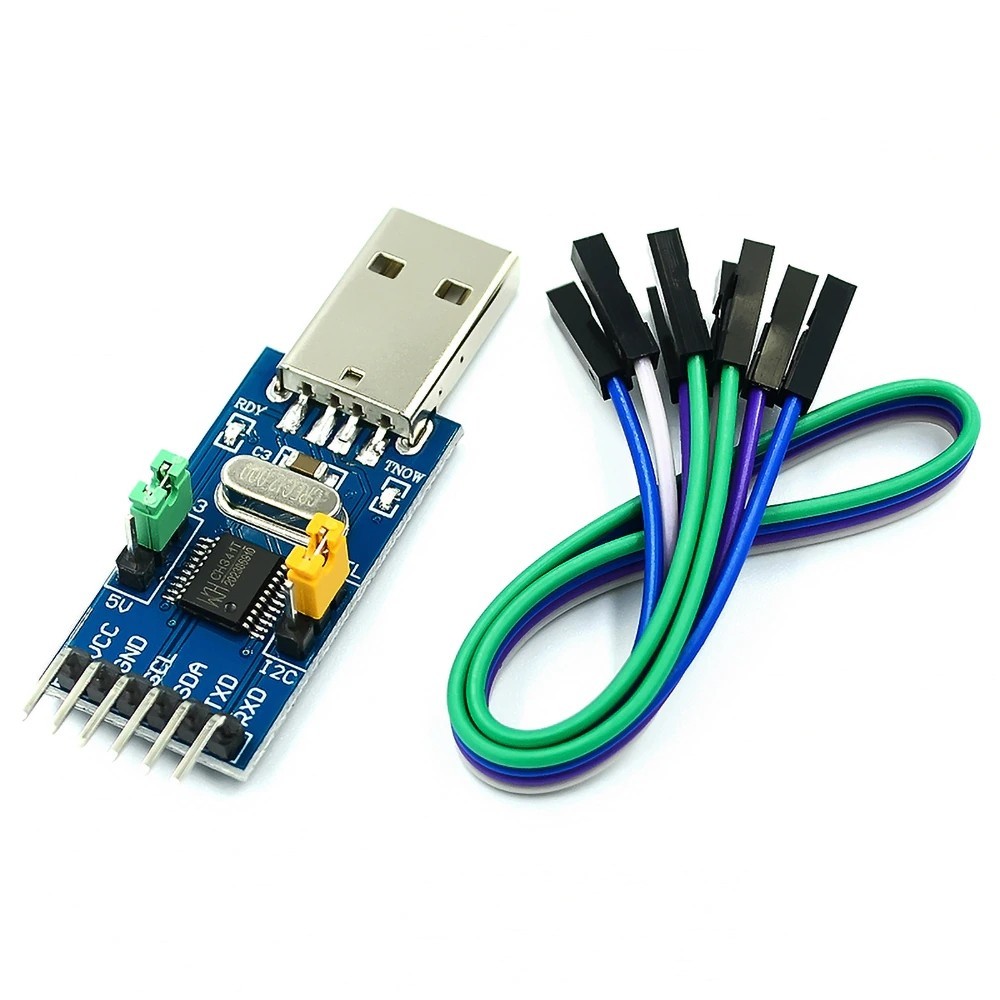

CH341T kettő az egyben modul USB I2C IIC UART USB TTL egychipes soros port letöltő
CH341T two-in-one module USB to I2C IIC UART USB to TTL single-chip serial port downloader
Module description
1. Provide 5V and 3.3V voltage output
2. USB to UART (serial port data, ISP method program download, STC/STM series single-chip microcomputer)
Serial data communication (50bps~2Mbps, can be configured for use at unconventional baud rate)
ISP mode program download (STC/STM series single-chip microcomputer)
3. USB to IIC/I2C (flash chip, IIC device operation, flashing)
Can only be a Master. 20K, 100K, 400K, 750K multiple adjustable communication rates
4. With LED light status display
5. Function and voltage switching terminal
Shipping list
CH341T two-in-one multi-function module*1
Double female Dupont cable *4
Anti-static bag *1
Short-circuit terminal *2
