Az esővízszint-érzékelő modul intelligensen érzékeli a folyadékszint mélységét és magasságát (Arduino esetén)
The rainwater level sensor module intelligently detects the depth and height of the liquid level (for Arduino)

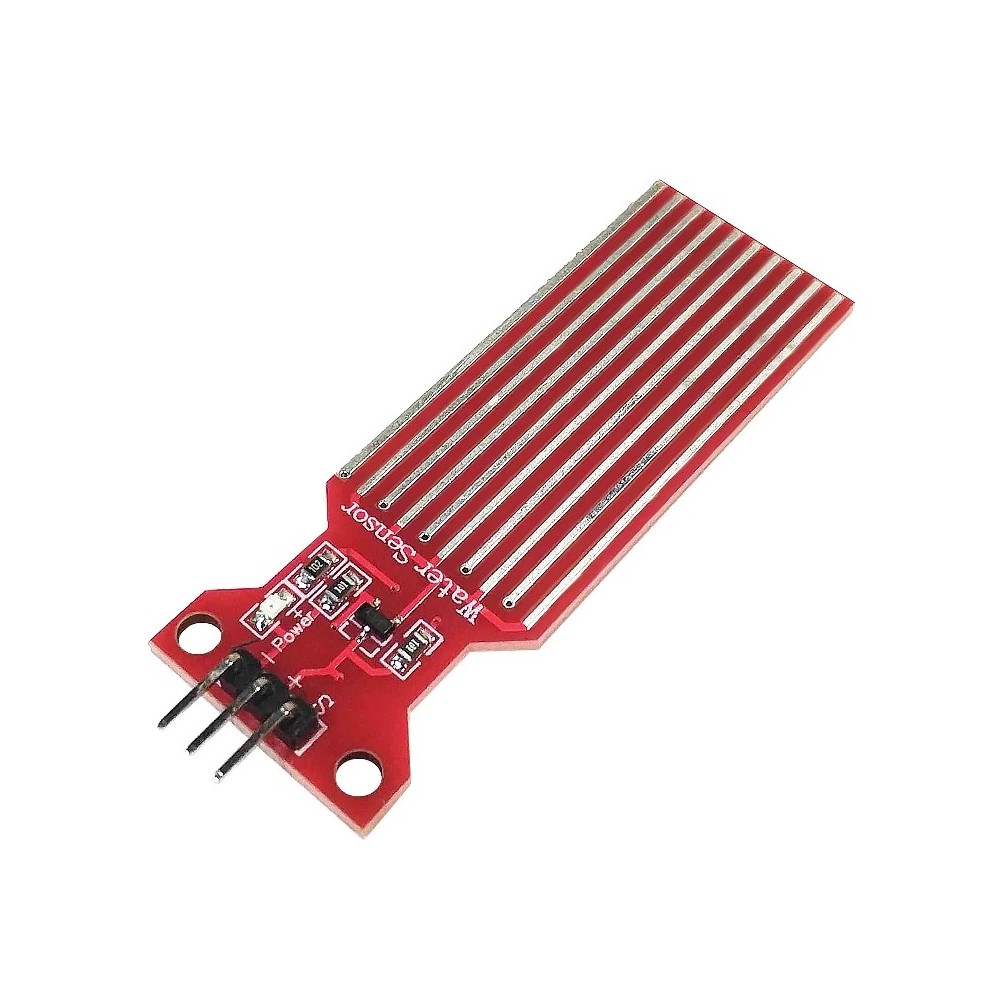

The Water Sensor is a simple, easy-to-use, cost-effective water level/droplet identification and detection sensor, which judges the water level by measuring the size of the water droplets/water volume through a series of exposed parallel wire traces. Easily complete the conversion of water volume to an analog signal, and the output analog value can be directly read by the Arduino development board to achieve the effect of water level alarm.
Specifications
ProductNProduct Name

Water Sensor
Operating Voltage

DC3~5V
Working Current

Less than 20mA
Sensor Type

Simulation
Detection Area

40mm*16mm
Craftsmanship

FR4 double-sided spray tin
Operating Temperature

10℃~30℃
Working Humidity

10% ~90% non-condensing
Weight

3.5g
Size

62mm*20mm*8mm
Packing

Electrostatic bag sealing
