2 szál 7,4 V18650 lítium akkumulátor 8,4 V polimer lítium akkumulátor 8 A áramerősség 16 A áramkorlátozó védőkártya

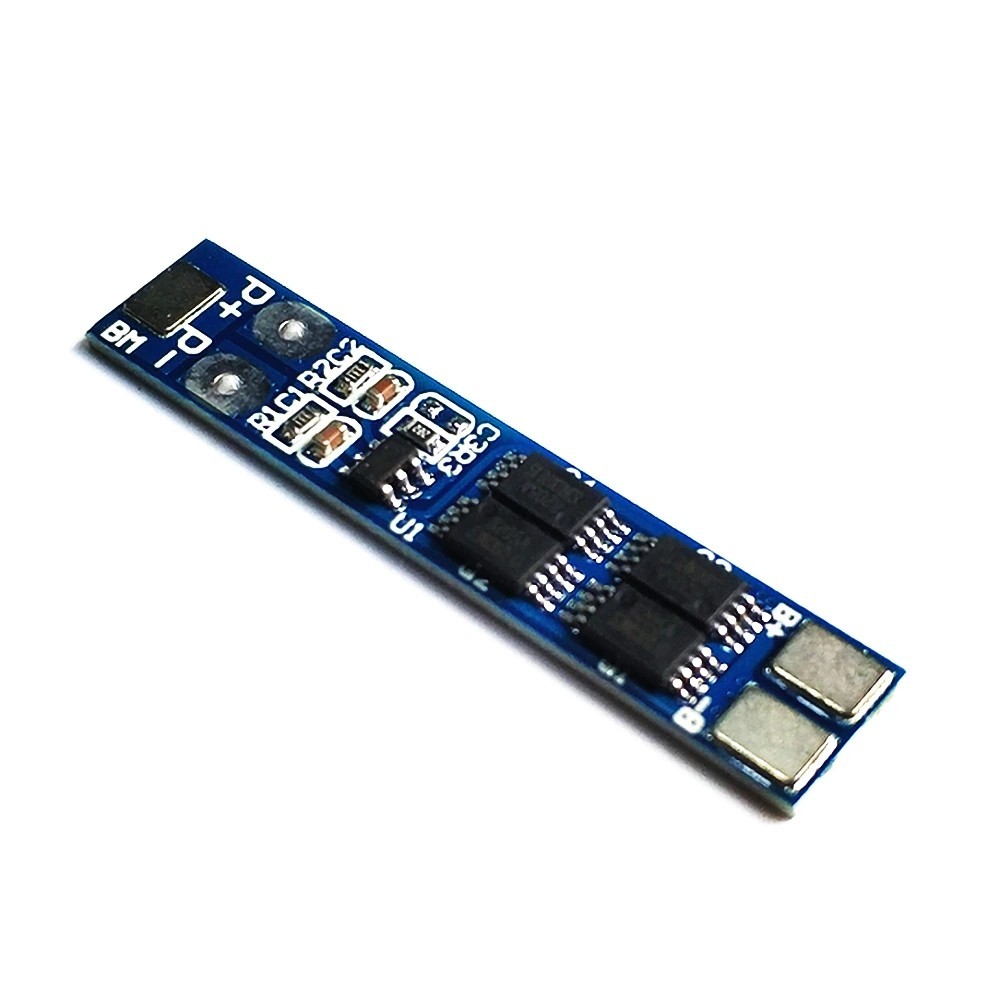

2 strings of 7.4V18650 lithium battery 8.4V polymer lithium battery 8A working for current 16A current limiting protection board
Note: The lithium battery protection board cannot be used for lithium iron phosphate batteries, hernia lights, hand drill battery packs, electric fish machine battery packs, electric bicycle battery packs, children's car batteries, power motors above 550, and 1W fish eye LEDs. Lamps, please pay attention to customers who purchase the above combination!
The power range described is applicable to the following products:
Massager battery pack, LED lamp backup power supply, 12V electronic products, solar streetlamp battery pack, monitoring backup power supply, and other products.
The main function:
Overcharge protection, over-discharge protection, short circuit protection, overcurrent protection
Wiring instructions:
B connect to battery positive
B- Connect to the negative pole of the battery
MB connects to the connection point between battery 1 and battery 2
P is connected to the positive electrode of the charge/discharge terminal (common to the charge terminal/discharge terminal)
P- connect to the negative electrode of the charge/discharge terminal (common to the charge terminal/discharge terminal)
Reminder: When assembling the battery pack, the battery voltage, capacity, and internal resistance must be paired well. The battery voltage should be around the rated voltage of 3.7V. After the battery pack is assembled, there is no output, just use 8.4V to chargeNote: The lithium battery protection board cannot be used for lithium iron phosphate batteries, hernia lights, hand drill battery packs, electric fish machine battery packs, electric bicycle battery packs, children's car batteries, power motors above 550, and 1W fish eye LEDs. Lamps, please pay attention to customers who purchase the above combination!
The power range described is applicable to the following products:
Massager battery pack, LED lamp backup power supply, 12V electronic products, solar streetlamp battery pack, monitoring backup power supply, and other products.
The main function:
Overcharge protection, over-discharge protection, short circuit protection, overcurrent protection
Wiring instructions:
B connect to battery positive
B- Connect to the negative pole of the battery
MB connects to the connection point between battery 1 and battery 2
P is connected to the positive electrode of the charge/discharge terminal (common to the charge terminal/discharge terminal)
P- connect to the negative electrode of the charge/discharge terminal (common to the charge terminal/discharge terminal)
Reminder: When assembling the battery pack, the battery voltage, capacity, and internal resistance must be paired well. The battery voltage should be around the rated voltage of 3.7V. After the battery pack is assembled, there is no output, just use 8.4V to charge
