- -41%

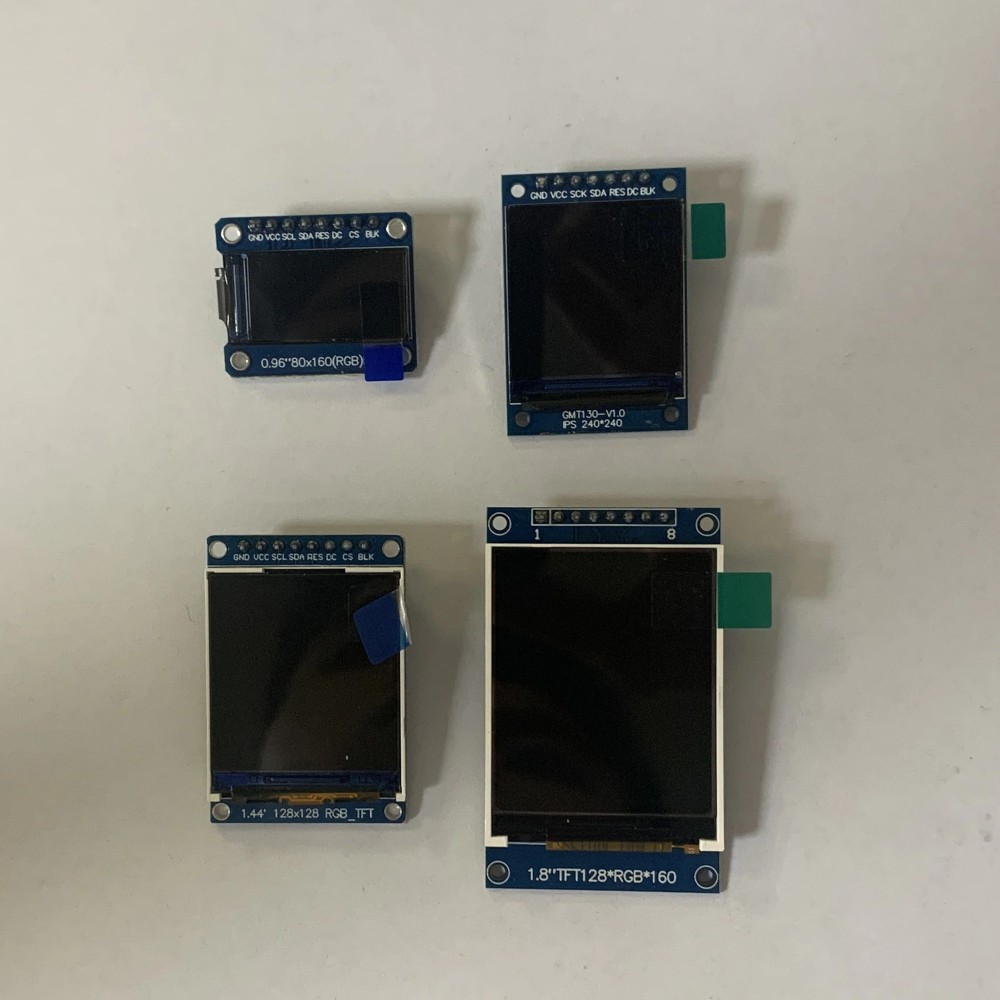

Szín: 0,96 hüvelyk - HD ips 0,96 hüvelykes 1,3 hüvelykes 1,44 hüvelykes 1,8 hüvelykes TFT kijelző színes képernyő OLED
Szín: 0,96 hüvelyk - HD ips 0,96 hüvelykes 1,3 hüvelykes 1,44 hüvelykes 1,8 hüvelykes TFT kijelző színes képernyő OLED
208 Ft
41% megtakarítás
352 Ft
Nincs adó
FUNCTIONS&FEATURES Lattice:128x64 Dots
LCD mode: FSTNnegativefull transparency,black film Viewing Direction:6 Oclock Drive Mode: 1/64 Duty1/9 Bias
LCM WorkingVoltage(VDD):3.3~5.0V LCD Drive Voltage VLCD(VOP): 9.0V Operating Temperature:-10℃~ 60℃ Storage Temperature:-20℃~ 70℃
Connectionmethod/driveIC:COG/ST7567 TZT Backlight(BL):2whiteLEDs(parallel)
(15mA/LED), If-30mA(Tye) VFE3.0V(Type
MECHANICAL SPECIFICATIONS
Outline Dimensions:42(L)x47.5(L)x13.65(H)(mm) ViewingArea:23.4(W)*36.00(L)(mm) Dot Pitch:0.32(W)*0.26(L)(mm) DotSize:0.29(W)*0.23(L)(mm)
EXTERNAL DIMENSIONS
Pin no. Symbol Function
1 CS Chip Select
2 RST Screen reset
3 AO Command/data
4 SCK Clock
5 SDA Data
6 GND Power negative
7 VDD Power positive
8 BLA Backlight positive
9 BLK Backlight negative
LCD mode: FSTNnegativefull transparency,black film Viewing Direction:6 Oclock Drive Mode: 1/64 Duty1/9 Bias
LCM WorkingVoltage(VDD):3.3~5.0V LCD Drive Voltage VLCD(VOP): 9.0V Operating Temperature:-10℃~ 60℃ Storage Temperature:-20℃~ 70℃
Connectionmethod/driveIC:COG/ST7567 TZT Backlight(BL):2whiteLEDs(parallel)
(15mA/LED), If-30mA(Tye) VFE3.0V(Type
MECHANICAL SPECIFICATIONS
Outline Dimensions:42(L)x47.5(L)x13.65(H)(mm) ViewingArea:23.4(W)*36.00(L)(mm) Dot Pitch:0.32(W)*0.26(L)(mm) DotSize:0.29(W)*0.23(L)(mm)
EXTERNAL DIMENSIONS
Pin no. Symbol Function
1 CS Chip Select
2 RST Screen reset
3 AO Command/data
4 SCK Clock
5 SDA Data
6 GND Power negative
7 VDD Power positive
8 BLA Backlight positive
9 BLK Backlight negative
