5 csatornás láng Ötcsatornás lángérzékelő modul, analóg digitális, kettős kimenetű tűzoltó robot

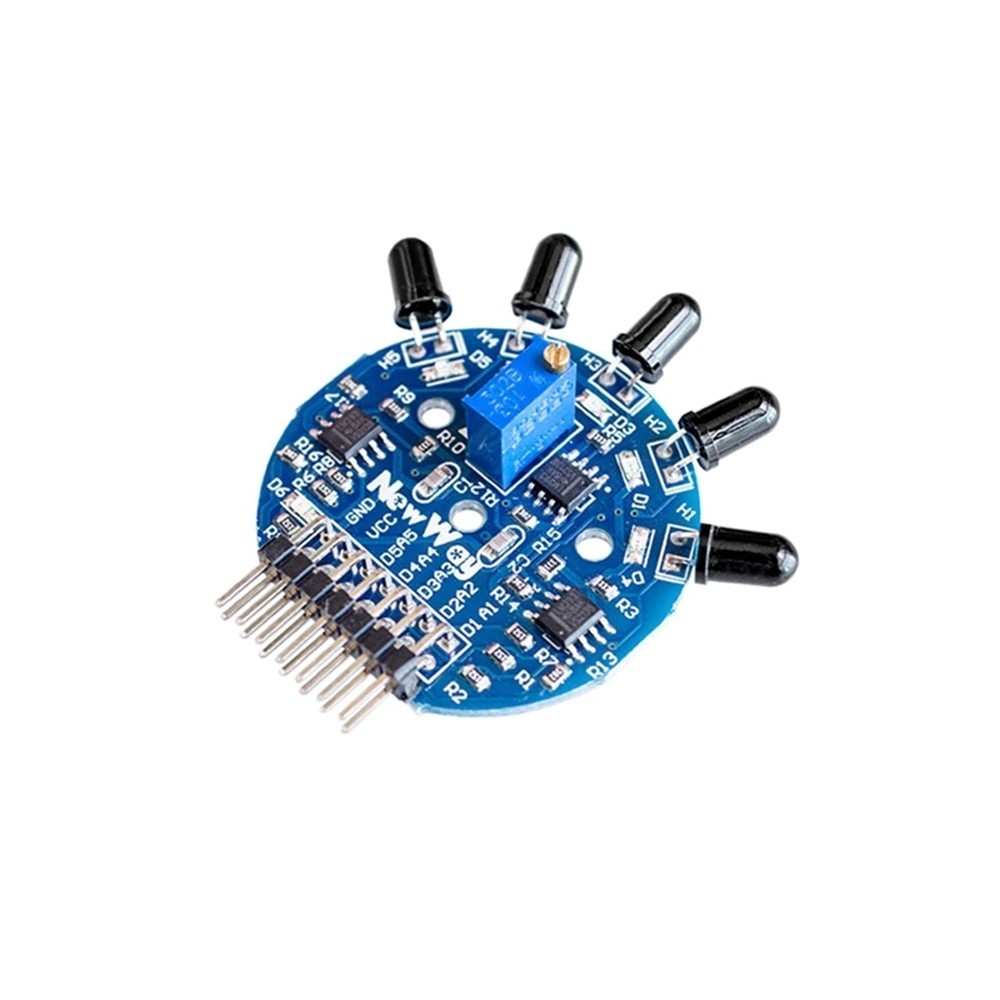

5 Channel Flame Five Channel Flame Sensor Module Analog Digital Dual Output Fire Extinguishing Robot
Product features:
5-way flame sensor design, wide detection range (common single flame sensor detection range is about 30 ° With the increase of distance, the detection range of this product is more than 120 °）
2 can output digital signal (high and low level), easy to use
3 can output analog signal (voltage signal), can be more accurate measurement signal, suitable for high precision occasions
All the five outputs are equipped with status indicator, which makes it very convenient in debugging and practical application
The detection range of digital output is adjustable, the sensitivity of analog output is adjustable, and the design is more flexible
Using 1% resistance design (the flame sensors on the market are all designed with 5% resistance), the signal output is more accurate, which is suitable for the occasions requiring high-precision measurement
3 m3 mounting holes on 7 boards for easy installation
83.3v-9v power supply, compatible with most single chip microcomputer systems
SMT technology is used for SMT automatic welding, and the military quality is reliable
working principle:
This product can detect the short wave near infrared (SW-NIR) emitted by the flame in the wavelength range of 700-1100 nm, and output it through the electrical signal (voltage signal).
Applicable occasions:
All occasions required for flame detection
Use case:
firefighting robot
Fire alarm
