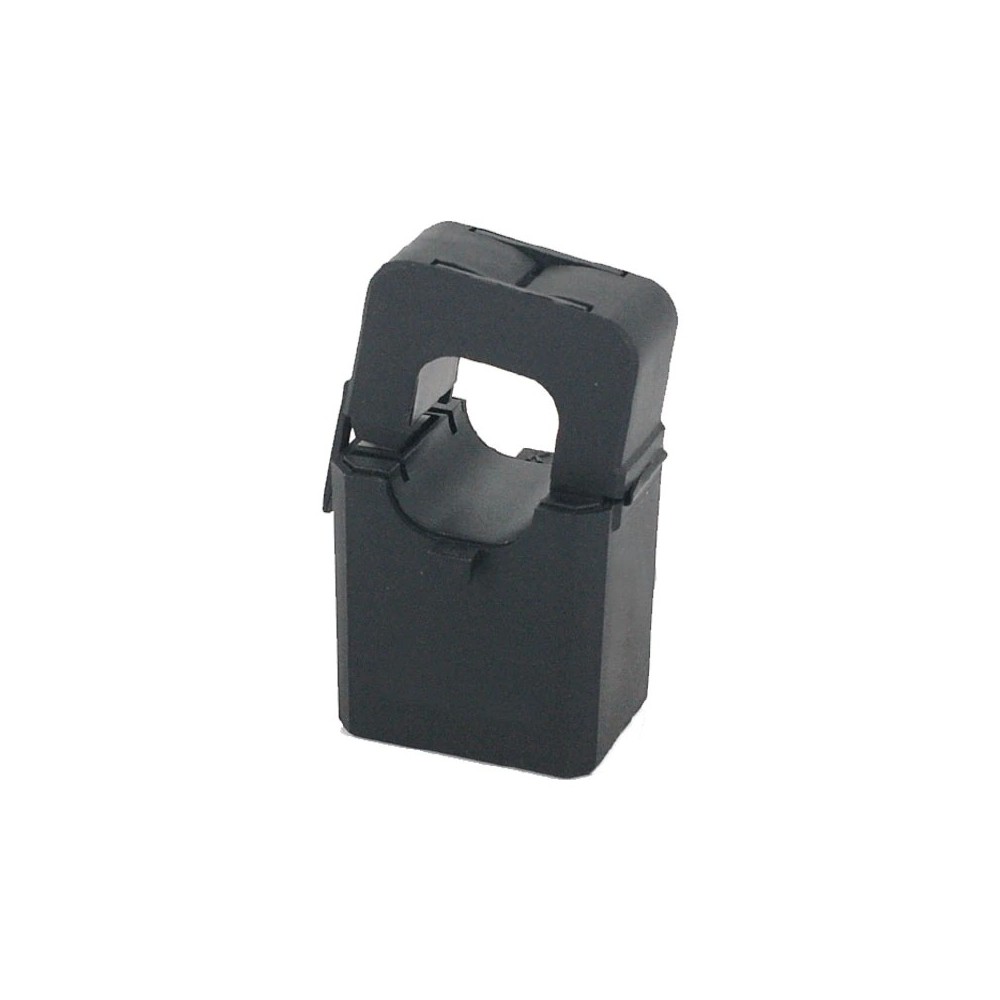

Szín: 100A-DC4-20mA - YHDC analóg kimeneti áramtranszformátor TST024T bemenet 100A/200A/300A kimenet DC: 4-20mA 24V DC
Szín: 100A-DC4-20mA - YHDC analóg kimeneti áramtranszformátor TST024T bemenet 100A/200A/300A kimenet DC: 4-20mA 24V DC
2 072 Ft
58,75% megtakarítás
5 024 Ft
Nincs adó
Analog output current transformer Model:TST024T Rated input: 100A/200A/300A Related output: DC 4-20mA two-wire system Supply voltage (± 5% ) 24V DC
Terminal output
Suspension type installation
The faulty wiring can lead to product damage
The output is linear with primary test current and the output signal can be directly enter automatic control equipment or PLC port.
Technical data:
Rated input: 100A/200A/300A
Measured range: 120A/240A/360A
Related output: DC 4-20mA two-wire system
Supply voltage (± 5% ) 24V DC
Accuracy: 1%
Linearity: 0.5%
Supply voltage (± 5% ) 24V DC
Working temperature: -10°C ~ 70°C
Storage temperature: -25°C ~ 70°C
Dielectric strength: 2.5KV 50Hz 1min
Overload capacity: 8times 0.1s
Waterproof level: IP00
Power consumption: 38 Io mA
Load Impedance 6V
Zero offset, TA = 25 ℃ ≤0.1mA lub ≤10mV
Response time: <350 MS
Working frequency: 50-400Hz
Material of core: Silicon steel sheet
If you need other parameters,please leave your requirements in the order.Thanks.
Rated input: 100A/200A/300A
Terminal output
Suspension type installation
The faulty wiring can lead to product damage
The output is linear with primary test current and the output signal can be directly enter automatic control equipment or PLC port.
Technical data:
Rated input: 100A/200A/300A
Measured range: 120A/240A/360A
Related output: DC 4-20mA two-wire system
Supply voltage (± 5% ) 24V DC
Accuracy: 1%
Linearity: 0.5%
Supply voltage (± 5% ) 24V DC
Working temperature: -10°C ~ 70°C
Storage temperature: -25°C ~ 70°C
Dielectric strength: 2.5KV 50Hz 1min
Overload capacity: 8times 0.1s
Waterproof level: IP00
Power consumption: 38 Io mA
Load Impedance 6V
Zero offset, TA = 25 ℃ ≤0.1mA lub ≤10mV
Response time: <350 MS
Working frequency: 50-400Hz
Material of core: Silicon steel sheet
If you need other parameters,please leave your requirements in the order.Thanks.
Rated input: 100A/200A/300A
