YHDC osztott magos áramtranszformátor SCT027H bemenet 50A 80A 100A 120A 160A kimenet 0,333V Pontosság ±3 %

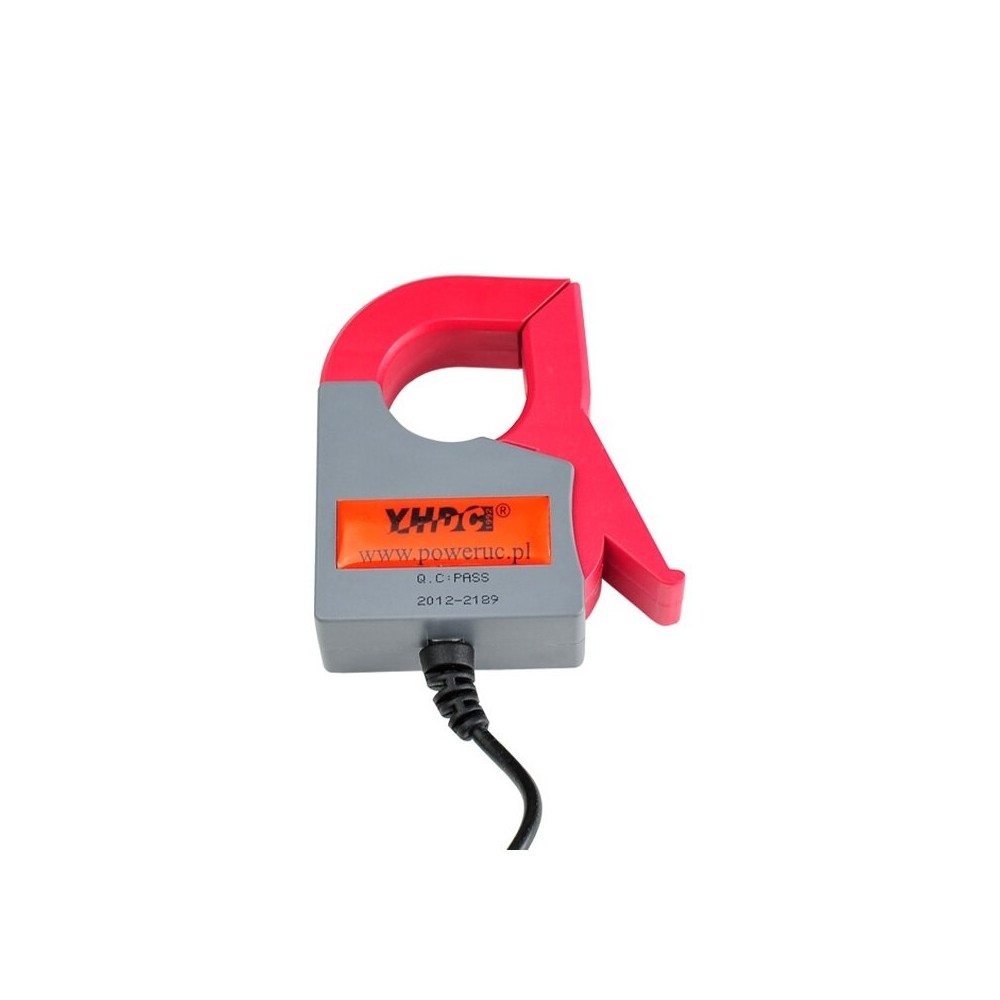

YHDC Split Core Current Transformer SCT027H Input 50A 80A 100A 120A 160A Output 0.333V Accuracy ±3 %
YHDC Split core current transformer SCT027H input 50A 80A 100A 120A 160A output 0.333V Accuracy ±3 %
Brand :YHDC
Rated input: 50A 80A 100A 120A 160A
Measured range: 200A
Rated output: 0.333V
Turns ratio: 1:4000
Accuracy: ±3 %
Linearity: 1%
Flame resistance: UL94-V0
Standard: GB1208-2006
Voltage: 720V
Working temperature: -25 ℃ ~ 60 ℃
Storage temperature: -30℃～ 90℃
Frequency: 50Hz-60Hz
Dielectric strength: 3,5KV 50Hz 1min
Sampling resistance: 70Ω
Weight: 104g
