Szín: 80A-1A - YHDC SCT016S osztott magos áramtranszformátor bemenet 50A/60A/80/100A/120A/150A/160A/200A kimenet 40mA/50mA
Szín: 80A-1A - YHDC SCT016S osztott magos áramtranszformátor bemenet 50A/60A/80/100A/120A/150A/160A/200A kimenet 40mA/50mA
560 Ft
59% megtakarítás
1 365 Ft
Nincs adó

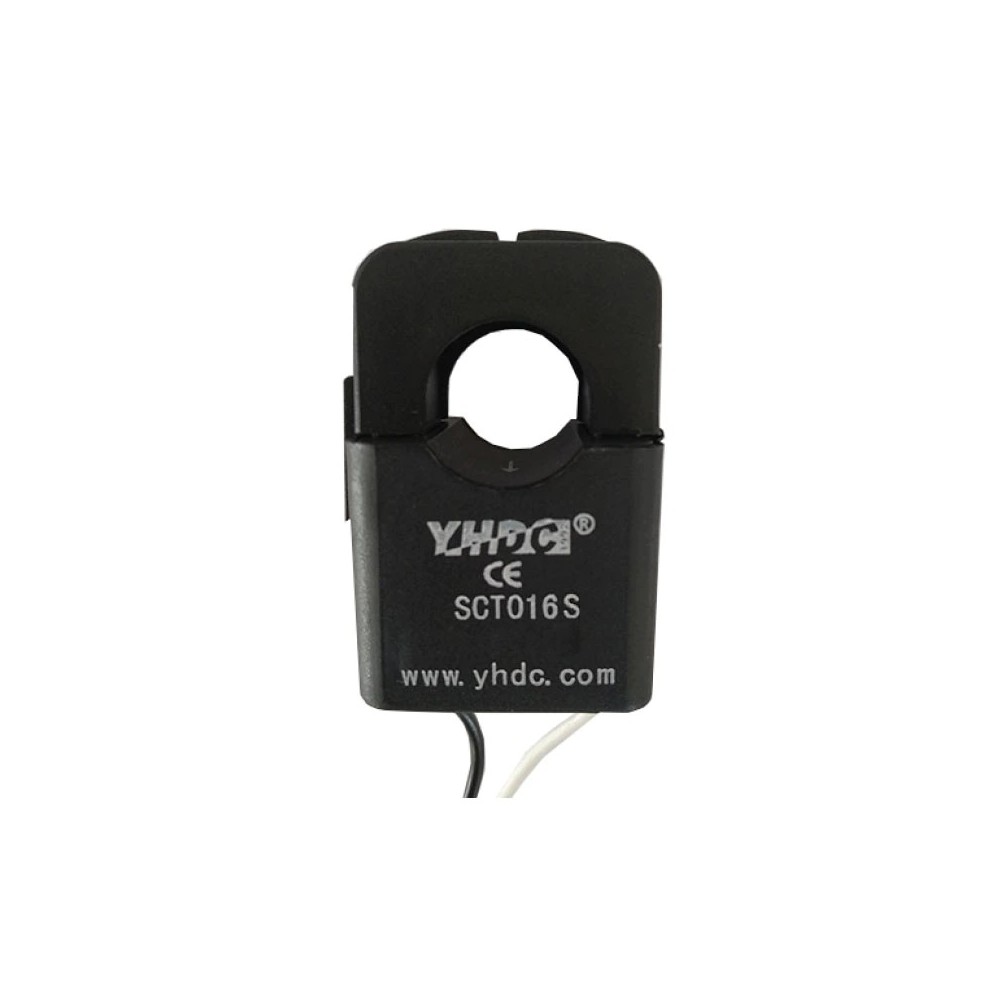

SCT016S Split Core Current Transformer
Brand:YHDC
Input current: 50A/60A/80A/100A/120A/150A/160A/200A
Max. Input: 200 A
output current 40mA/50mA/100mA/1A
Work voltage:720V
Accuracy: 1 %
Linearity: 1%
Characteristics:
Compatible to foreign products. Applicable for the current measuring monitoring and protection of AC motor, lighting equipment and air compressor.
Hanging installation, leading wire 50cm
The material of core: Silicon steel sheet
Fire resistance property: UL94-V0
Work temperature:-25℃～ 60℃
Storage temperature:-30℃～ 90℃
Frequency range: 50Hz～60Hz
Dielectric strength: AC 3500V/1min
Max: Sampling resistance
Product Specification
Best quality Best service Professional manufacturer.
Meet customers' different requirements.
Welcome to contact us, we are pleased to serve you.
Enable GingerCannot connect to GingerCheck your internet connection
or reload the browserDisable in this text fieldEditEdit in GingerEdit in Ginger×
Brand:YHDC
Input current: 50A/60A/80A/100A/120A/150A/160A/200A
Max. Input: 200 A
output current 40mA/50mA/100mA/1A
Work voltage:720V
Accuracy: 1 %
Linearity: 1%
Characteristics:
Compatible to foreign products. Applicable for the current measuring monitoring and protection of AC motor, lighting equipment and air compressor.
Hanging installation, leading wire 50cm
The material of core: Silicon steel sheet
Fire resistance property: UL94-V0
Work temperature:-25℃～ 60℃
Storage temperature:-30℃～ 90℃
Frequency range: 50Hz～60Hz
Dielectric strength: AC 3500V/1min
Max: Sampling resistance
Product Specification
