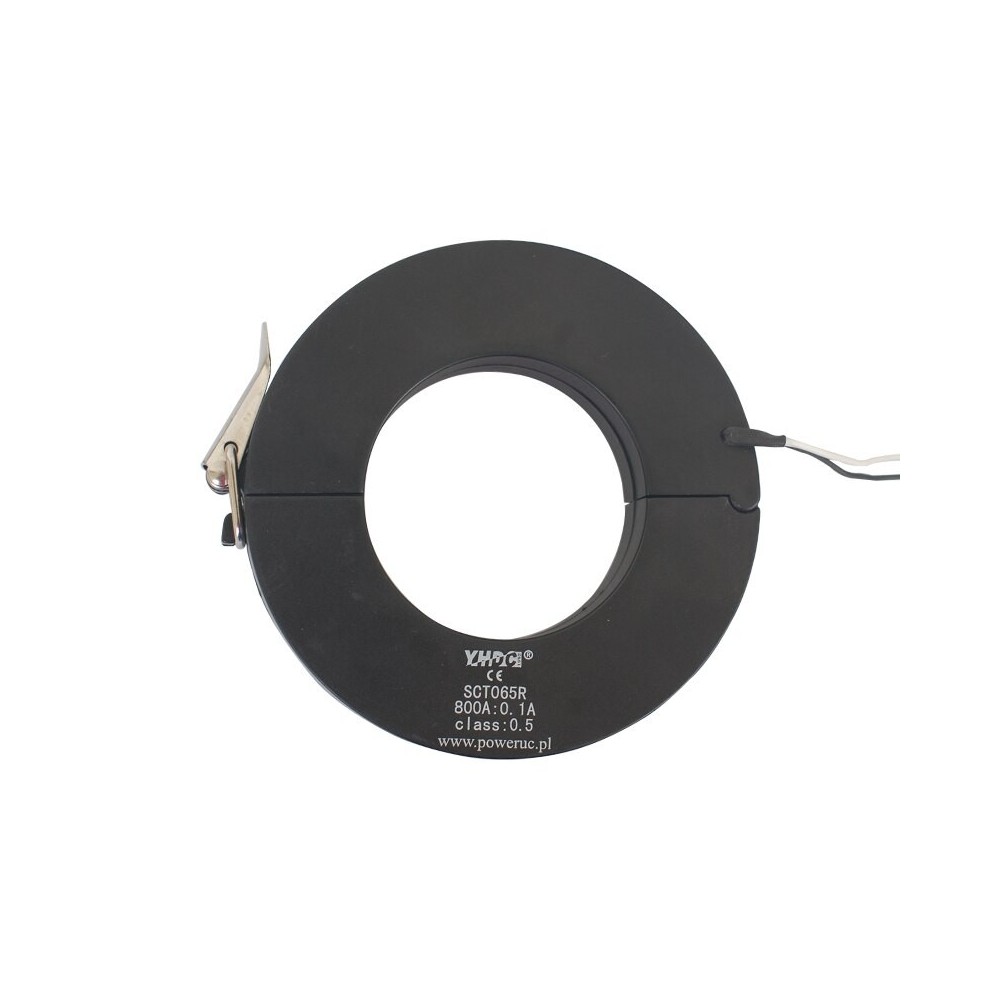

YHDC split core current transformer SCT065R 300A 400A 500A 600A 700A 800A / 0.1A 0.5%
Characteristic:
Split core structure, Suspended installation,Round window shape: round, diameter: 65mm. Secondary leading wire output
Technical Indicators:
Rated input:300A 400A 500A 600A 700A 800A
Rated output : 0.1A
Turns ratio:1:3000 /1:4000/1:5000/1:6000/1:7000/1:8000
Accuracy:±0.5%
linearity: ≤0.5%
Max :Sampling resistance:100/80/50
Material of core: Silicon steel sheet
Fire resistance property: UL94-V0
Work voltage: 720V
Work temperature: -30°C ~ 65°C
Storage temperature: -40°C ~ 85°C
Frequency range: 50Hz ~ 60Hz
Dielectric strength: AC 3.5KV/1min
Please select the appropriate parameter for you,thank you. ^_^
Characteristic:
Split core structure, Suspended installation,Round window shape: round, diameter: 65mm. Secondary leading wire output
Technical Indicators:
Rated input:300A 400A 500A 600A 700A 800A
Rated output : 0.1A
Turns ratio:1:3000 /1:4000/1:5000/1:6000/1:7000/1:8000
Accuracy:±0.5%
linearity: ≤0.5%
Max :Sampling resistance:100/80/50
Material of core: Silicon steel sheet
Fire resistance property: UL94-V0
Work voltage: 720V
Work temperature: -30°C ~ 65°C
Storage temperature: -40°C ~ 85°C
Frequency range: 50Hz ~ 60Hz
Dielectric strength: AC 3.5KV/1min
Please select the appropriate parameter for you,thank you. ^_^
