Szín: 110V-12V x2 - YHDC PCB hegesztő leválasztó transzformátor PE2006-M 0,35VA 110V/12V x2
Szín: 110V-12V x2 - YHDC PCB hegesztő leválasztó transzformátor PE2006-M 0,35VA 110V/12V x2
745 Ft
56% megtakarítás
1 693 Ft
Nincs adó

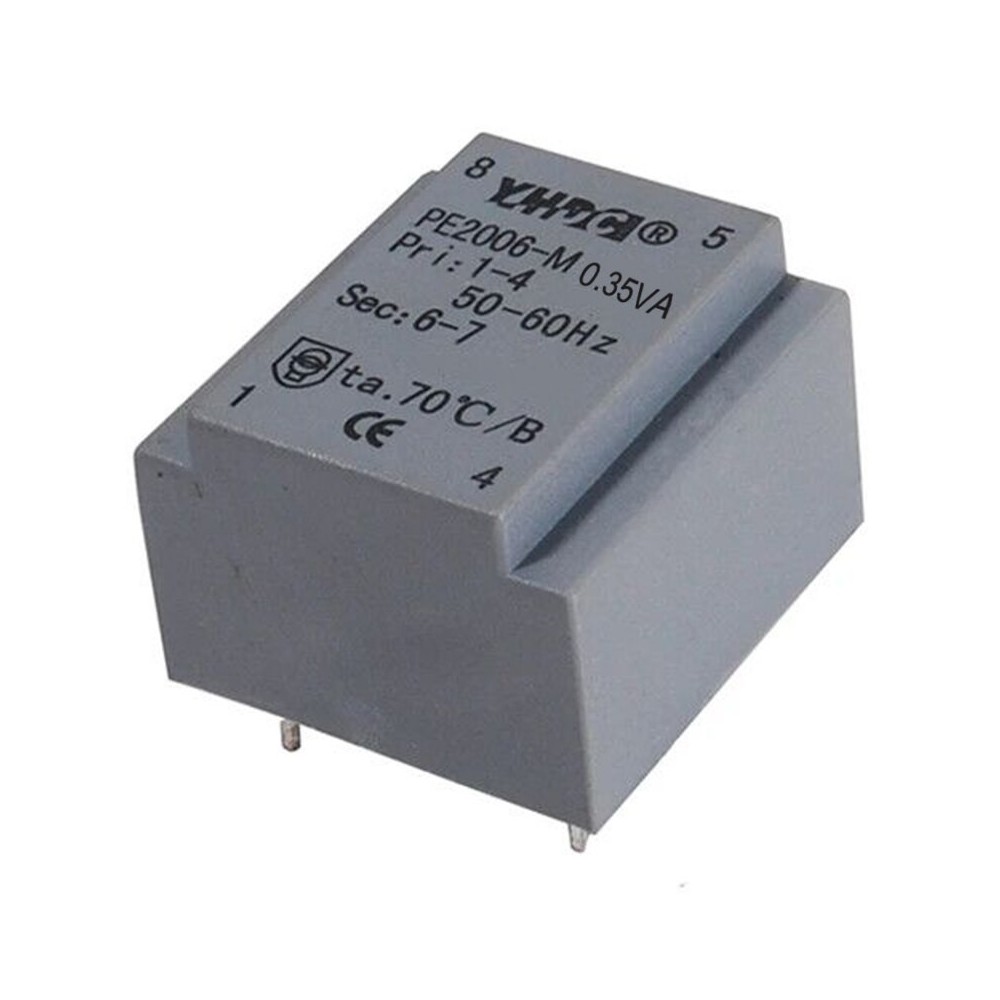

PCB welding isolation transformer PE2006-M 0,35VA 110V/12V x2
Characteristics:
Vacuum epoxy encapsulated, small size, compatible with foreign transformers, PCB mounting, open loop circuit can be allowed in the secondary. Primary voltage: 110V/220V/230V or producing as customized.
Technical Index:
Power: 0.35VA
Primary voltage: 110V
Secondary voltage:12V x2
Installation method: PCB
Flame resistance: UL94-V0
Isolation class: B
Working temperature: -30 ° C ~ 70 ° C
Frequency: 50Hz ~ 60Hz
Dielectric strength: 3.5KV 50Hz 1min
Primary voltage range: ±10%
Voltage regulation: ≤44%
Temperature rise: ≤25o C
No-load loss: ≤0.15W
Attention: Kindly advise detail specification you require when place order.
Characteristics:
Vacuum epoxy encapsulated, small size, compatible with foreign transformers, PCB mounting, open loop circuit can be allowed in the secondary. Primary voltage: 110V/220V/230V or producing as customized.
Technical Index:
Power: 0.35VA
Primary voltage: 110V
Secondary voltage:12V x2
Installation method: PCB
Flame resistance: UL94-V0
Isolation class: B
Working temperature: -30 ° C ~ 70 ° C
Frequency: 50Hz ~ 60Hz
Dielectric strength: 3.5KV 50Hz 1min
Primary voltage range: ±10%
Voltage regulation: ≤44%
Temperature rise: ≤25o C
No-load loss: ≤0.15W
Attention: Kindly advise detail specification you require when place order.
