Szín: 200A-1A - YHDC osztott magos áramtranszformátor SCT045B bemenet 100A 200A 500A 600A 800A 1000A kimenet 1A Pontosság

Szín: 200A-1A - YHDC osztott magos áramtranszformátor SCT045B bemenet 100A 200A 500A 600A 800A 1000A kimenet 1A Pontosság

1 671 Ft 57,5% megtakarítás
3 932 Ft
Nincs adó

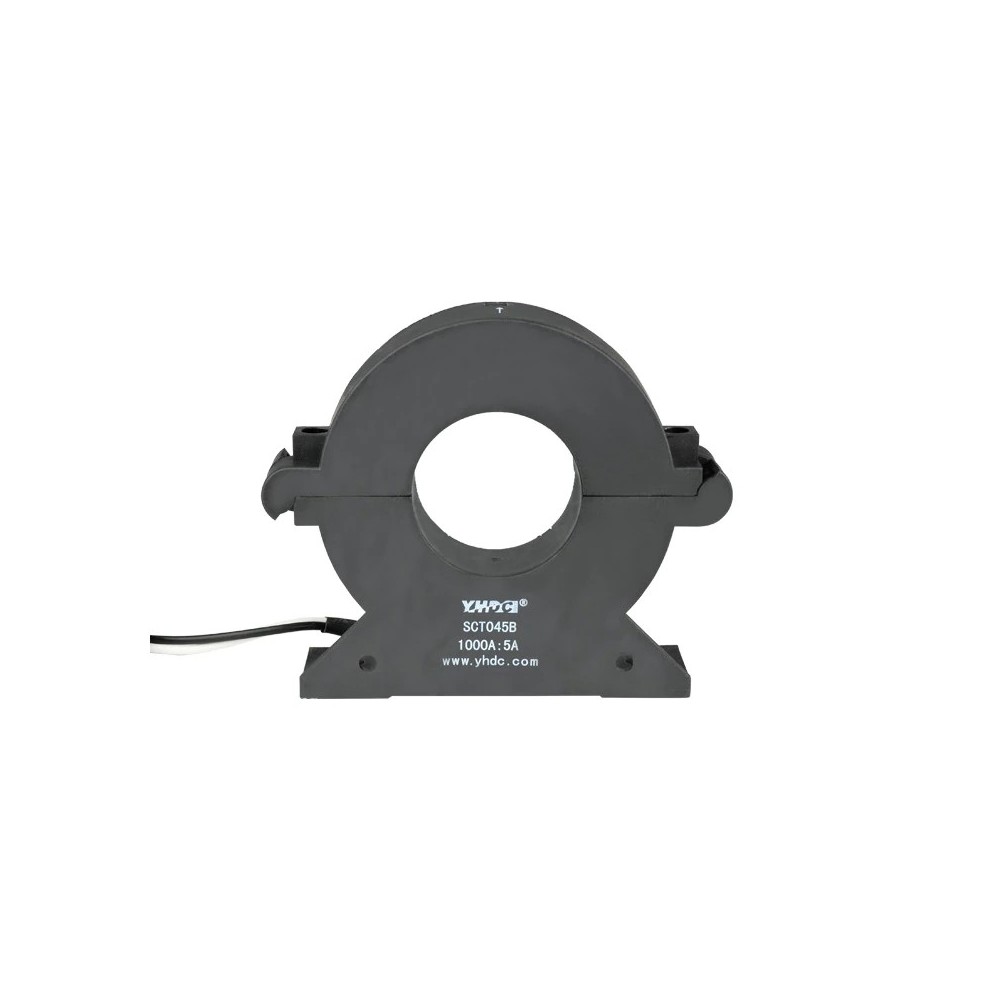

Split Core Current Transformer Model：SCT045B
Characteristic:
Split core , 0.333V output , Built - in with sampling resistance , Purpose : Applicable for the current measuring monitoring and protection of AC motor , lighting equipment and air compressor
Technical Indicators:
Rated Input:100A 200A 500A 600A 800A 1000A
Rated output: 1A
Accuracy (% ):0.5
Work voltage: 720V
Work frequency: 50-60Hz
Phase shift: ≤±30'
Operating temperature: -20.. 60℃
Storage temperature: -25.. 65℃
Fire resistance: UL94-V0
Dielectric strength(50Hz 1min): 3.5KV
Material of core: Silicon steel sheet
Mounting type: Plate-type
Mennyiség
Add to Compare
Add to Wishlist



Biztonsági feltételek



Szállításii feltételek



Visszaküldési feltételek

A cím elején, valamint az első képen szereplő szín/minta/méret/típus kerül kiszállításra!
YHDC osztott magos áramtranszformátor SCT045B bemenet 100A 200A 500A 600A 800A 1000A kimenet 1A Pontosság 0,5%
YHDC Split Core Current Transformer SCT045B Input100A 200A 500A 600A 800A 1000A Output 1A Accuracy 0.5%
Split Core Current Transformer Model：SCT045B
Characteristic:
Split core , 0.333V output , Built - in with sampling resistance , Purpose : Applicable for the current measuring monitoring and protection of AC motor , lighting equipment and air compressor
Technical Indicators:
Rated Input:100A 200A 500A 600A 800A 1000A
Rated output: 1A
Accuracy (% ):0.5
Work voltage: 720V
Work frequency: 50-60Hz
Phase shift: ≤±30'
Operating temperature: -20.. 60℃
Storage temperature: -25.. 65℃
Fire resistance: UL94-V0
Dielectric strength(50Hz 1min): 3.5KV
Material of core: Silicon steel sheet
Mounting type: Plate-type
1005004144365451. - yhdc
1005004144365451.

Hasonló kategóriák mint 16 :

Reviews

Write your review

Write your review

Szín: 200A-1A - YHDC osztott magos áramtranszformátor SCT045B bemenet 100A 200A 500A 600A 800A 1000A kimenet 1A Pontosság

Split Core Current Transformer Model：SCT045B
Characteristic:
Split core , 0.333V output , Built - in with sampling resistance , Purpose : Applicable for the current measuring monitoring and protection of AC motor , lighting equipment and air compressor
Technical Indicators:
Rated Input:100A 200A 500A 600A 800A 1000A
Rated output: 1A
Accuracy (% ):0.5
Work voltage: 720V
Work frequency: 50-60Hz
Phase shift: ≤±30'
Operating temperature: -20.. 60℃
Storage temperature: -25.. 65℃
Fire resistance: UL94-V0
Dielectric strength(50Hz 1min): 3.5KV
Material of core: Silicon steel sheet
Mounting type: Plate-type
