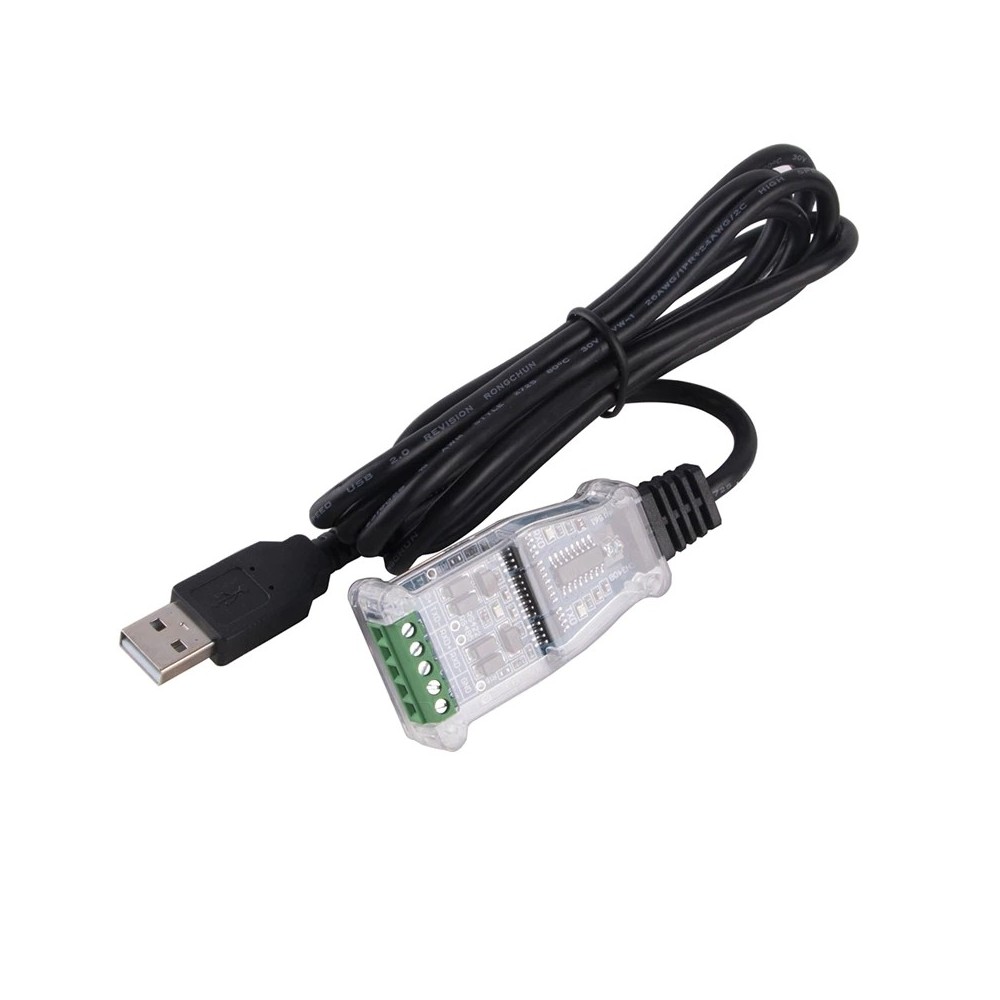

Fekete szín - USB-RS422 RS485 soros adapter átalakító 5 tűs csatlakozóblokk kommunikációs kábel
Fekete szín - USB-RS422 RS485 soros adapter átalakító 5 tűs csatlakozóblokk kommunikációs kábel
1 039 Ft
58,5% megtakarítás
2 503 Ft
Nincs adó
Single chip USB to asynchronous serial data transfer interface.Entire USB protocol handled on the chip - No USB-specific firmware programming required. UART interface support for 7 or 8 data bits,1 or 2 stop bits and odd / even / mark / space / no parity. Fully assisted hardware or X-On / X-Off software handshaking. Data transfer rates from 300 baud to 3 Megabaud (RS422 / RS485 and at TTL levels) and 300 baud to 1 Megabaud (RS232). In-built support for event characters and line break condition.
New USB FTDIChip-ID? feature. New configurable CBUS I/O pins. Auto transmit buffer control for RS485 applications. Transmit and receive LED drive signals. New 48MHz, 24MHz,12MHz, and 6MHz clock output signal Options for driving external MCU or FPGA. FIFO receive and transmit buffers for high data throughput. 256 Byte receive buffer and 128 Byte transmit buffer utilising buffer smoothing technology to allow for high data throughput. Adjustable receive buffer timeout.
Synchronous and asynchronous bit bang mode interface options with RD# and WR# strobes. New CBUS bit bang mode option. Integrated 1024 bit internal EEPROM for I/O configuration and storing USB VID, PID, serial number and product description strings. Device supplied preprogrammed with unique USB serial number. Support for USB suspend / resume. Support for bus powered, self powered, and high-power bus powered USB configurations. Integrated 3.3V level converter for USB I/O .
USB to RS422 RS485 Serial Adapter Converter cable. USB to 5Pin terminal block cable.
RS485 RS422 signal output: Data , Data-, GND, VCC, TXD, RXD
When working, with LED light display
FTDI/FT232RL Chip with the best compatibility and stability.
Driver Download: https://www.ftdichip.com/Drivers/VCP.htm
Installation Guide: http://www.ftdichip.com/Support/Documents/InstallGuides.htm
Integrated level converter on UART and CBUS for interfacing to 5V - 1.8V Logic.
True 5V / 3.3V / 2.8V / 1.8V CMOS drive output and TTL input.
High I/O pin output drive option.
Integrated USB resistors.
Integrated power-on-reset circuit.
Fully integrated clock - no external crystal, oscillator, or resonator required.
Fully integrated AVCC supply filtering - No separate AVCC pin and no external R-C filter required.
UART signal inversion option.
USB bulk transfer mode.
3.3V to 5.25V Single Supply Operation.
Low operating and USB suspend current.
Low USB bandwidth consumption.
UHCI / OHCI / EHCI host controller compatible.
USB 2.0 Full Speed compatible.
-40°C to 85°C extended operating temperature range.
Colour: black
Material: PVC copper
Size: Cable length is about 1.5 meters
Package Contents:
1 * USB 5 Pin terminal block cable
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is /- 1-3cm.
New USB FTDIChip-ID? feature. New configurable CBUS I/O pins. Auto transmit buffer control for RS485 applications. Transmit and receive LED drive signals. New 48MHz, 24MHz,12MHz, and 6MHz clock output signal Options for driving external MCU or FPGA. FIFO receive and transmit buffers for high data throughput. 256 Byte receive buffer and 128 Byte transmit buffer utilising buffer smoothing technology to allow for high data throughput. Adjustable receive buffer timeout.
Synchronous and asynchronous bit bang mode interface options with RD# and WR# strobes. New CBUS bit bang mode option. Integrated 1024 bit internal EEPROM for I/O configuration and storing USB VID, PID, serial number and product description strings. Device supplied preprogrammed with unique USB serial number. Support for USB suspend / resume. Support for bus powered, self powered, and high-power bus powered USB configurations. Integrated 3.3V level converter for USB I/O .
USB to RS422 RS485 Serial Adapter Converter cable. USB to 5Pin terminal block cable.
RS485 RS422 signal output: Data , Data-, GND, VCC, TXD, RXD
When working, with LED light display
FTDI/FT232RL Chip with the best compatibility and stability.
Driver Download: https://www.ftdichip.com/Drivers/VCP.htm
Installation Guide: http://www.ftdichip.com/Support/Documents/InstallGuides.htm
Integrated level converter on UART and CBUS for interfacing to 5V - 1.8V Logic.
True 5V / 3.3V / 2.8V / 1.8V CMOS drive output and TTL input.
High I/O pin output drive option.
Integrated USB resistors.
Integrated power-on-reset circuit.
Fully integrated clock - no external crystal, oscillator, or resonator required.
Fully integrated AVCC supply filtering - No separate AVCC pin and no external R-C filter required.
UART signal inversion option.
USB bulk transfer mode.
3.3V to 5.25V Single Supply Operation.
Low operating and USB suspend current.
Low USB bandwidth consumption.
UHCI / OHCI / EHCI host controller compatible.
USB 2.0 Full Speed compatible.
-40°C to 85°C extended operating temperature range.
Colour: black
Material: PVC copper
Size: Cable length is about 1.5 meters
Package Contents:
1 * USB 5 Pin terminal block cable
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is /- 1-3cm.
