MH-Z19D infravörös CO2 érzékelő modul szén-dioxid gáz érzékelő CO2 monitorhoz 400-5000 ppm UART PWM kimenet tűvel

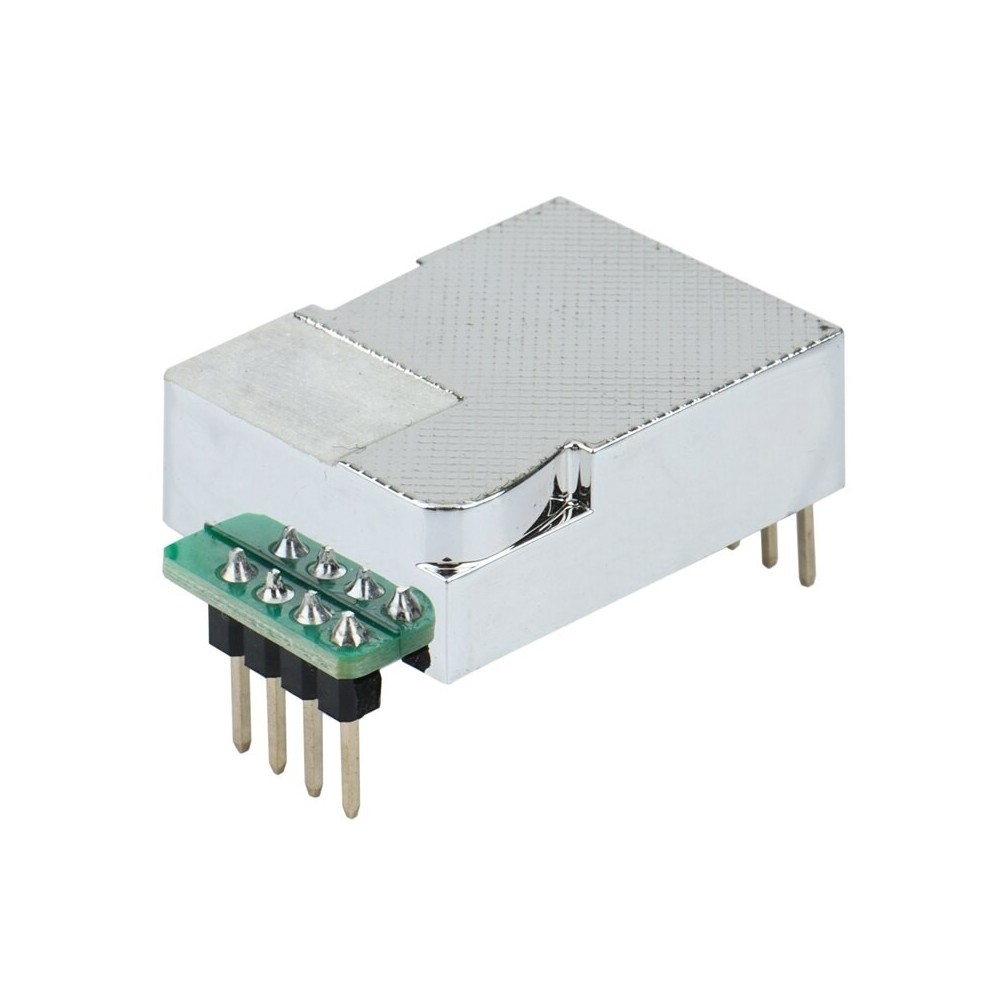

MH-Z19D Infrared CO2 Sensor Module Carbon Dioxide Gas Sensor For CO2 Monitor 400-5000Ppm UART PWM Output With Pin
The MH-Z19D carbon dioxide gas sensor (hereinafter referred to as the sensor) is a general-purpose intelligent small sensor. It has : pin . It uses the principle of non-dispersive infrared (NDIR) to detect CO2 in the air and has good selectivity. No oxygen dependence, long life, etc.;built-in temperature compensation; also has serial port output, PWM output, easy to use.
The sensor is a high-performance sensor made by closely combining mature infrared absorption gas detection technology with precise optical circuit design and sophisticated circuit design.
High sensitivity, low power consumption
Excellent stability
Temperature compensation, excellent linear output
Provide serial port (UART), PWM waveform and other output methods
long lasting
Anti-water vapor interference, no poisoning
Application:
HVAC equipment
Air quality monitoring equipment
Fresh air system
Air purification equipment
Smart home
school
Parameters:
Product model: MH-Z19D
Detection gas: carbon dioxide
Power supply voltage: DC(5.0±0.1)V
Average current: Less than 40mA (@5V power supply)
Peak current: 125 mA (@5V power supply)
Interface level: 3.3V (compatible with 5V)
Measuring range: 400~10000ppm optional
Output signal: serial port (UART) (TTL level 3.3V); PWM
Warm-up time: 1min
Response time: T90 Less than 120s
Working temperature: -10 Celsius~50 Celsius
Storage temperature: -20 Celsius~60 Celsius
Working humidity: 0~95% RH (non-condensing)
Colour:silver
Material:plastic
Size:about 33 x 20mm
Package Contents:
1 x CO2 Sensor Module
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is /- 1-3cm.
