Szín: Egyéb - 1000 W nagy teljesítményű mono csatornás erősítőkártya Professzionális színpadi AMP kártya 5200 1943
Szín: Egyéb - 1000 W nagy teljesítményű mono csatornás erősítőkártya Professzionális színpadi AMP kártya 5200 1943
4 380 Ft
59% megtakarítás
10 683 Ft
Nincs adó

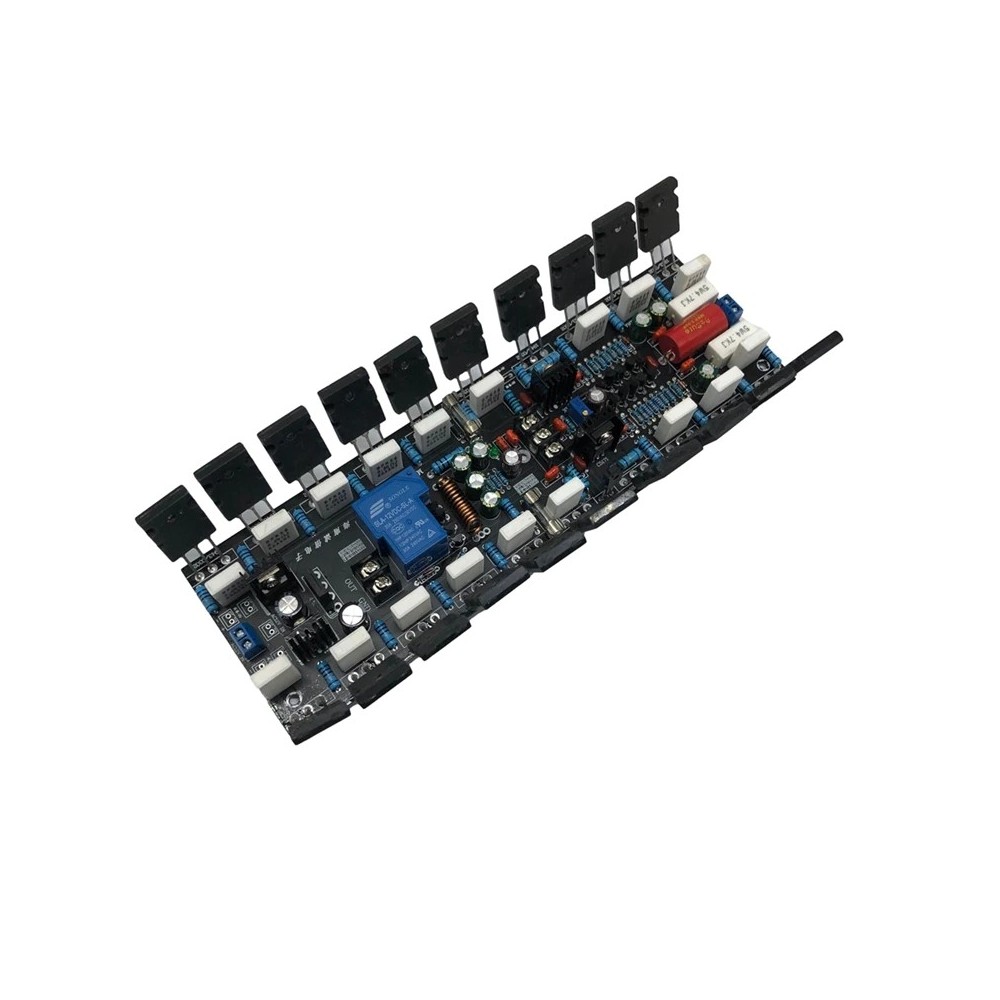

The board is only a single-channel power amplifier board, if you need dual-channel, please buy two.
The circuit design uses A970/C2240 high withstand voltage audio pair tube double differential circuit and A1145/C2705 for voltage amplification.
Promote the use of medium power pair tube A1837/C4793, and the output stage uses A1943/C5200 high power for Toshiba tube.
The power supply range is wide, DC positive or negative 20V-90V can be used, as long as enough power is supplied to easily reach 800W, the sound quality is good, the driving force is very strong, and the 15-inch speaker is pushed, there is no pressure!
Power supply: dual voltage, DC plus or minus 20-90V. Independent speaker protection power 12V (AC, DC) input.
Colour:As shown
Material:Metal PCB
Size:250 x 80 x 46mm
Package Contents:
1 x Mono Channel Amplifier Board
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is /- 1-3cm.
The circuit design uses A970/C2240 high withstand voltage audio pair tube double differential circuit and A1145/C2705 for voltage amplification.
Promote the use of medium power pair tube A1837/C4793, and the output stage uses A1943/C5200 high power for Toshiba tube.
The power supply range is wide, DC positive or negative 20V-90V can be used, as long as enough power is supplied to easily reach 800W, the sound quality is good, the driving force is very strong, and the 15-inch speaker is pushed, there is no pressure!
Power supply: dual voltage, DC plus or minus 20-90V. Independent speaker protection power 12V (AC, DC) input.
Colour:As shown
Material:Metal PCB
Size:250 x 80 x 46mm
Package Contents:
1 x Mono Channel Amplifier Board
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is /- 1-3cm.
