5 MP USB kameramodul 120 fokos széles látószögű OV5640 2592X1944 fix fókuszú szabad meghajtó a biztonsági megfigyeléshez

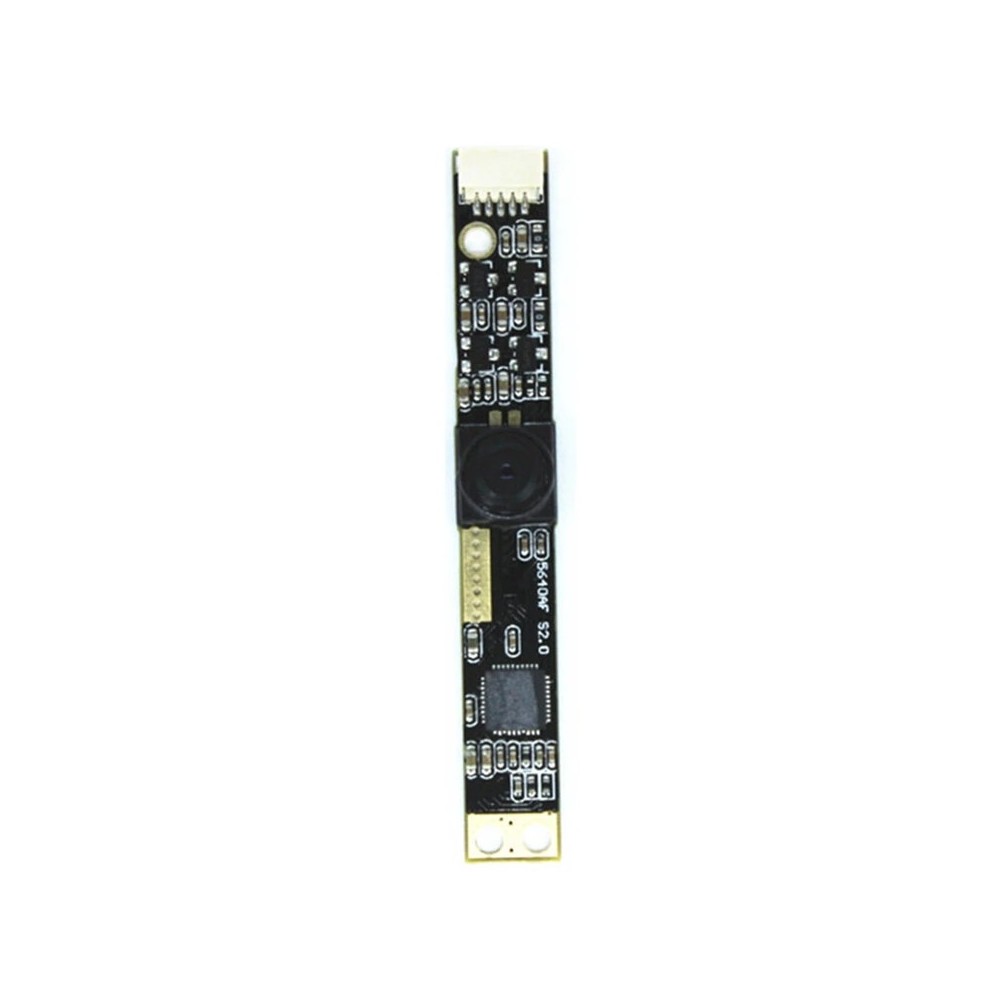

5MP USB Camera Module 120 degree Wide Angle OV5640 2592X1944 Fixed Focus Free Drive for Security Monitoring
Operating system request: Windows 2000/ Windows XP/Windows 7
Fixed Pattern Noise: less than 0.03% of VPEAK-TO-PEAK
Module No.: HBV-5640WA-1 S2.0
Module Size: 60mm x 8.5mm x 12.8mm
Temperature (Operation): -20 Celsius to 70 Celsius
Temperature (Stable Ie): 0 Celsius to 50 Celsius
Assembly technique: SMT (ROSH)
Focus: Fixed
Object distance :30CM-200CM
Resolution: 600LW/PH (Center)
interface: USB 2.0
Power: USB bus power
Power consumption:150mW (VGA); 200 mW (QSXGA);
Package: Anti-electrostatic tray
Active Array Size: 2592 x 1944
Sensitivity: TBD
Pixel Size : 1.4µm x1.4µm
Maximum Ie Transfer Rate: 15 fps for QSXGA;
S/N Ratio: TBD
Dynamic Range: TBD
Package: CSP,Bare Die
Lens Type
Lens Construction: 4G1P IR
F/No: 2.4
EFL: 1.6mm
BFL(Optical): 2.5mm
FOV: 120 degree
TV Distortion: less than -35%
Relative Illumination (Sensor): 70%
IR Filter: 650 /- 10nm
DSP Type
AGC/AEC/Whiter balance: Auto
Output Formats: USB suspend out
Package: LQFN-40pin
Colour: black
Material: ABS
Size: 60mm x 8mm x 6.15mm
Package Contents:
1 x camera module
1 x USB cable
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is /- 1-3cm.
