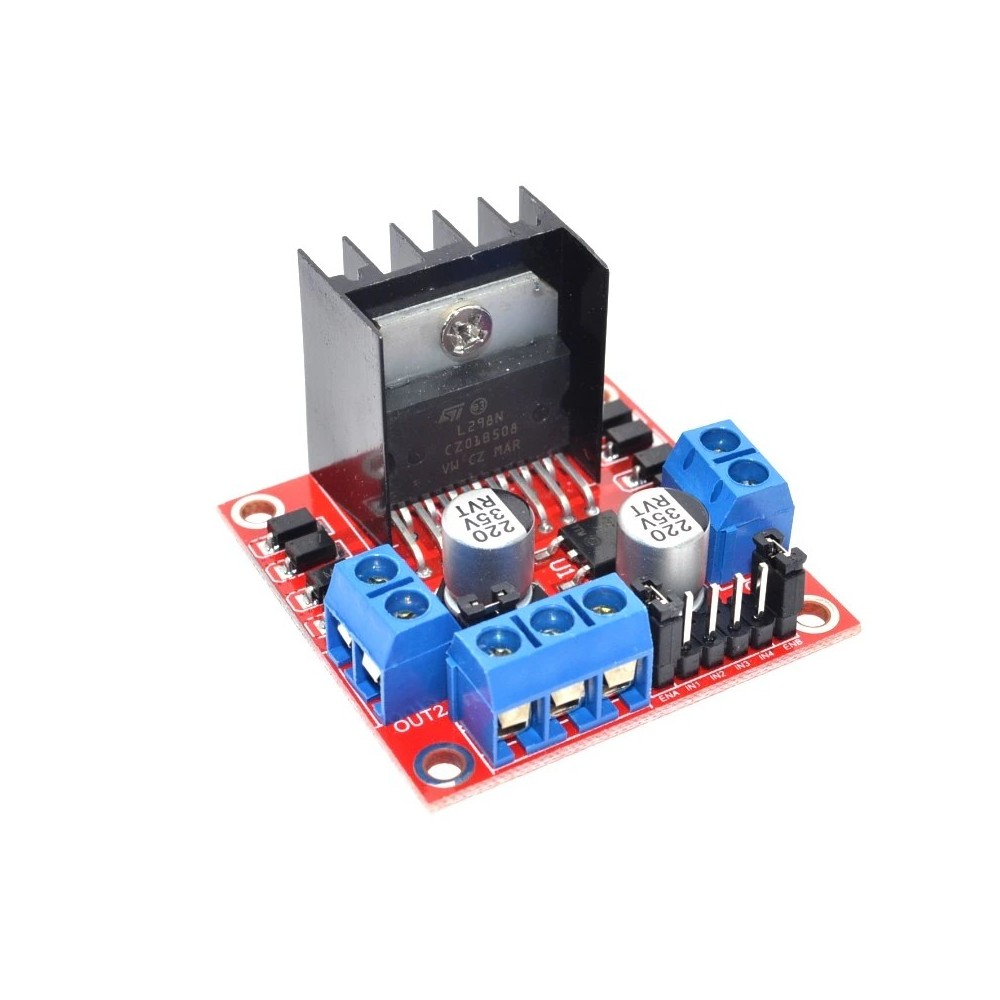

L298N új Dual H Bridge DC léptetőmotor meghajtó vezérlőkártya modul Arduino-hoz
L298N új Dual H Bridge DC léptetőmotor meghajtó vezérlőkártya modul Arduino-hoz
145 Ft
59,25% megtakarítás
355 Ft
Nincs adó
1PCS New Dual H Bridge DC Stepper Motor Drive Controller Board Module L298N for Ar-duino Free Shipping TK0450
Product description:
The L298N driver module, using ST L298N chip can directly drive two 3-30V DC motor, and provides a 5V output interface, you can chip circuitry to 5V power supply, support 33VMCU control, you can easily control the DC motor speed and direction, you can also control the 2-phase stepper motor, smart car essential
Product parameters:
1 Driver chip: L298N dual H-bridge driver chip
2 Terminal driver part of the supply area VMS: 5V ~ 35V
3 Drive part of the peak current Io: 2A / Bridge
4 Logical part of the terminal power supply range Vss :45-5 5V
5 Logical part of the operating current range: 0 ~ 36mA
6 The control signal input voltage range: 45-55V low 0V high
7 Maximum power consumption: 20W
8 Storage temperature: -25 ~ 130
9 Driver Board Size: 55mm * 60mm * 30mm
10 Driver board Weight: 33g
11 Other features: control direction indicator, power indicator, current detection, logical part of the plate to take power interface
Package Included:
1pcs X L298N Module
Product description:
The L298N driver module, using ST L298N chip can directly drive two 3-30V DC motor, and provides a 5V output interface, you can chip circuitry to 5V power supply, support 33VMCU control, you can easily control the DC motor speed and direction, you can also control the 2-phase stepper motor, smart car essential
Product parameters:
1 Driver chip: L298N dual H-bridge driver chip
2 Terminal driver part of the supply area VMS: 5V ~ 35V
3 Drive part of the peak current Io: 2A / Bridge
4 Logical part of the terminal power supply range Vss :45-5 5V
5 Logical part of the operating current range: 0 ~ 36mA
6 The control signal input voltage range: 45-55V low 0V high
7 Maximum power consumption: 20W
8 Storage temperature: -25 ~ 130
9 Driver Board Size: 55mm * 60mm * 30mm
10 Driver board Weight: 33g
11 Other features: control direction indicator, power indicator, current detection, logical part of the plate to take power interface
Package Included:
1pcs X L298N Module
