1 db 5 V alacsony szintű trigger Egy 1 csatornás relé modul interfész kártya pajzs PIC AVR DSP ARM MCU Arduino számára .

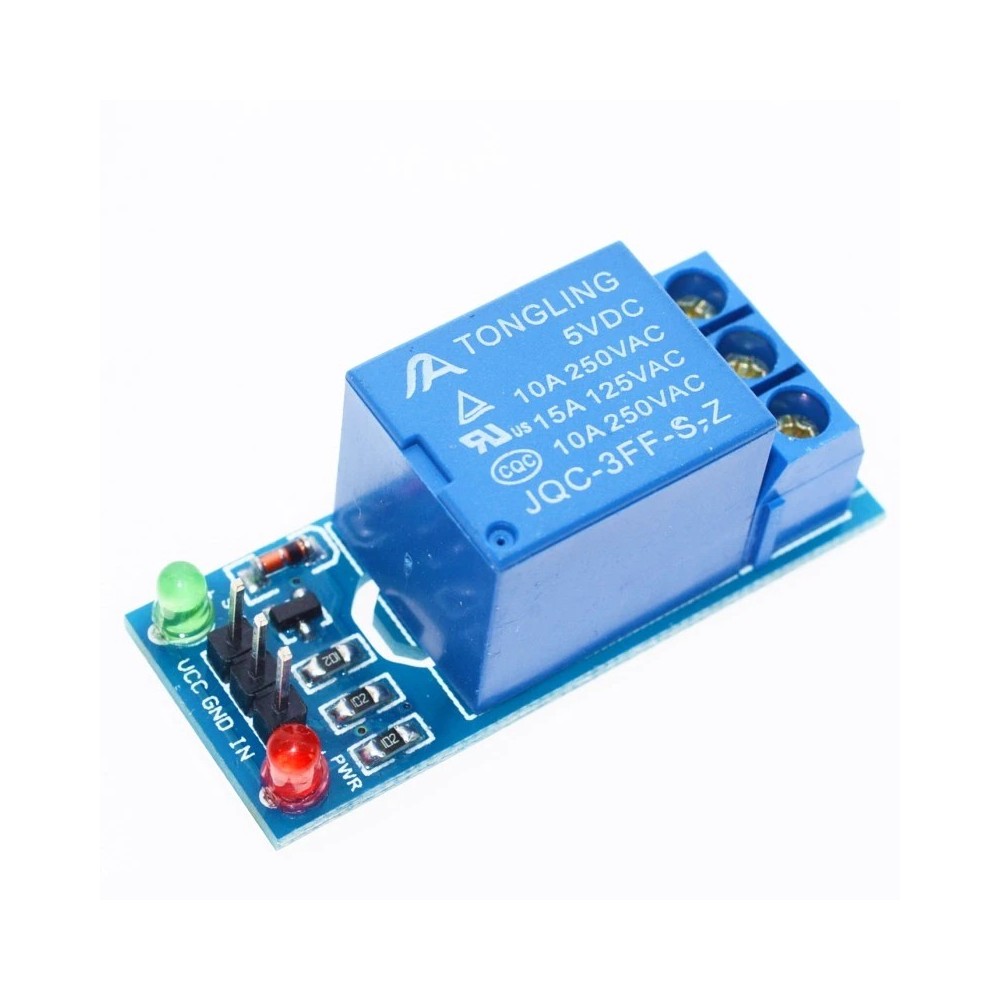

1PCS 5V low level trigger One 1 Channel Relay Module interface Board Shield For PIC AVR DSP ARM MCU Arduino .
35


Tracking info of  China Post Ordinary Small Packet Plus can be check here: www17tracknet/en



Product description:

1, The module complies with international safety standards, control area load area isolation groove;

2, Genuine relay Songle;

3, With the power and relay action instructions, pull bright disconnect does not shine;

4, When a signal in the signal input terminal, the common terminal and the normally start conduction;

5, Microcontroller development board can be used as a module that can be used as a home appliance control;

6, The control of the DC or AC signal, can control 220V AC load;

7, There is a normally open and a normally closed contact;

8, Blue KF301 terminals to the line of control is more convenient

Description of the high and low trigger, friends do not understand Take a look at:

High level trigger is a trigger voltage between the signal input and ground can be understood as a way of the signal input terminal and VCC cathode short trigger;

Low trigger means is the voltage between the signal input terminal and the ground for the OV trigger mode can be understood as a way of the signal input terminal and GND negative short trigger

Package include:
1 x 1 Channel 5V Relay Module
Packed Safely in Bubble Bag
