Egy 1 csatornás 5 V-os relémodul kártyapajzs optocsatoló támogatással, magas és alacsony szintű triggerrel az Arduino számára
One 1 Channel 5V Relay Module Board Shield with Optocoupler Support High and Low Level Trigger for Arduino
435
end

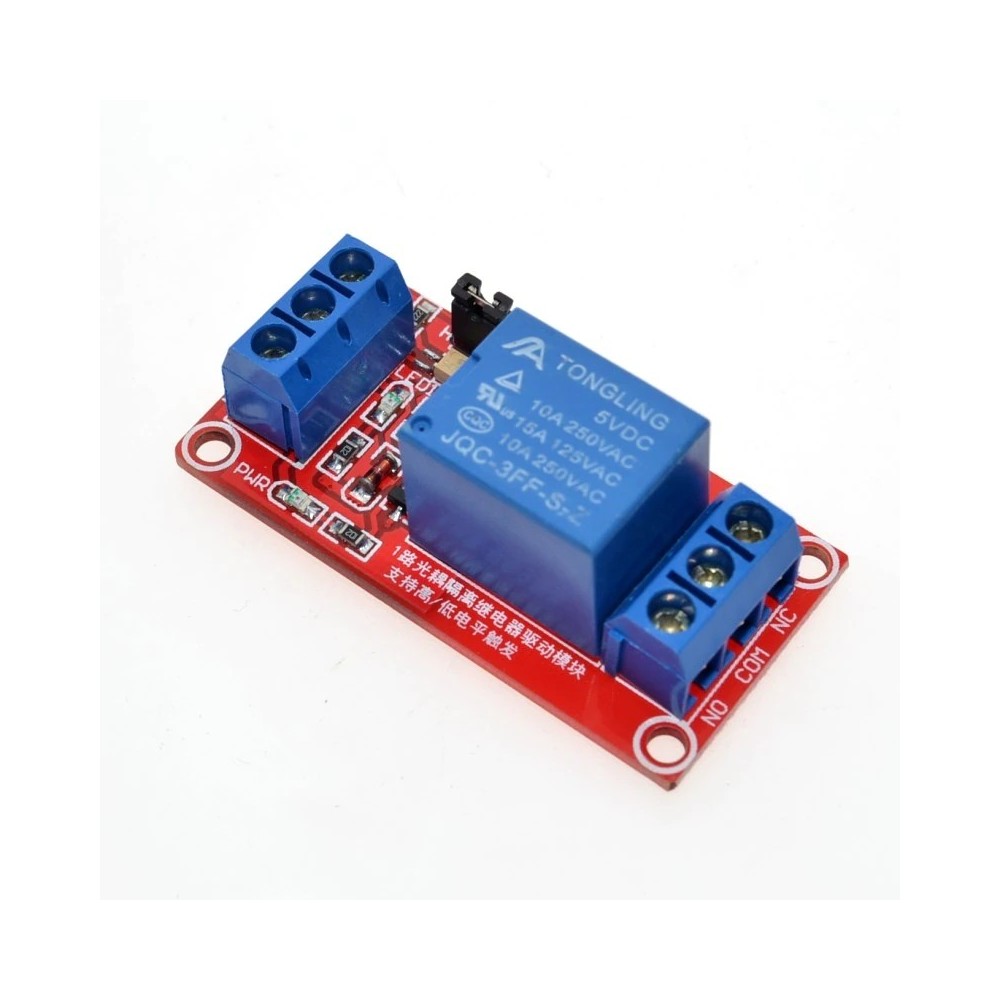

1 Channel High Low Level Triger Optocoupler 5V Relay Module

Description:
100% brand new and high quality
1-Channel relay module, with photoelectric isolation
The module can be high or low by a jumper setting trigger
With power and relay action indicator

The module Operating voltage 5V
The module uses genuine quality relay, normally open interfaces

Maximum load: AC 250V/10A, DC 30V/10A
Module interface:
    DC : positive power supply (VCC)(5V)
    DC-: negative power supply (GND)
    IN: The control end, the driving current should be more than 4mA
    COM: The control of loop of earth wire


Code:


    int RelayPin = 6;

    void setup()
    {
         pinMode(RelayPin,OUTPUT);
    }

    void loop()
    {
         char i;
         i = analogRead(5);
         if(i > 5)
         {
              digitalWrite(RelayPin,HIGH);
         }
         else
         {
              digitalWrite(RelayPin,LOW);
         }
    }

Package Included:
1 X 1 Channel relay module
