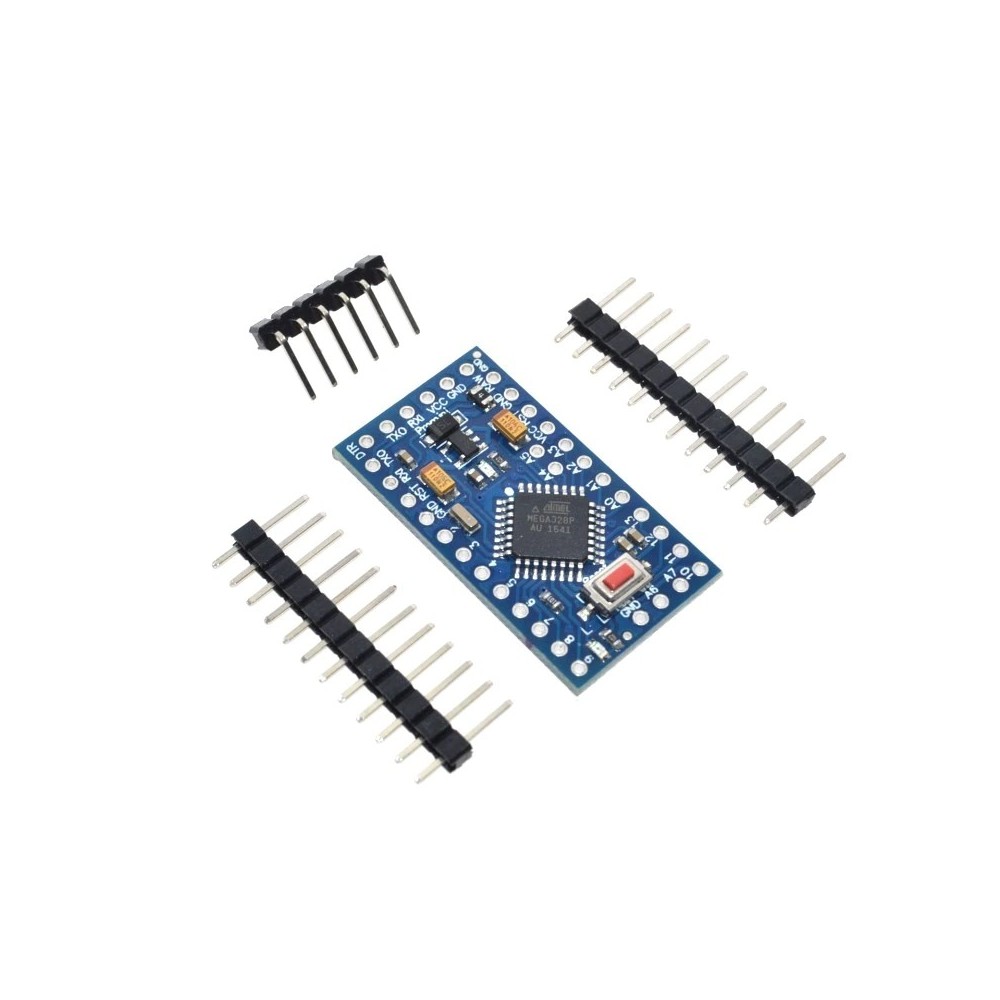

Új Atmega328 5v Version Pro Mini Modul 16M Arduino-kompatibilis
New Atmega328 5v Version Pro Mini Module 16M For Arduino Compatible

Description:It's blue! It's thin! It's the Arduino Pro Mini! SparkFun's minimal design approach to Arduino This is a 5V Arduino running the 16MHz bootloader Arduino Pro Mini does not come with connectors populated so that you can solder in any connector or wire with any orientation you need We recommend first time Arduino users start with the Uno R3 It's a great board that will get you up and running quickly The Arduino Pro series is meant for users that understand the limitations of system voltage (5V), lack of connectors, and USB off board
We really wanted to minimize the cost of an Arduino In order to accomplish this we used all SMD components, made it two layer, etc This board connects directly to the FTDI Basic Breakout board and supports auto-reset The Arduino Pro Mini also works with the FTDI cable but the FTDI cable does not bring out the DTR pin so the auto-reset feature will not work There is a voltage regulator on board so it can accept voltage up to 12VDC If you're supplying unregulated power to the board, be sure to connect to the “RAW” pin and not VCC
Features:
ATmega328 running at 16MHz with external resonator (05% tolerance)
08mm Thin PCB
USB connection off board
Supports auto-reset
5V regulator
Max 150mA output
Over current protected
Weighs less than 2 grams!
DC input 5V up to 12V
On board Power and Status LEDs
Analog Pins: 8
Digital I/Os: 14
