EGYSZERŰ ROBOT】LM2596s DC-DC fokozatmentes tápegység modul 3A állítható lecsökkentő modul LM2596 feszültségszabályozó 24V 12V 5V 3V

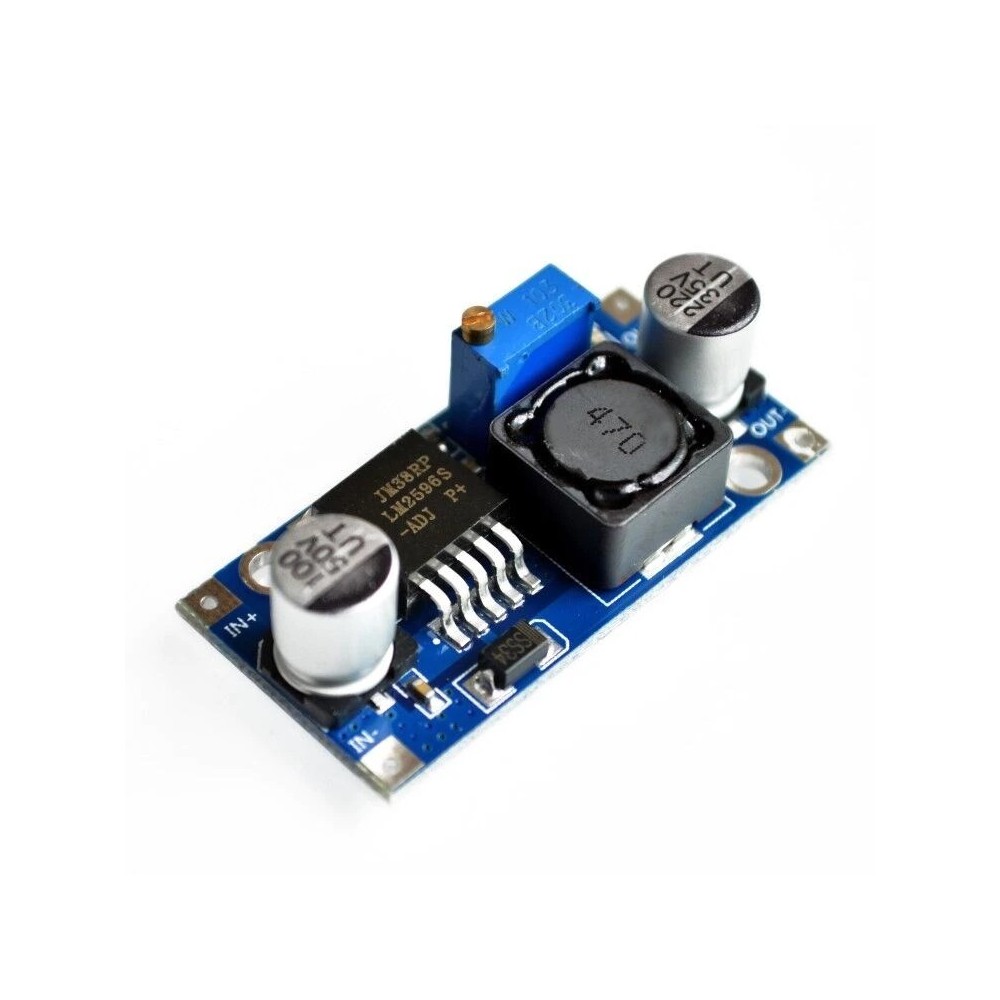

SIMPLE ROBOT】LM2596s DC-DC step-down power supply module 3A adjustable step-down module LM2596 voltage regulator 24V 12V 5V 3V

Parts NO.: LM2596 DC-DC
Package :
Quantity : 1pcs
Electronics Description :
Conversion efficiency: Up to 92% (output voltage higher, the higher the efficiency)
Switching Frequency: 150KHz
Rectifier: Non-Synchronous Rectification
Module Properties: Non-isolated step-down module (buck)
Short circuit protection: current limiting, since the recovery
Operating temperature: Industrial grade (-40 to 85 ) (output power 10W or less)
Full load temperature rise: 40
Load regulation: 0.5%
Voltage regulation: 2.5%
Dynamic response speed: 5% 200uS
Specification:
Input voltage:3-40V
Output voltage:1.5-35V(Adjustable)
Output current:Rated current is 2A,maximum 3A(Additional heatsink is required)
Dimension:45*20*14mm(L*W*H)
