CH341A 24 25 sorozatú EEPROM Flash BIOS USB programozó szoftverrel és meghajtóval

CH341A 24 25 sorozatú EEPROM Flash BIOS USB programozó szoftverrel és meghajtóval

177 Ft 58% megtakarítás
421 Ft
Nincs adó

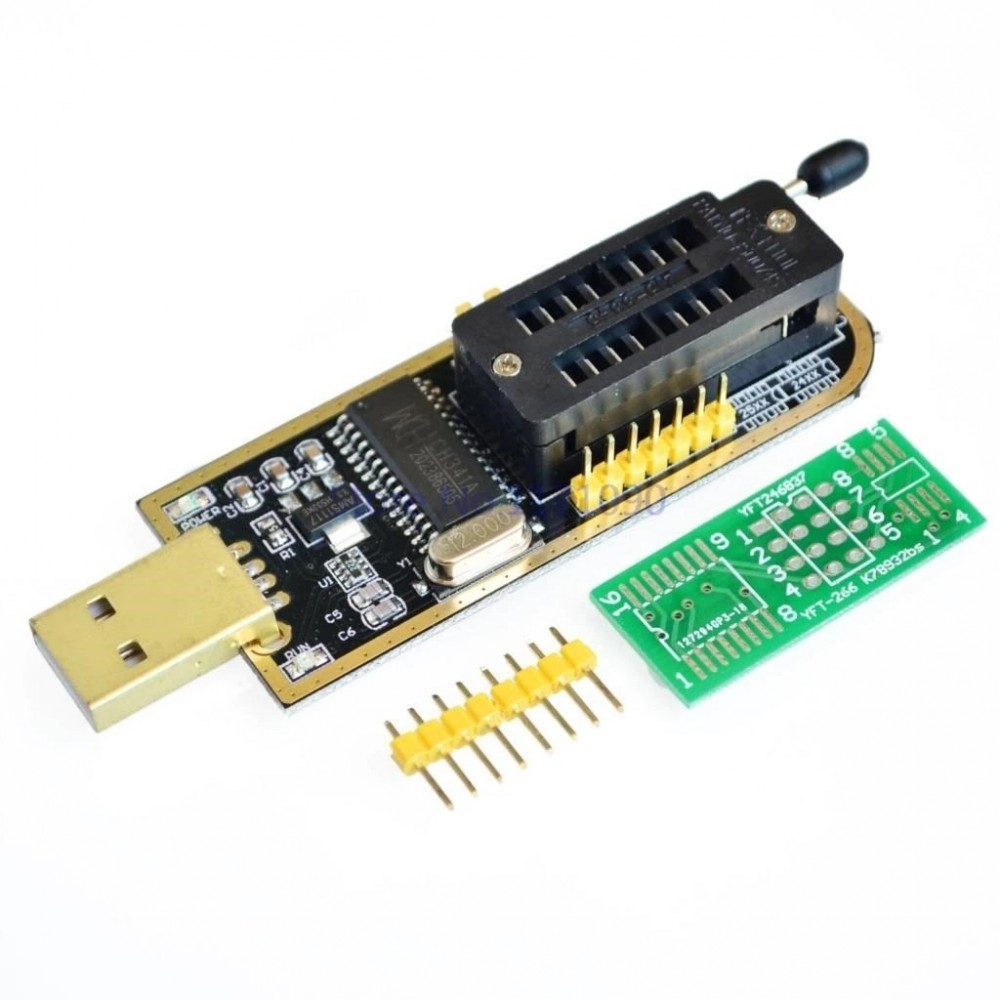

CH341A 24 25 Series EEPROM Flash BIOS USB Programmer with Software & Driver
Product Details:
USB Programmer
Condition: New
Support 24EEPROM and 25 SPI flash 8pin/16pin chip
USB to TTL port, can getroot online
With CH341A chip
Recognize 25 series chip automatically
And support download STC series procedure of singlechip
With 24/25 status indicator lamp
SPI pin to support expanding the utility
Color is shown as pictures
PLS NOTE that due to lighting effects, monitor's brightness/ contrass settings ect, there could be some slight differences in the color tone of the pictures and the actual item!
Package Included:
1 x USB Programmer
1 x Pinboard
 CH341A Driver download address: https://drive.google.com/open?id=1us2XLkDSgD_9jPmDEjGY1nvqdUSqTszg
Need to know before buy: some board can clip chip directly, but some board cannot operate like this, because the chip will be affected by the peripheral circuit on the board, please know before patting, lest buy back can't use, but the chip welding is quite a universal seat son can be used directly, and wide body, narrow body are universal.
Many high - power programmers are basically normal use

When encountering the programmer with protected function, the clamp cannot be read out under normal voltage. At this time, a 3.3v voltage should be added. The method is as follows: the clamp clamps the chip, and the clamp corresponding to the 8th pin of the chip adds a 3.3v voltage. Generally, the power supply of 3.3v has two wires, so it is ok for VCC to connect the clamp and the other wire to be directly grounded


Conversion block can use some chips is 1.8v such as huabang w25q64, wang hong mx25u1635, mx25u6435 and so on in 3.3v programmer for conversion burn. These chips are typically used on the motherboards of apple computers.
The main 1.8v chip applicable to the chip is the same:
winbond
W25q10ew, w25q20ew, w25q20bw, w25q40bw
In the macro
Mx25u5121e, mx25r512f, mx25u1001e, mx25r1035f, mx25u2033e, mx25r2035f, mx25u4035,
Mx25u4033e, mx25u4032e, mx25r4035f, mx25u8035, mx25u8035e, mx25u8033e,
Mx25r8035f, mx25u1635e, mx25v1635f, mx25v1635f,
Mx25r3235f, mx25u6473f, mx25u6435f, mx25r6435f, mx25u12873f, mx25u12835f,
Mx25u25635f, mx25u51245g, mx25um51245g, mx66u51235f
