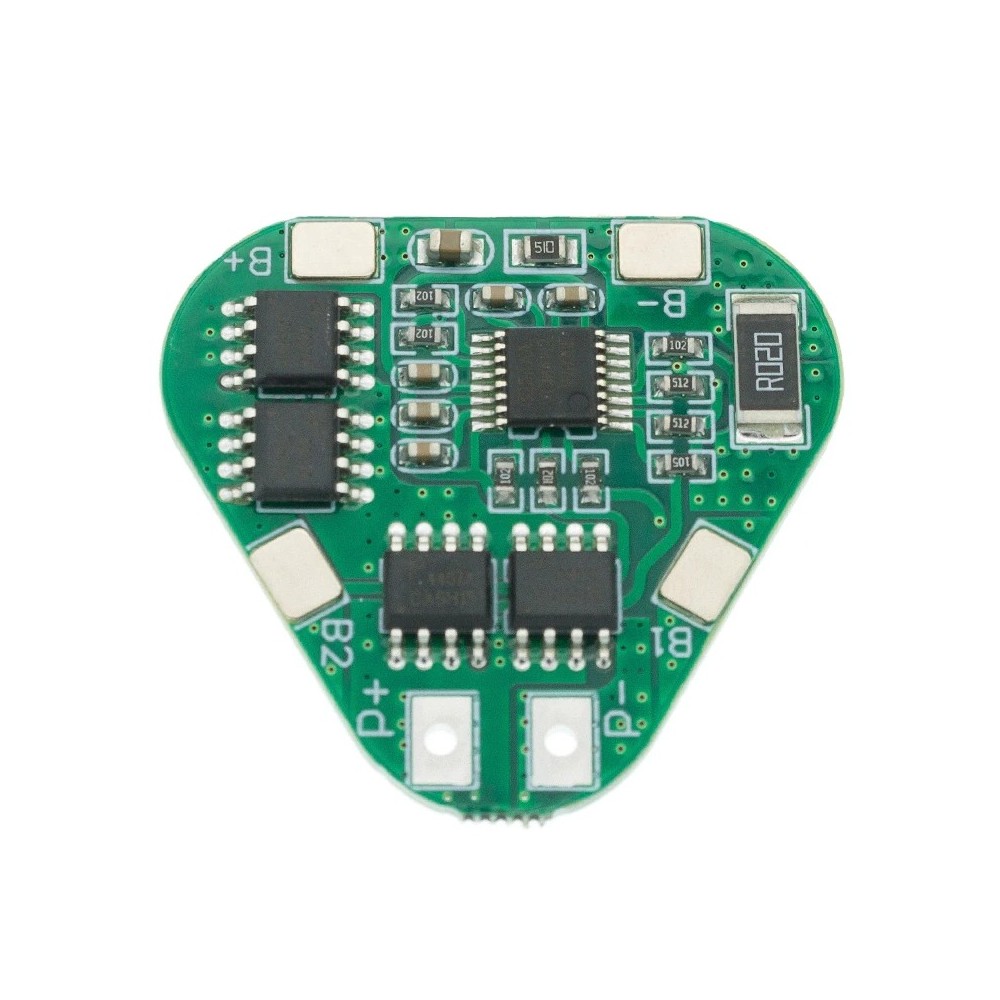

Szín: 3S 8A - 10 DB 3S 12V 18650 Lithium Battery Protection Board 11.1V 12.6V Túltöltés Túlkisülés Protect 8A 3 Cell Pack
Szín: 3S 8A - 10 DB 3S 12V 18650 Lithium Battery Protection Board 11.1V 12.6V Túltöltés Túlkisülés Protect 8A 3 Cell Pack
1 060 Ft
59,25% megtakarítás
2 601 Ft
Nincs adó
The properties of the lithium battery protection board:
Model: HX-3S-03
Overcharge voltage range: 4.25-4.35v±0.05v
Size: 30*30*2.8mm
Over-discharge voltage range: 2.3-3.0v±0.05v
Upper limit working current: 6-8A
Working temperature: -40--- 50 °C
Upper limit instantaneous current: 9-10A
Storage conditions: -40-- 80 ° C
Quiescent current: less than 30uA
Effective life: more than 30,000 hours
Internal resistance: less than 100mΩ
Short circuit protection: protection, delay self-recovery.
Charging voltage: 12.6V-13V
Model: HX-3S-03
Overcharge voltage range: 4.25-4.35v±0.05v
Size: 30*30*2.8mm
Over-discharge voltage range: 2.3-3.0v±0.05v
Upper limit working current: 6-8A
Working temperature: -40--- 50 °C
Upper limit instantaneous current: 9-10A
Storage conditions: -40-- 80 ° C
Quiescent current: less than 30uA
Effective life: more than 30,000 hours
Internal resistance: less than 100mΩ
Short circuit protection: protection, delay self-recovery.
Charging voltage: 12.6V-13V
