- -58,5%
Nincs szín - 40db 300V 16A kék NYÁK szerelőlap 2 tűs csavaros sorkapocs csatlakozó alkatrészek
Nincs szín - 40db 300V 16A kék NYÁK szerelőlap 2 tűs csavaros sorkapocs csatlakozó alkatrészek
236 Ft
58,5% megtakarítás
568 Ft
Nincs adó

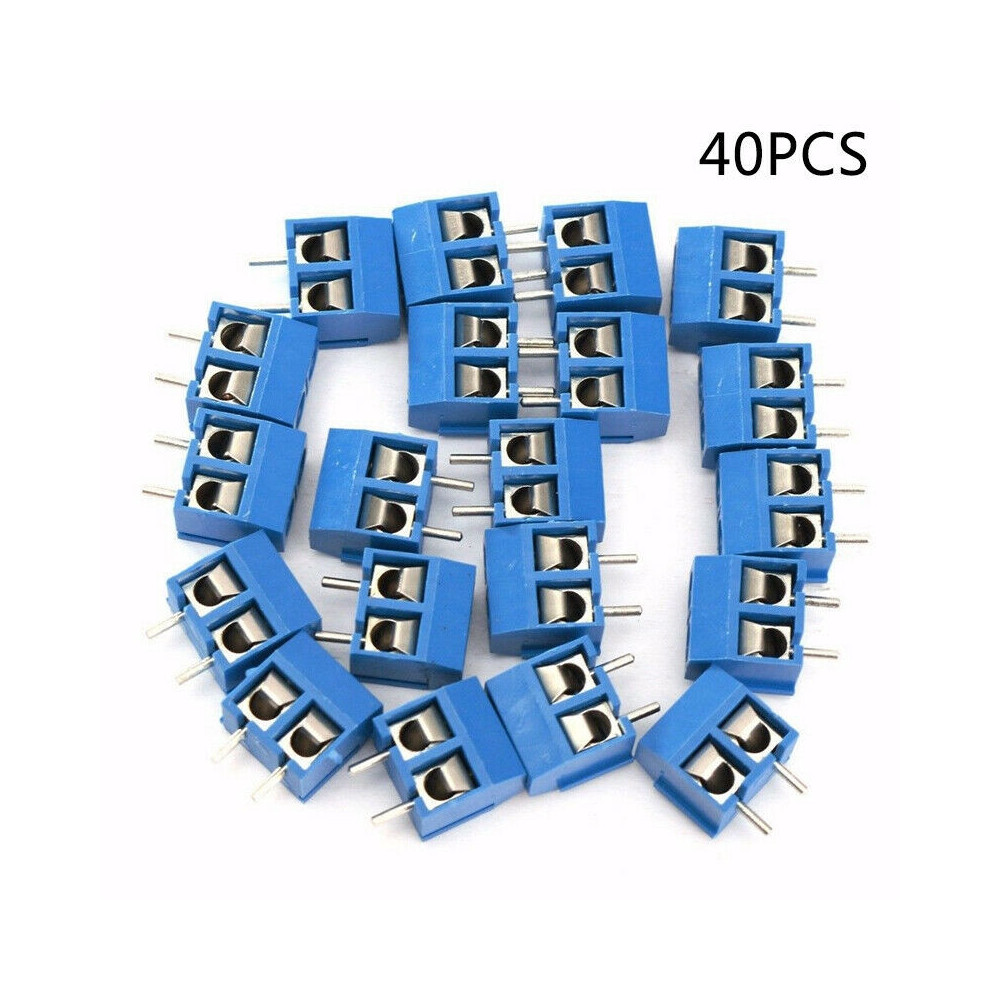

40pcs 300V 16A Blue PCB Mount Panel 2-Pin Screw Terminal Block Connector Parts
Item Details:
*40pcs Blue 2-Pin 5.08mm Pitch Screw Terminal Block Connectors
*Convenient to connect wires
*Suitable for electric industry
*Stable performance, durable and reliable to use
*100% brand new and high quality
*Housing Material: PBT, UL94V-0
*Contact Material: Phosphor Bronze Ni Plated or Stainless Steel
*Pin Header Material: Brass, Tin Plated
*Screw Material: M2.5 Steel Zinc Plated
*Color: Blue (As Pictures Show)
*Pitch: 5.08mm
*Poles: 2P
*Rated Voltage: 300V
*Rated Current: 16A
*Contact Resistance: 20mΩ
*Insulation Resistance: 5000MΩ/1000V
*Withstanding Voltage: AC1500V/1Min
*Temperature Range: -30~1200C
*Max. Soldering: 2500C for 5 Sec
*Torque: 0.5Nm
*Quantity: 40pcs
Package Contents:
40pcs Terminal Blocks
Note: The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
Item Details:
*40pcs Blue 2-Pin 5.08mm Pitch Screw Terminal Block Connectors
*Convenient to connect wires
*Suitable for electric industry
*Stable performance, durable and reliable to use
*100% brand new and high quality
*Housing Material: PBT, UL94V-0
*Contact Material: Phosphor Bronze Ni Plated or Stainless Steel
*Pin Header Material: Brass, Tin Plated
*Screw Material: M2.5 Steel Zinc Plated
*Color: Blue (As Pictures Show)
*Pitch: 5.08mm
*Poles: 2P
*Rated Voltage: 300V
*Rated Current: 16A
*Contact Resistance: 20mΩ
*Insulation Resistance: 5000MΩ/1000V
*Withstanding Voltage: AC1500V/1Min
*Temperature Range: -30~1200C
*Max. Soldering: 2500C for 5 Sec
*Torque: 0.5Nm
*Quantity: 40pcs
Package Contents:
40pcs Terminal Blocks
Note: The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
