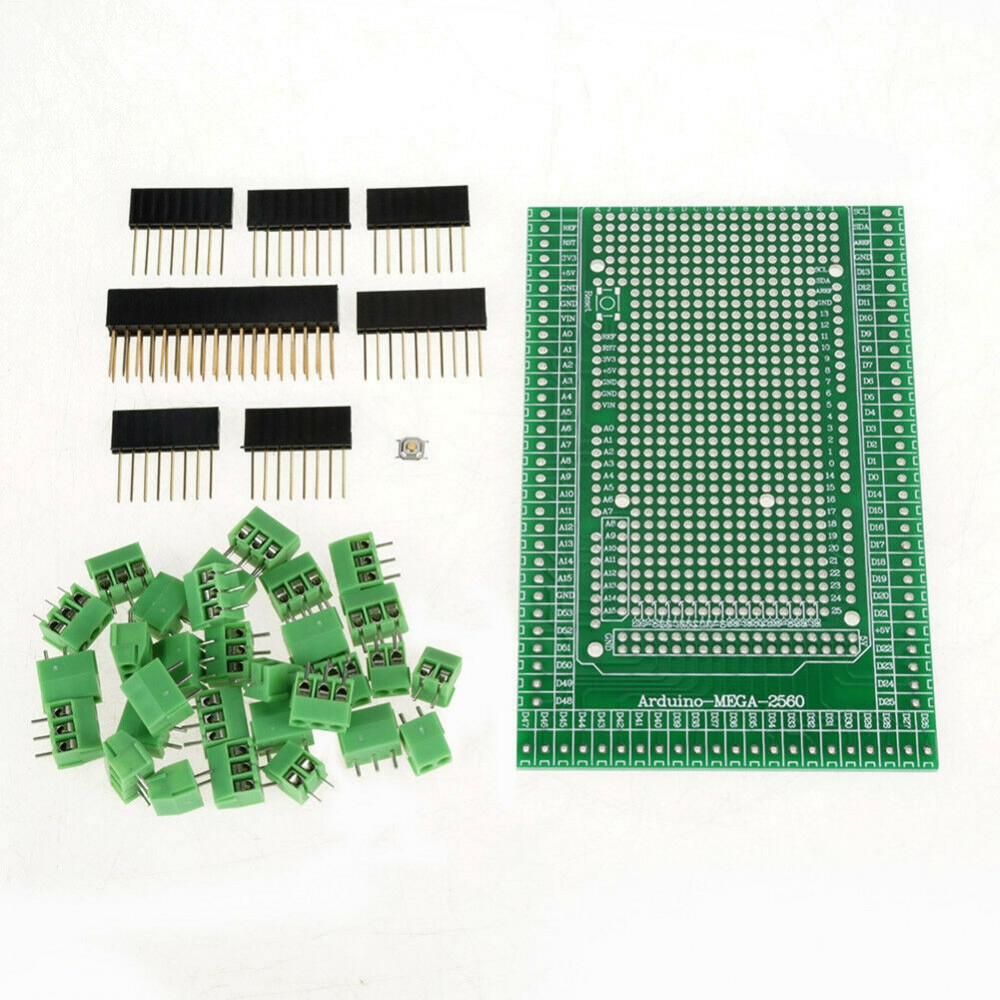

Nincs szín - 1 készlet MEGA-2560 R31 prototípus csavaros sorkapocs-védőlemez készlet
Nincs szín - 1 készlet MEGA-2560 R31 prototípus csavaros sorkapocs-védőlemez készlet
487 Ft
59% megtakarítás
1 187 Ft
Nincs adó
Features:
100% Brand new and high quality
The kit contains Prototype , Terminal Blocks, Female Header Sockets.
Compact structure, made up of screw terminal block, high quality carrier, FR-4 fiber .
This Terminal Module is made of high quality material and by delicate workmanship treatment, with long serving life
Not assembled, variety mount methods, you can make flexible use.
Specifications:
:
size 12.024 x 7.72cm/4.73 x 3.04inch
Pads grid / pitch: 2.54mm / 0.1", hole diameter 0.8mm.
Terminal block pitch: 3.5mm / 0.138", hole diameter 1.2mm.
Terminal Block:
Pitch: 3.5mm / 0.138" mini terminal blocks, total 84 pins(3pole x24pcs,2pole x6pcs).
Wire range: 26~16AWG, strip length 5mm, screws M2 steel, pin header and cage brass.
Female Header Socket:
Pitch: 0.1"/2.54mm, pin length 15mm / 0.59"
Single row 10pin x1pcs, single row 8pin x 5pcs, dual row 18pin x1pcs
Weight:73g
Package includes:
1 set x Terminal Block Shield Board Kit
100% Brand new and high quality
The kit contains Prototype , Terminal Blocks, Female Header Sockets.
Compact structure, made up of screw terminal block, high quality carrier, FR-4 fiber .
This Terminal Module is made of high quality material and by delicate workmanship treatment, with long serving life
Not assembled, variety mount methods, you can make flexible use.
Specifications:
:
size 12.024 x 7.72cm/4.73 x 3.04inch
Pads grid / pitch: 2.54mm / 0.1", hole diameter 0.8mm.
Terminal block pitch: 3.5mm / 0.138", hole diameter 1.2mm.
Terminal Block:
Pitch: 3.5mm / 0.138" mini terminal blocks, total 84 pins(3pole x24pcs,2pole x6pcs).
Wire range: 26~16AWG, strip length 5mm, screws M2 steel, pin header and cage brass.
Female Header Socket:
Pitch: 0.1"/2.54mm, pin length 15mm / 0.59"
Single row 10pin x1pcs, single row 8pin x 5pcs, dual row 18pin x1pcs
Weight:73g
Package includes:
1 set x Terminal Block Shield Board Kit
