Írisz - Rozsdamentes acél nyomógombos kapcsoló IK10 W / Pigtail foglalat vezérlő Új hasznos
Írisz - Rozsdamentes acél nyomógombos kapcsoló IK10 W / Pigtail foglalat vezérlő Új hasznos
205 Ft
57% megtakarítás
477 Ft
Nincs adó

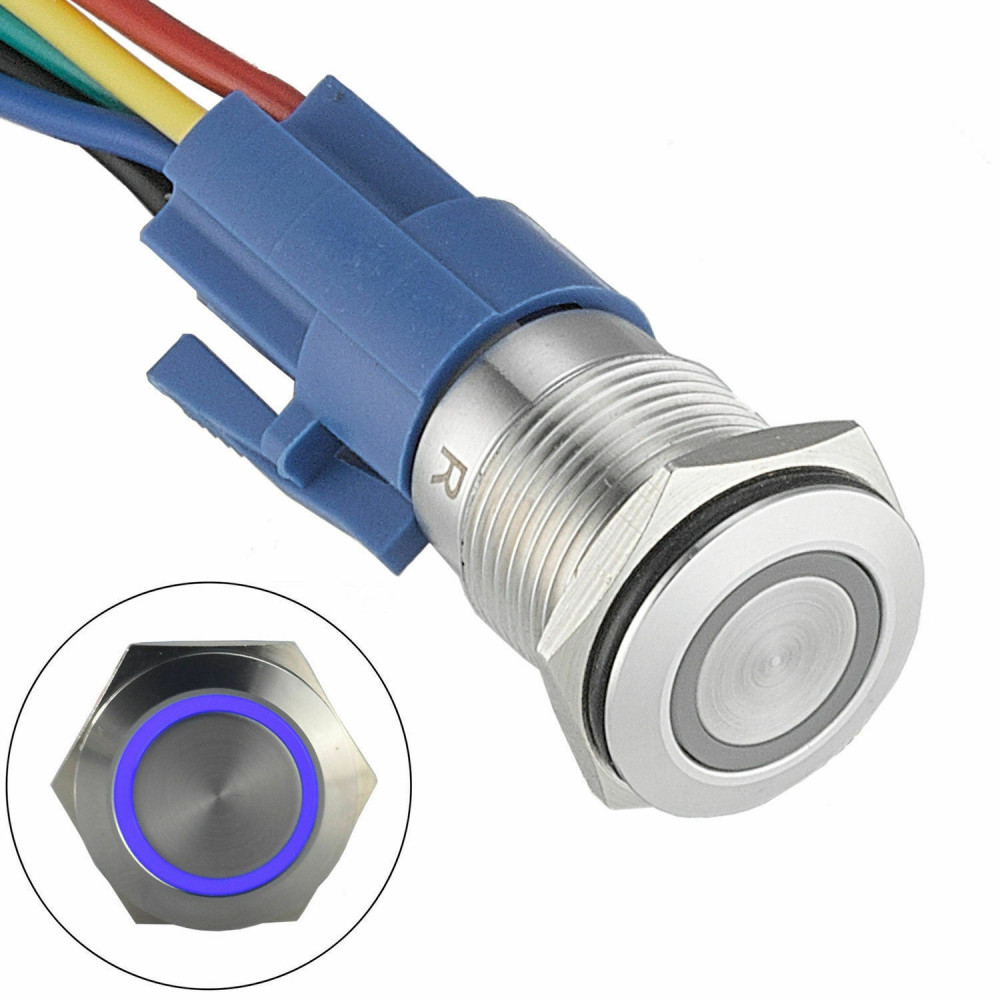

Stainless Steel Push Button Switch IK10 W/ Pigtail Socket Controller New Useful
Item Details:
*100% brand new and high quality
*Brand New Silver Stainless Steel Ring LED Pushbutton Switch
*High quality metal material & IP65 waterproof protection can be used in wet or dusty enviroment.
*Optional Color: Iris; Red; Green; White; Yellow(As Pictures Show)
*LED voltage: 12V only
*Hole size required: 0.63''/16mm(Approx)
*Latching switch: Push it, ON; Push it again, OFF.
*Touch Configuration: 1NO1NC
*Switch rating: 5A / 250VAC
*Working temperature: -20~ 55degree Celsius
*Mechanical life: 1,000,000 cycles
*Electrical life: 200,000 cycles
*Panel thickness: 1-10mm(Approx)
*Protection level: IP65, IK10
*Operation type: Latch
*LED rating: 15mA, AC / DC 12V
*LED pattern: Ring indicator
*Touch material: Silver alloy
*Button material: Stainless Steel
Package Contents:
1*Push Button Switch
1*Pigtail Socket
Note:
1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
2. Please allow slight manual measurement deviation for the data.
Item Details:
*100% brand new and high quality
*Brand New Silver Stainless Steel Ring LED Pushbutton Switch
*High quality metal material & IP65 waterproof protection can be used in wet or dusty enviroment.
*Optional Color: Iris; Red; Green; White; Yellow(As Pictures Show)
*LED voltage: 12V only
*Hole size required: 0.63''/16mm(Approx)
*Latching switch: Push it, ON; Push it again, OFF.
*Touch Configuration: 1NO1NC
*Switch rating: 5A / 250VAC
*Working temperature: -20~ 55degree Celsius
*Mechanical life: 1,000,000 cycles
*Electrical life: 200,000 cycles
*Panel thickness: 1-10mm(Approx)
*Protection level: IP65, IK10
*Operation type: Latch
*LED rating: 15mA, AC / DC 12V
*LED pattern: Ring indicator
*Touch material: Silver alloy
*Button material: Stainless Steel
Package Contents:
1*Push Button Switch
1*Pigtail Socket
Note:
1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
2. Please allow slight manual measurement deviation for the data.
