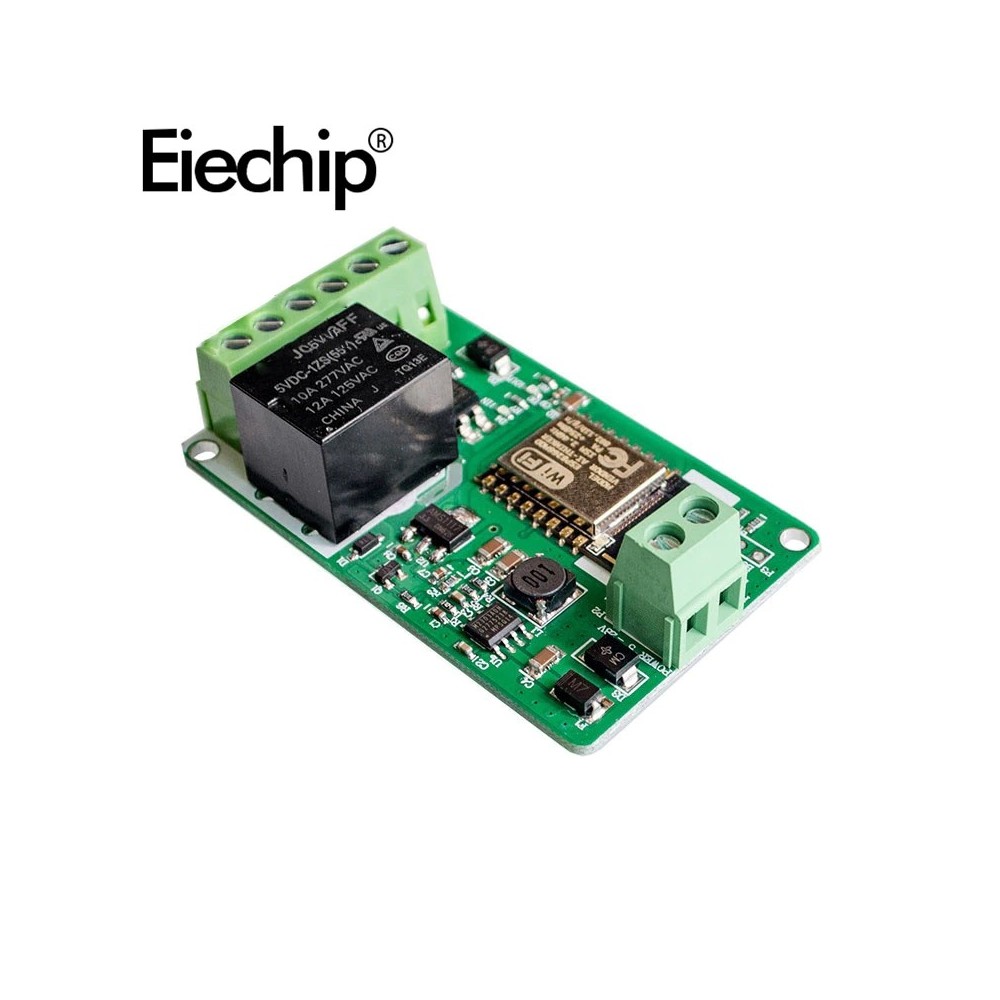

ESP8266 WIFI relé modul DC 7V - DC 30V Hálózati relé 65mmx40mmx20mm modul
ESP8266 WIFI relé modul DC 7V - DC 30V Hálózati relé 65mmx40mmx20mm modul
265 Ft
58% megtakarítás
632 Ft
Nincs adó
Wide voltage input, input voltage: DC 7V-DC 30V.
Input overvoltage protection, input with TVS, voltage over 33V, automatic protection.
Input overcurrent protection.
220V 10A relay, one normally open, one normally closed, the relay parameters are as follows:
One optocoupler isolation input, the input is protected by TVS.
High current terminal.
One output status indicator, and one input status indicator.
The PCB foot of the relay is designed with anti-creeping electricity, which is safer.
It can be accessed to server control through TCP CLIENT.
Can be controlled through HTTP protocol.
The overall dimensions of the board are 65mm × 40mm × 20mm.
Input overvoltage protection, input with TVS, voltage over 33V, automatic protection.
Input overcurrent protection.
220V 10A relay, one normally open, one normally closed, the relay parameters are as follows:
One optocoupler isolation input, the input is protected by TVS.
High current terminal.
One output status indicator, and one input status indicator.
The PCB foot of the relay is designed with anti-creeping electricity, which is safer.
It can be accessed to server control through TCP CLIENT.
Can be controlled through HTTP protocol.
The overall dimensions of the board are 65mm × 40mm × 20mm.
