-kompatibilis 5.0 zenei erősítő modul audio vevő BT5.0 MP3 veszteségmentes dekóder tábla vezeték nélküli sztereó lejátszó tok
-compatible 5.0 Music Amplifier Module Audio Receiver BT5.0 MP3 Lossless Decoder Board Wireless Stereo Player Case
Description:
BT5.0 Audio continues the excellent basic functions of M28 (long-distance transmission, 5.0 backward compatible, lossless sound quality, etc.), and adds more user-friendly performance, as follows: Charge while putting: This product has a circuit of charging and discharging, which can directly charge the battery through the USB power supply, and can continue to work normally during the charging process, and truly realize the function of charging and discharging. Solve the pain point that some products can not be used during the charging process. When powered by USB alone: The red light flashes, indicating that the power supply is normal. When powered by a separate battery: The yellow light is always on, indicating that the battery power supply is normal; the yellow light flashes, indicating that the battery is low. When the USB and battery are connected at the same time: The red light flashes to indicate that the battery is charging; the red light always indicates that the battery is fully charged. (Note that if the USB input is suddenly disconnected during the charging and discharging process, there will be a few seconds of interruption due
to the charge and discharge mode switching at this time, after which will automatically restart, automatically connect and maintain the previous playback state) Incoming voice call function: After the is connected, turn on the call audio mode in the settings. If the phone calls, you can answer or hang up the phone through the PLAY/STOP button. You can choose to send from the microphone of the headset (provided that the headset has a call function, which is a 4-segment type) or from the onboard microphone (default), see the function description for details. When the computer sound card is used: Tin the pads in the two boxes corresponding to the Sound Card on the back of the module, and then connect it to the USB interface of the computer through the USB cable, which can be used as a sound card. That is, the sound played by the computer is output through the audio interface of the module. See function description for details. (Not enabled by default) Product Size:
Specifications:
Product Features:
BT5.0 Audio continues the excellent basicfunctions
of BT5.0 Audio (long-distance transmission,
5.0 backward compatible, lossless soundquality, etC.),
And adds more user-friendly performance, as follows:
Charge while putting:
This product has a circuit of charging and discharging which
can directly charge thebattery through the USB power supply.
and can continue to worknormally during the
charging process, and truly realize the function of charging
and discharging. Solve the pain point that some products
can not be used during the charging process.
When powered by USB alone: The red light flashes, indicating
that the power supply is normal.
When powered by a separate battery:
The yellow light is alwayson, indicating that the battery power supply is normal; theyellow light flashes,indicating that the battery is low.
When the USB and battery are connected at the same time:
The redlight flashes to indicate that the battery is charging;
the red light always indicates that the battery is fully charged.
(Note that if the USB input is suddenly disconnected during
the charging and discharging process, there will be a few seco
nds of interruption due to the charge and discharge mode
switching at this time, after which will automatically
restart, automatically connect and maintain the previous
playback state)
Incoming voice call function:
After the is connected, turn on the call audio modein the
settings. If the phone calls, you can answer or hang up the phone
through the PLAY/STOP button. You can choose to send from the
microphone of the headset (provided that the headset has a call
function, which is a 4-segment type) or from the onboard microphone
(default), see the function description for details.
When the computer sound card is used:
Tin the pads in the two boxes corresponding to the Sound Card on the
back of the module, and then connect it to the USB interface of the
computer through the USB cable, which can be used as a sound card.
That is, the sound played by the computer is output through the audio
interface of the module. See function description for details.
(Not enabled by default)
Package Included:

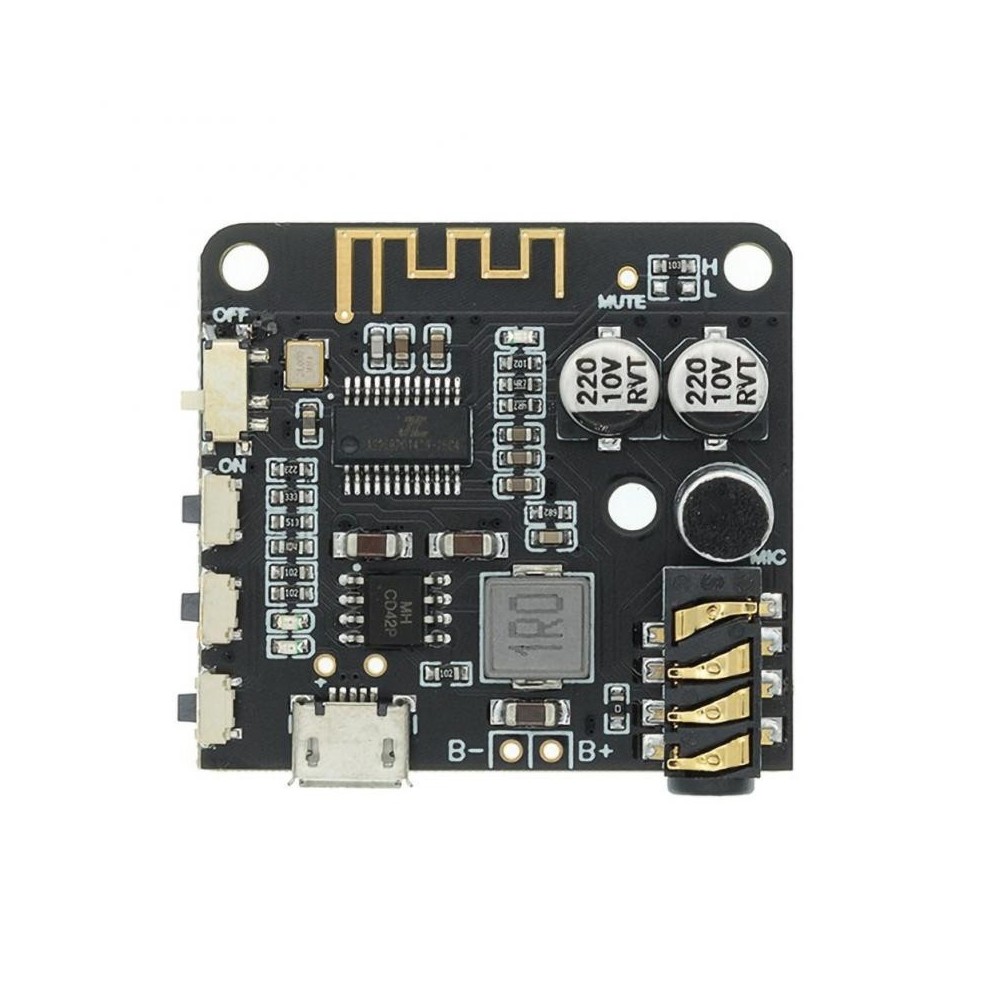

1*Audio Board
