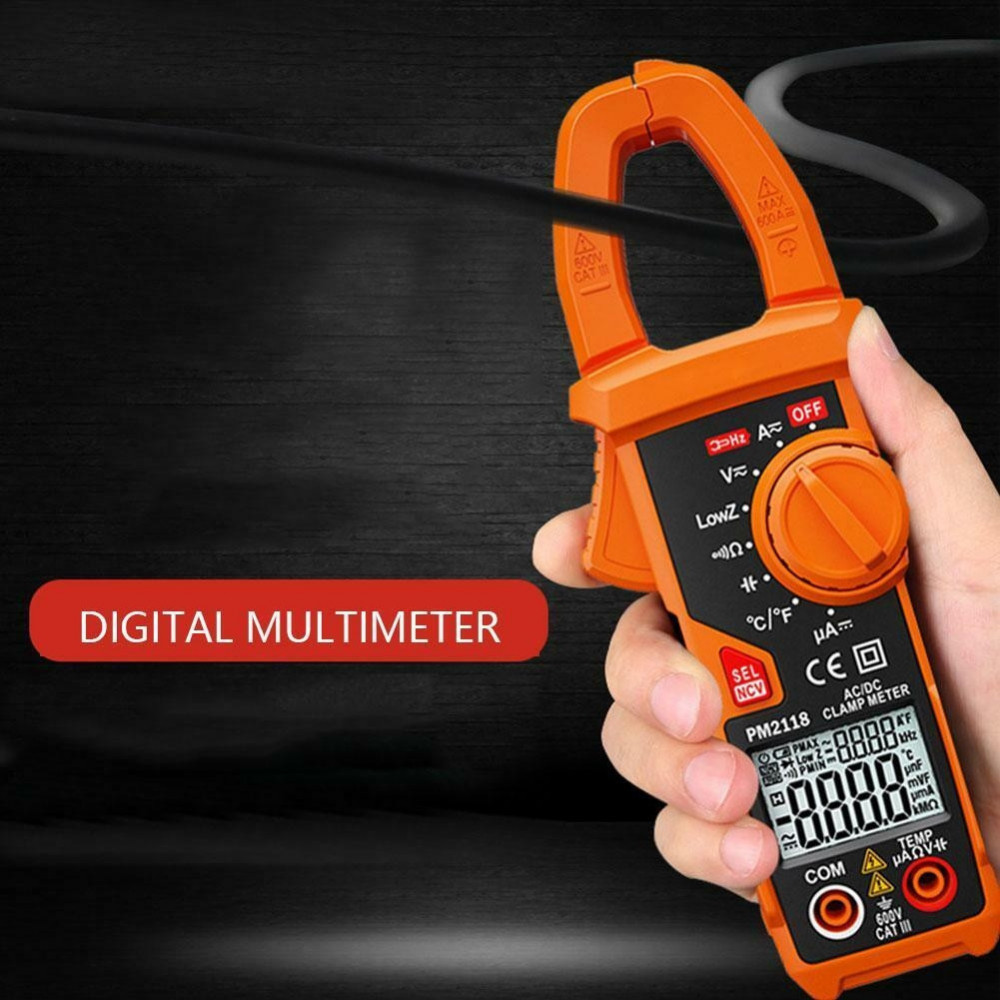

PEAKMETER PM2118 Auto Range AC DC Clamp Multimeter Resistance Capacitance Tester
Features:
1. This is a clamp multimeter to accurately measure AC DC current/voltage, frequency, resistance, capacitance and temperature.
2. 6000 counts LCD screen displays the measuring data clearly and intuitively.
3. 8 selection manual function knob.
4. Non-contact voltage (NCV) detection, safe and practical.
5. More functions: Continuity test, data hold, low battery indication, auto power off and more.
Specification:
Specification Range Accuracy
DC Voltage 0-660.0V ±(0.5% 3)
AC Voltage(40-65Hz) 0.01-600.0V ±(0.8% 5)
DC Current 10mA-400A ±(3% 3)
400A-600A ±(3.5% 3)
AC Current(40-65Hz) 100mA-400A ±(2.5% 5)
400A-600A ±(3% 5)
Resistance 0-60MΩ ±(0.8% 3)
Capacitance 0.1uF-6000uF ±(3% 3)
Frequency 40Hz-1000Hz
Continuity <30Ω
Low Impedance Voltage 1.0-600V ±(0.8% 3)
DC Current uA 0-200uA ±(0.8% 3)
Temperature -40~1000℃ ±(1% 2)
-40~1832℉ ±(1% 2)
Feature
Display 6000 counts
Auto Range Yes
AC Current 60A/600A
DC Current 60A/600A
AC Voltage 600mV/6V/60V/600V
DC Voltage 6V/60V/600V
Resistance 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ
Frequency(Clamp) 1kHz
Frequency(Voltage)
1kHz
LPF(1kHz-3dB) Yes
Capacitance 600uF/6000uF
Data Hold Yes
Backlight Yes
NCV Yes
Low Battery Indication
Yes
Auto Power Off
Yes
Dual DIsplay Yes
General Parameter
Brand
PEAKMETER
Model
PM2118
Power Supply 2 x 1.5V AAA batteries (NOT included)
Size 187*65*38mm / 7.3*2.5*1.5in
Package Weight
Approx. 357g/12.6oz
Package list:
1 * Clamp Multimeter
2 * Test Probes
1 * Thermocouple
1 * Black Bag
Note:
1. Due to the difference between monitors and light effects, the pictures may not reflect the actual color of the item.
2. Please allow 1-3mm error due to manual measurement. Thanks for your understanding.
